Front Door Panel: Service and Repair

Front Door Trim Panel

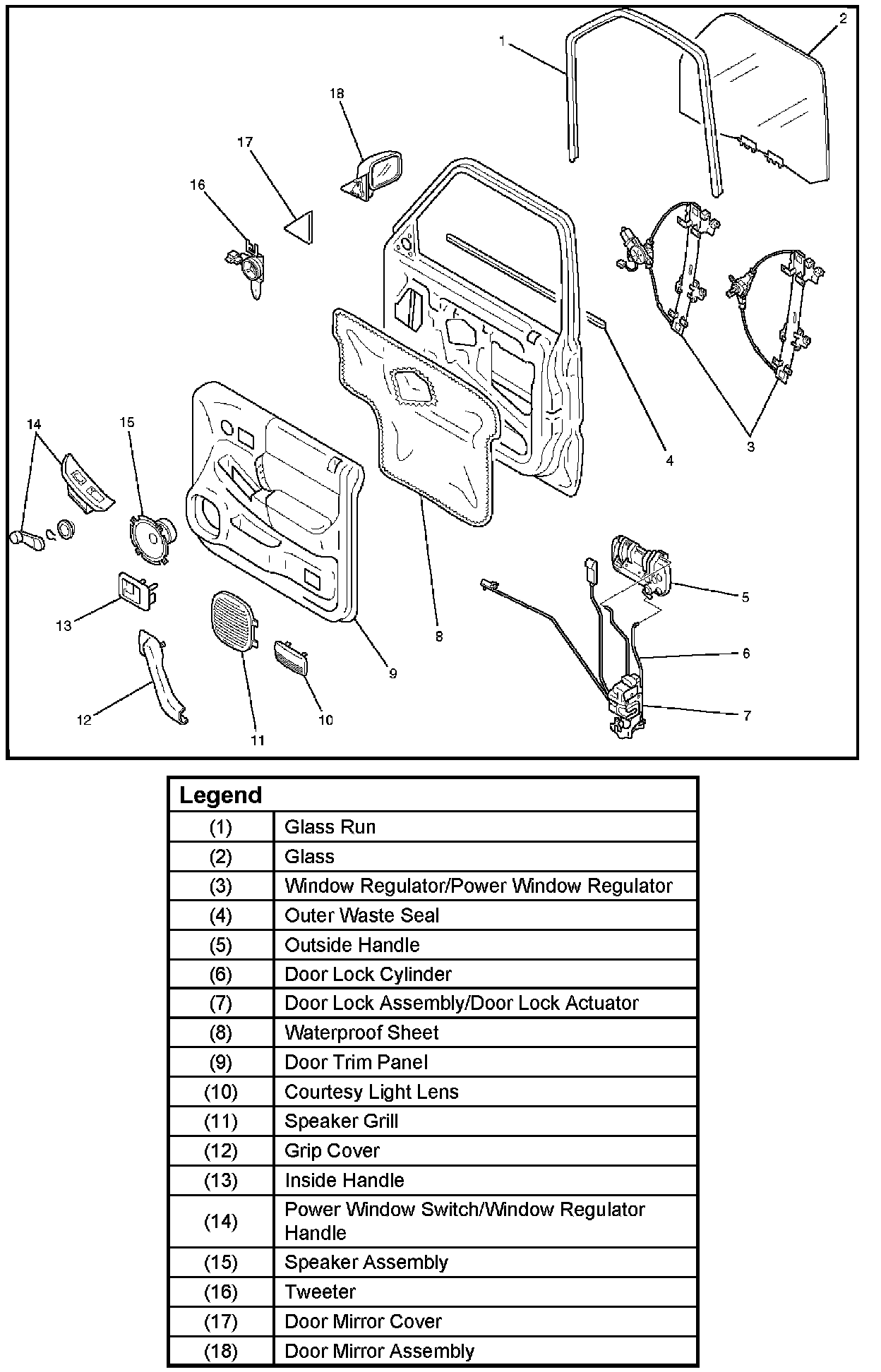

Front Door Trim Panel And Associated Parts:

Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror assembly.

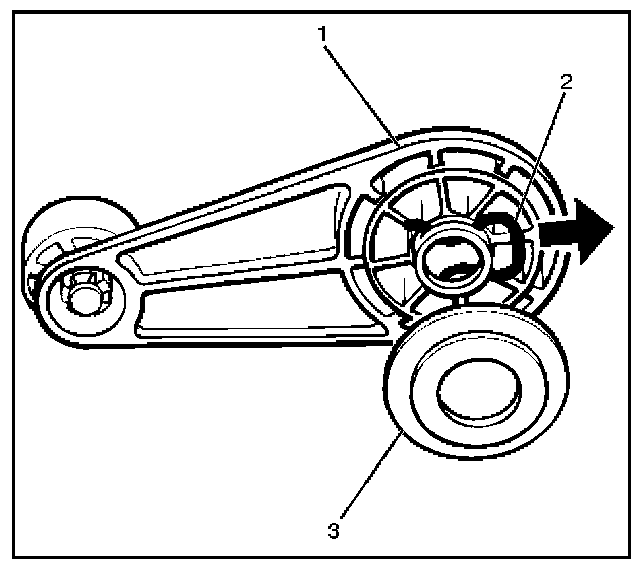

3. Remove the regulator handle (1).
- Pull the hook (2) out and remove the regulator handle.







4. Remove the power window switch (1).
- Pry the power window switch out and disconnect the switch connector.







5. Remove the speaker cover.
6. Remove the front speaker.
- Remove the front speaker fixing screws in order to disconnect the speaker connector.

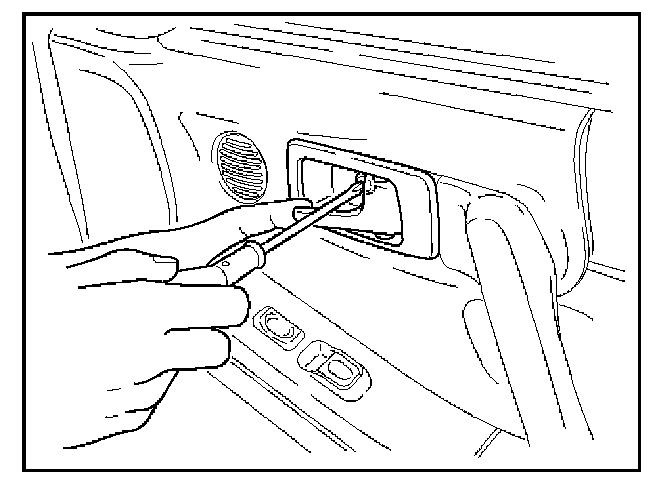

7. Remove the inside handle fixing screw.

CAUTION: Do not apply excessive force on the inside handle link or damage may occur, which could make the inside handle difficult to operate.

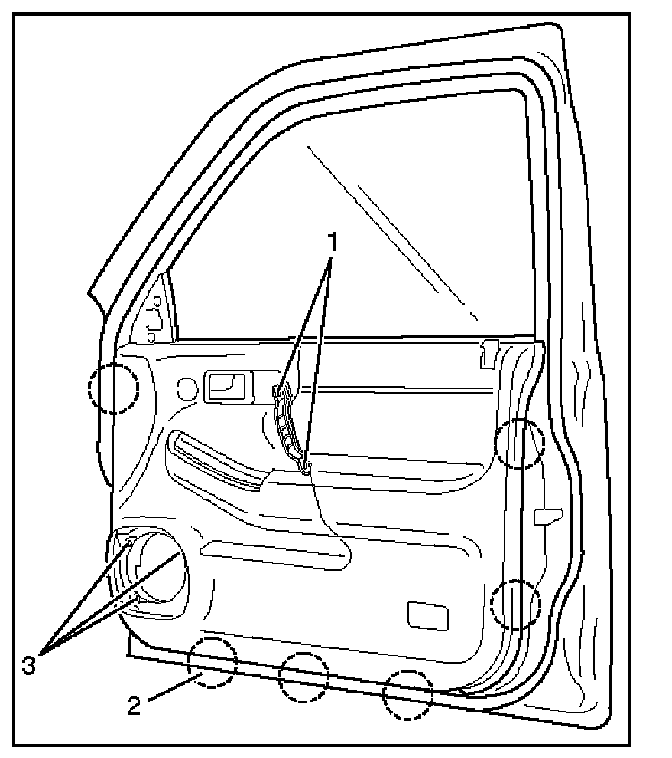

8. Remove the door trim panel.
- Remove 5 fixing screws (1), (3) in order to take off 6 clips (2) from the door panel.







- Disconnect the tweeter and courtesy light connectors to lift the door trim panel and unlock the engagement of the waist seal section. Then, pass the inside handle through the mounting hole of the trim panel, and detach the trim panel.

9. Remove the inside handle.
10. Remove the tweeter.

Installation
To install, follow the removal steps in the reverse order.
