Isuzu
>>
2004
>>
Rodeo 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
E-4 to E-8
E-4 to E-8

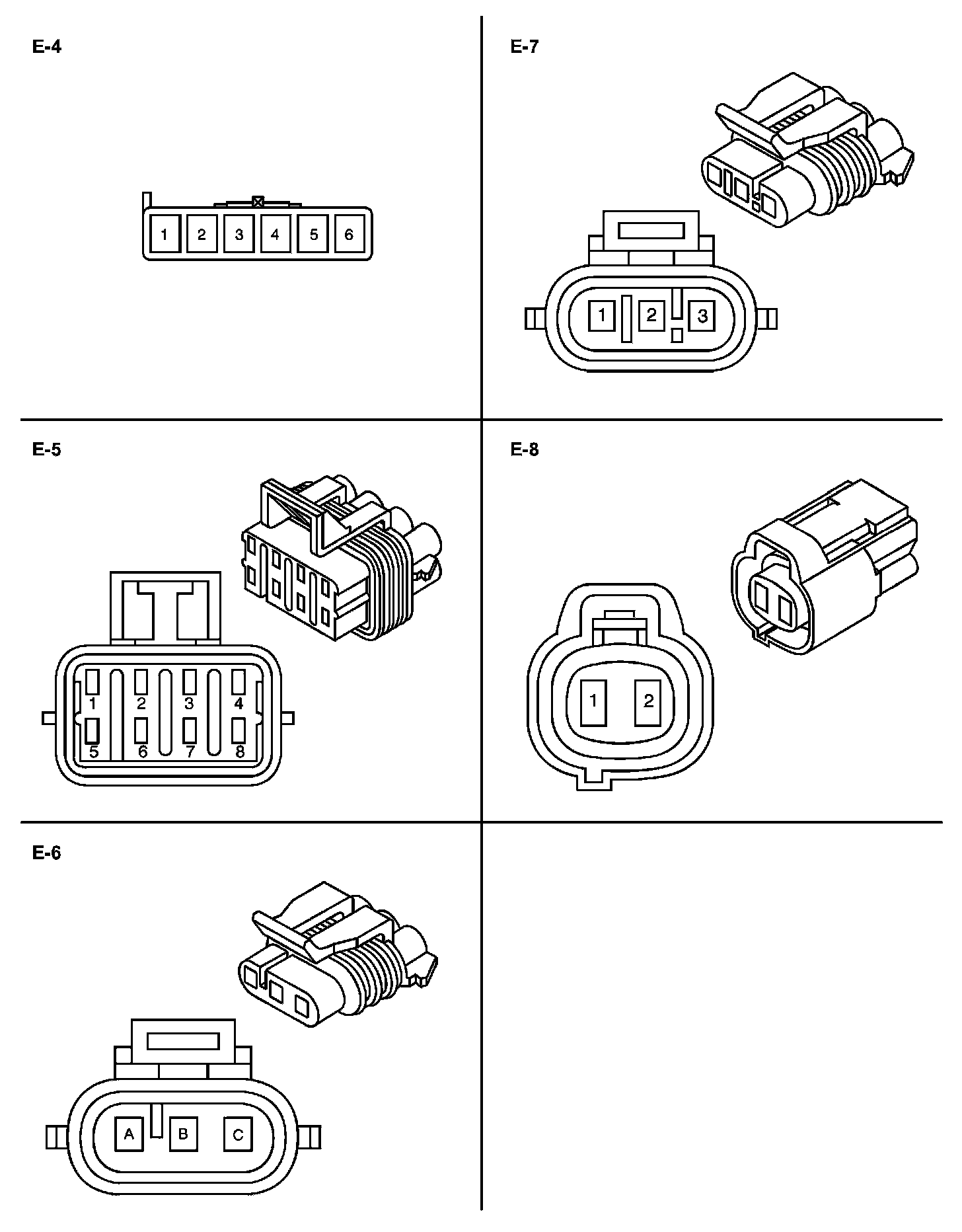

E-4 To E-8:
