Home >> Isuzu >> 2004 >> Rodeo 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> H-30 to H-32

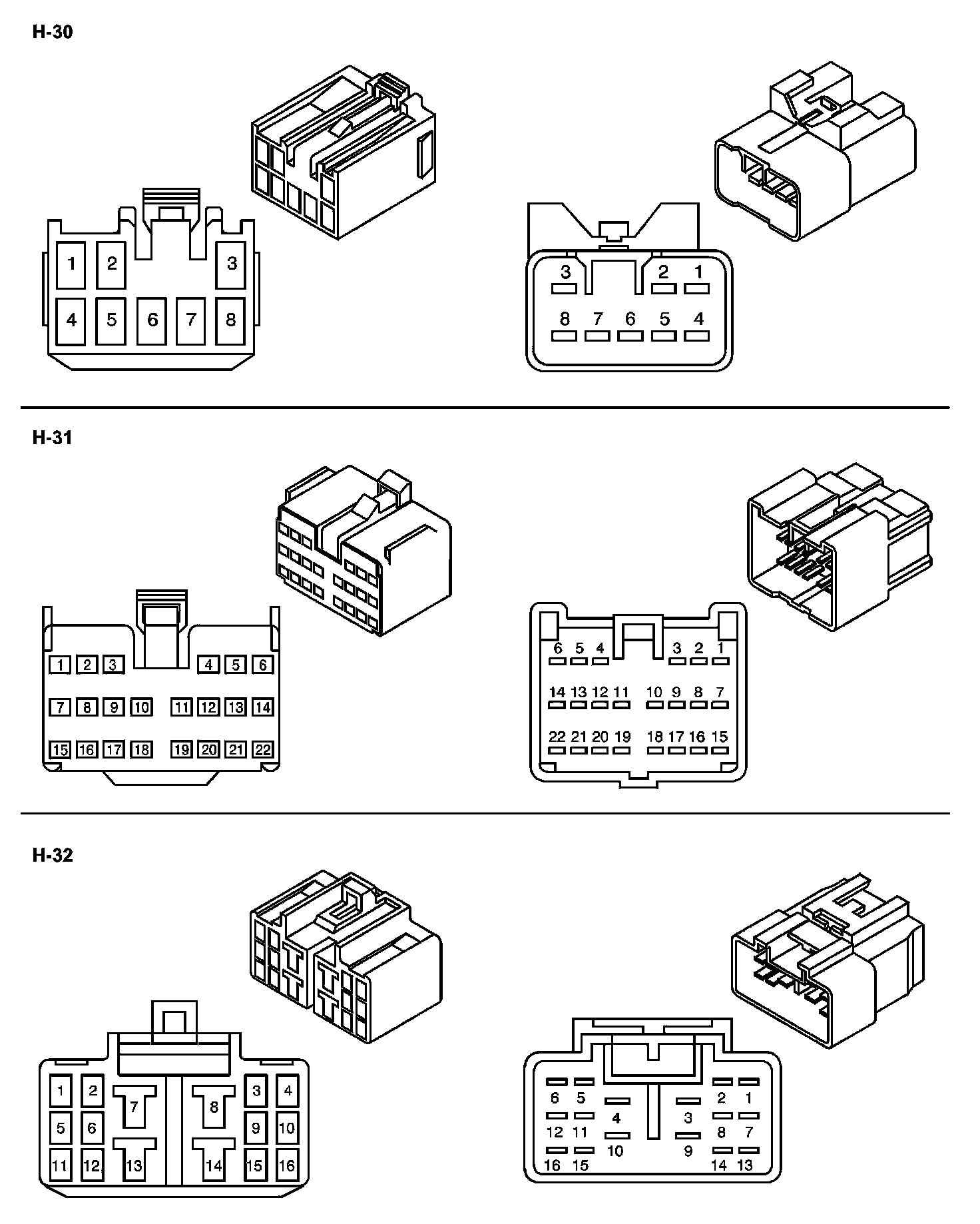

H-30 to H-32

H-30 To H-32:
