Home
>>
Isuzu
>>
2004
>>
Rodeo 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
L-6 to M-14
L-6 to M-14

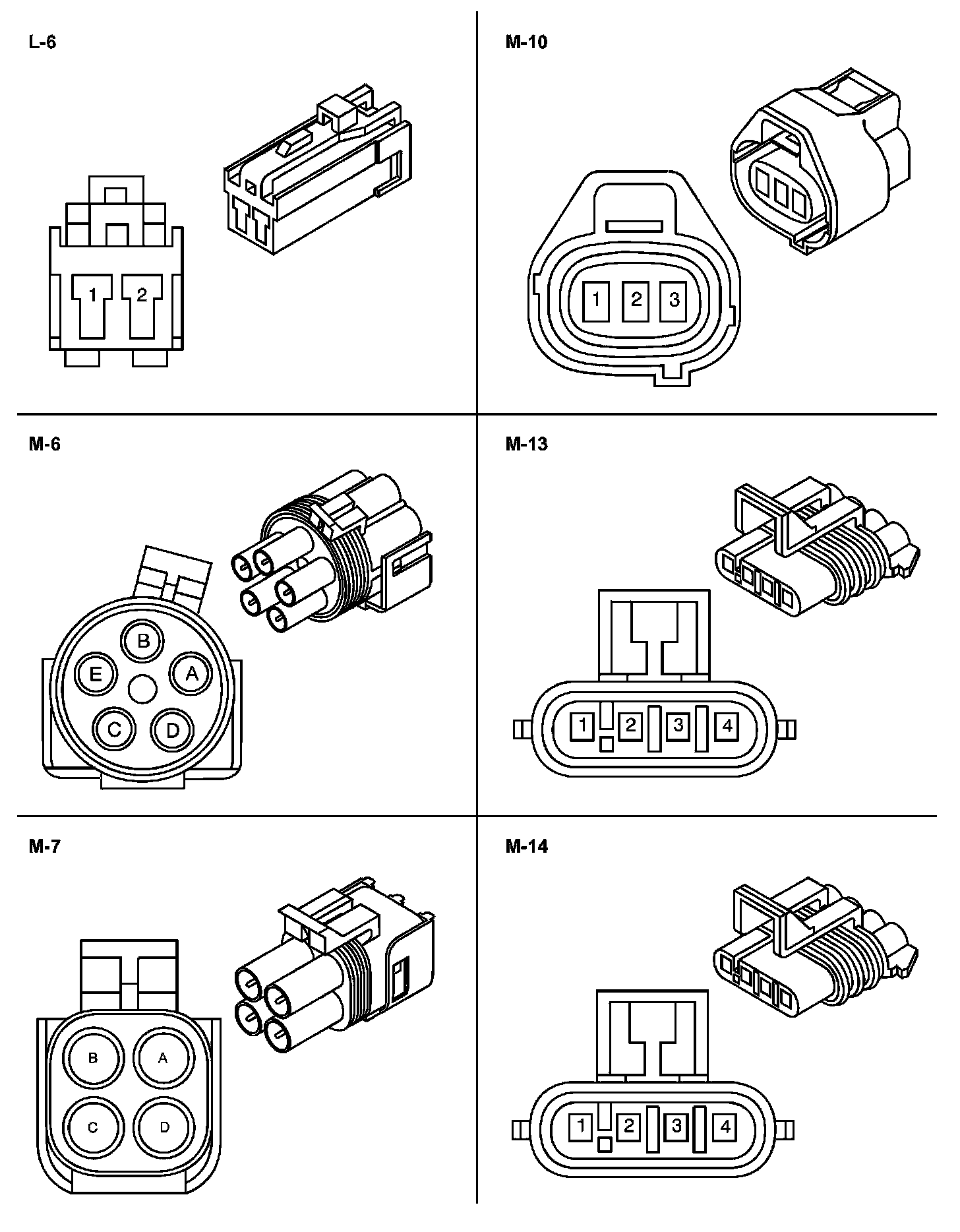

L-6 To M-14:
