Coolant Temperature Sensor/Switch (For Computer): Locations

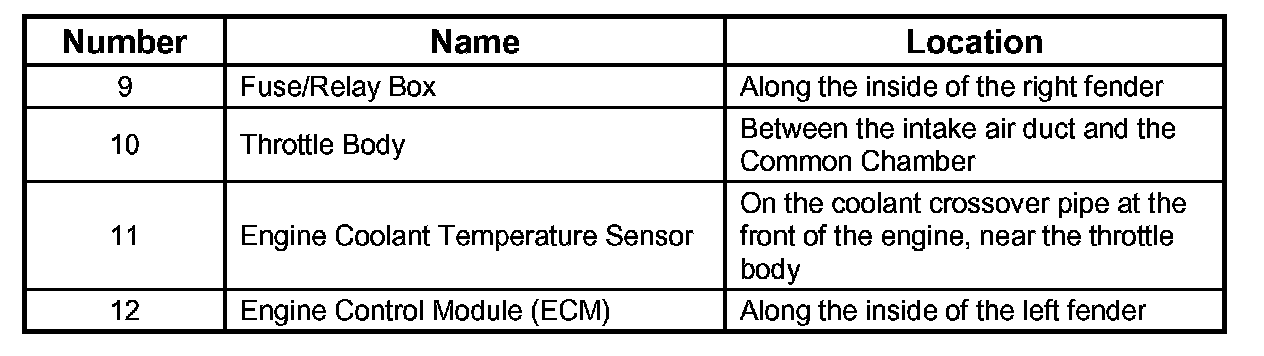

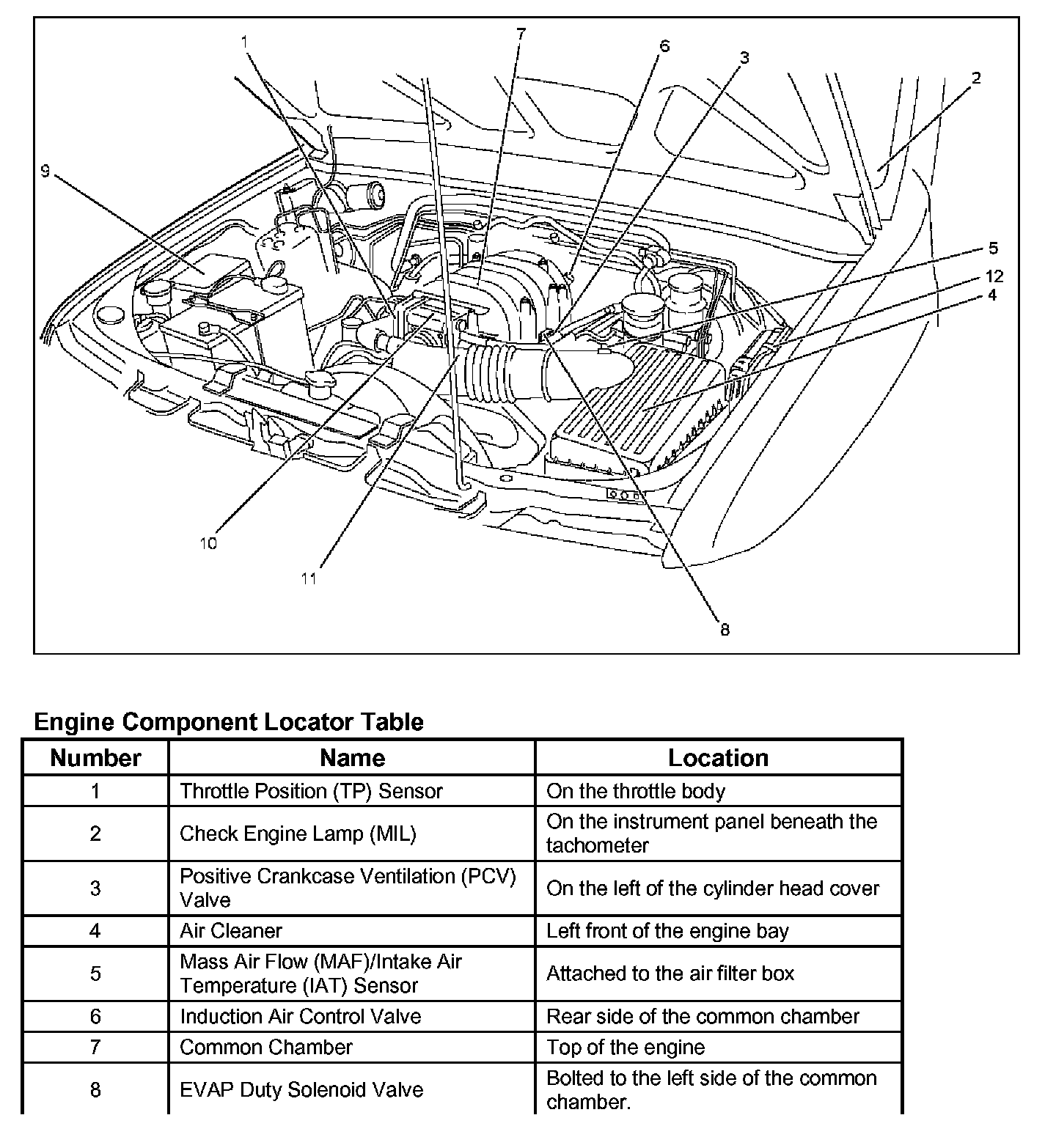

Engine Component Locator:



Engine Component Locator:

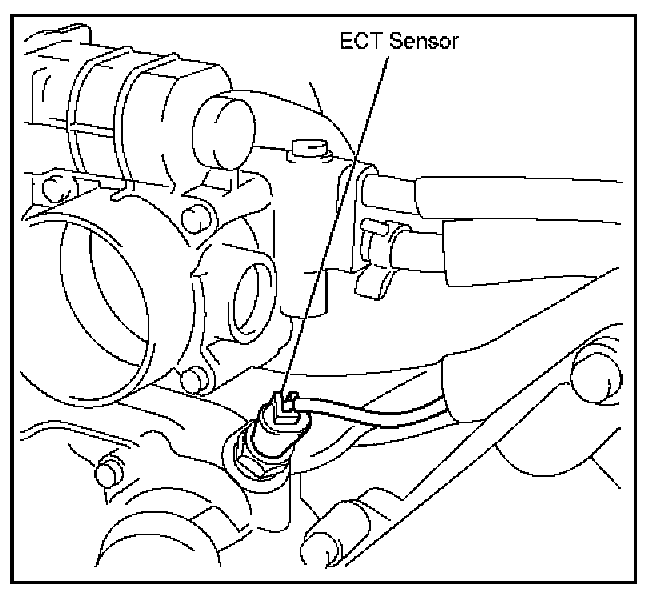

ECT Sensor:
