Home >> Isuzu >> 2004 >> Rodeo 2WD V6-3.5L >> Repair and Diagnosis >> Locations >> Component Locations >> Location Photos 76-100 >> 77

Location Photos 76-100: 77

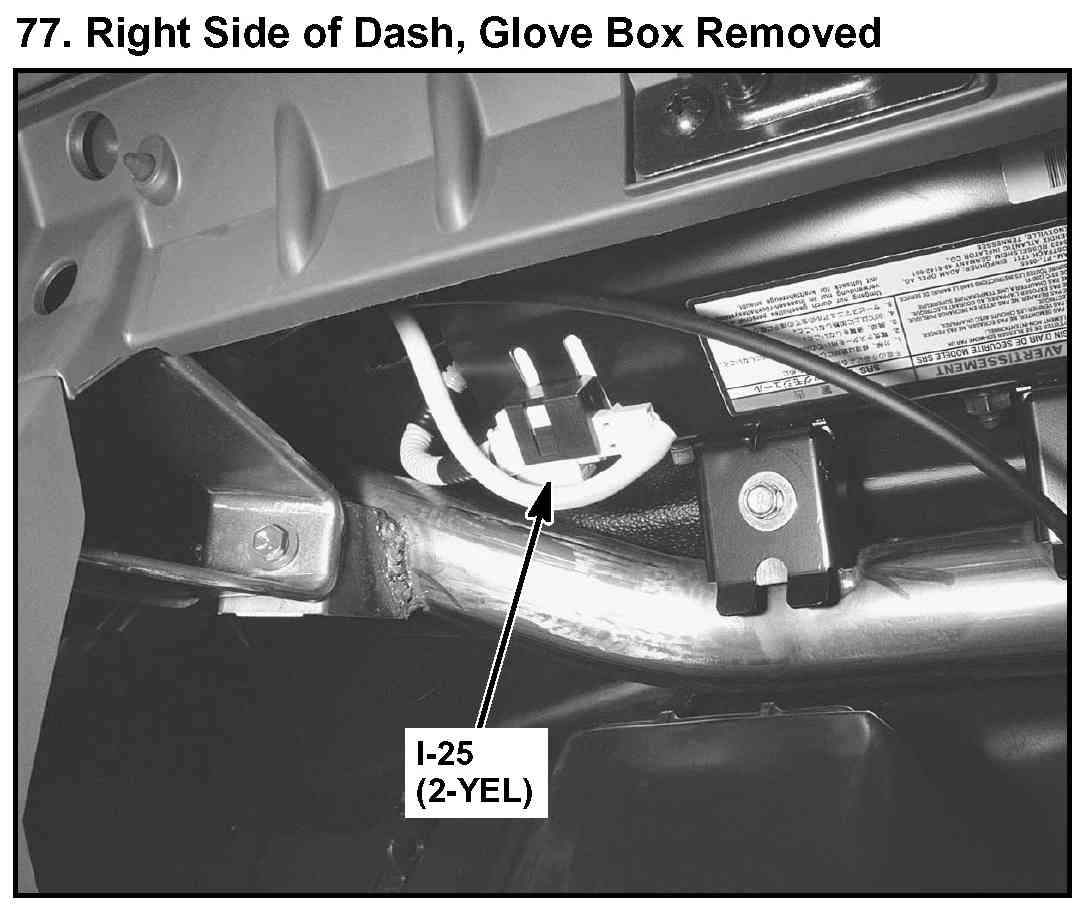

77.Right Side Of Dash,Glove Box Remoed:
