Snapshot Display With TIS2000

Snapshot Display With TIS2000




Procedures for transferring and displaying Tech 2 snapshot data by using TIS2000 "Snapshot Upload" function is described.

Snapshot data can be displayed with "Snapshot Upload" function included in TIS2000.

By analyzing these data in various methods, trouble conditions can be checked.

Snapshot data is displayed by executing the three steps shown:

1. Record the snapshot data, in Tech 2.




2. Transfer the snapshot data to PC.
After recording the snapshot in Tech 2, transfer the data from Tech 2 to PC by the procedures.
1. Start TIS2000.

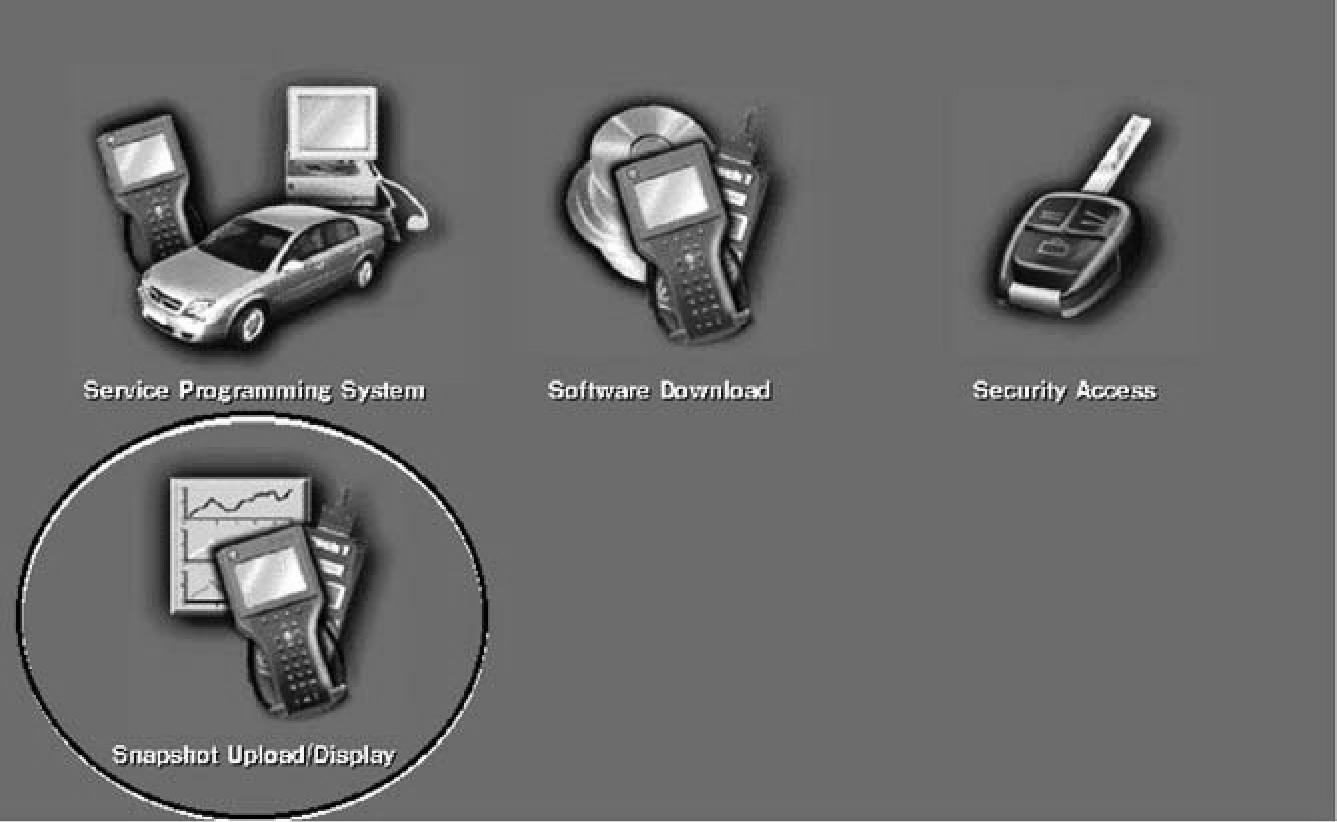

2. Select "Snapshot Upload" on the TIS2000 start screen.
3. Select "Upload from trouble diagnosis tool (transfer from diagnosis tester)" or click the corresponding icon of the tool bar.
4. Select Tech 2, and transfer the recorded snapshot information.
5. Select the transferred snapshot.

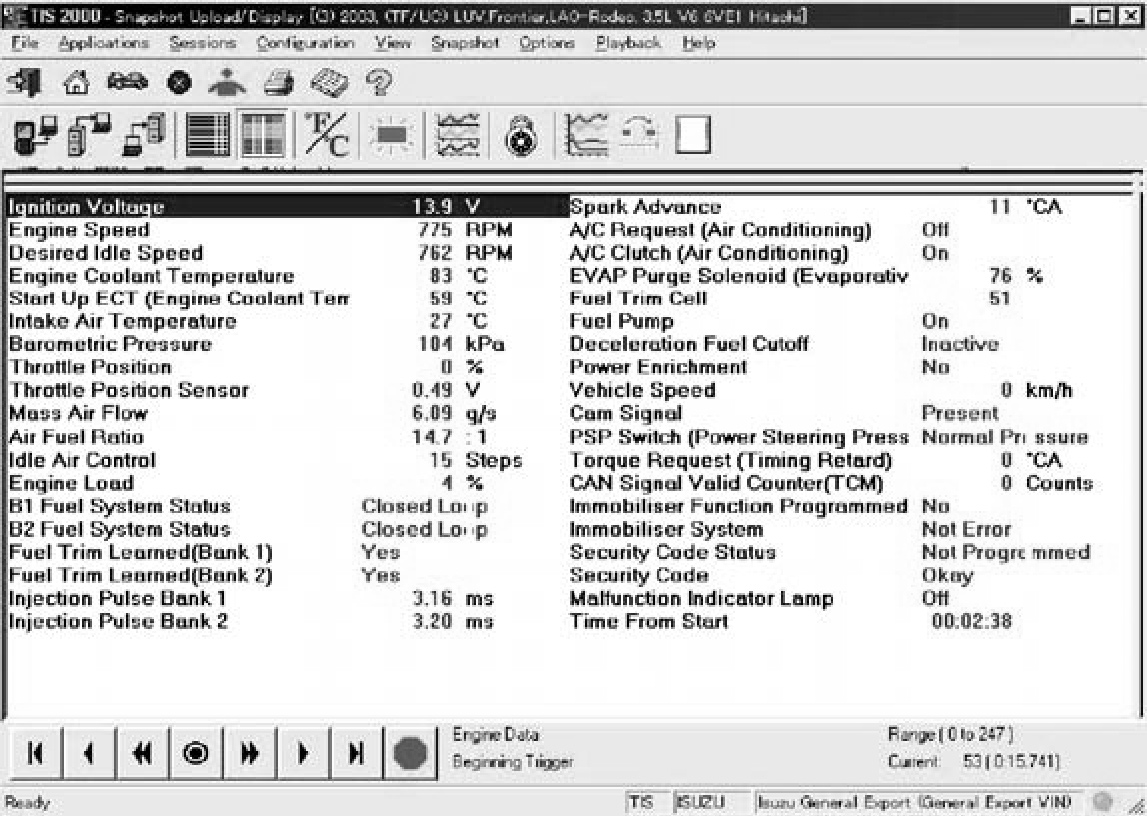

6. After ending transfer of the snapshot, data parameter list is displayed on the screen.

3. Snapshot data is displayed with TIS2000 "Snapshot Upload" function.
Snapshot is stored in the PC hard disk or floppy disk, and can be displayed any time.
Stored snapshot can be displayed by the below procedures.
1. Start TIS2000.
2. Select "Snapshot Upload" on the TIS2000 start screen.
3. Select "Open the existing files" or click the corresponding icon of the tool bar.
4. Select the transferred snapshot.
5. Open the snapshot, to display the data parameter list on the screen.
