Connector Views

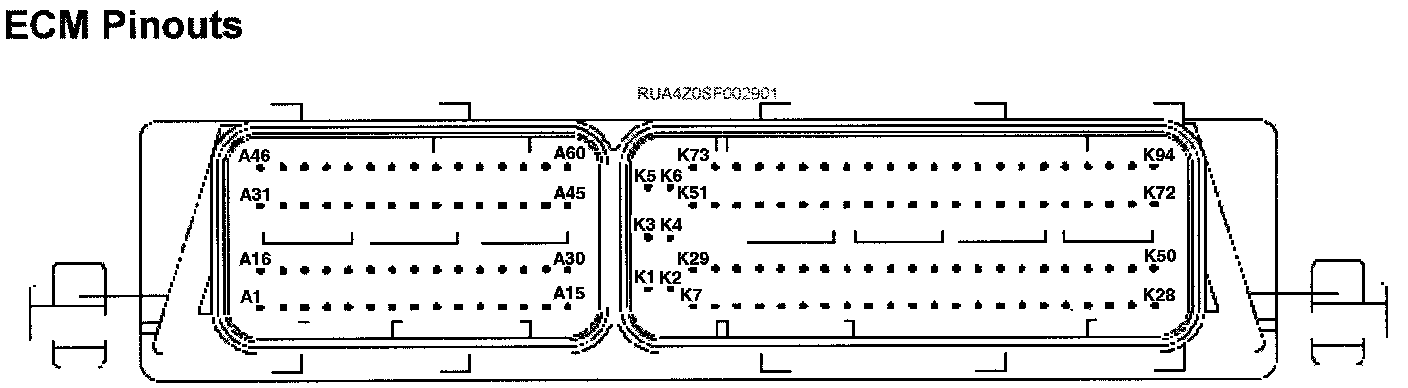

ECM Pinouts:







Pin A1-A11:

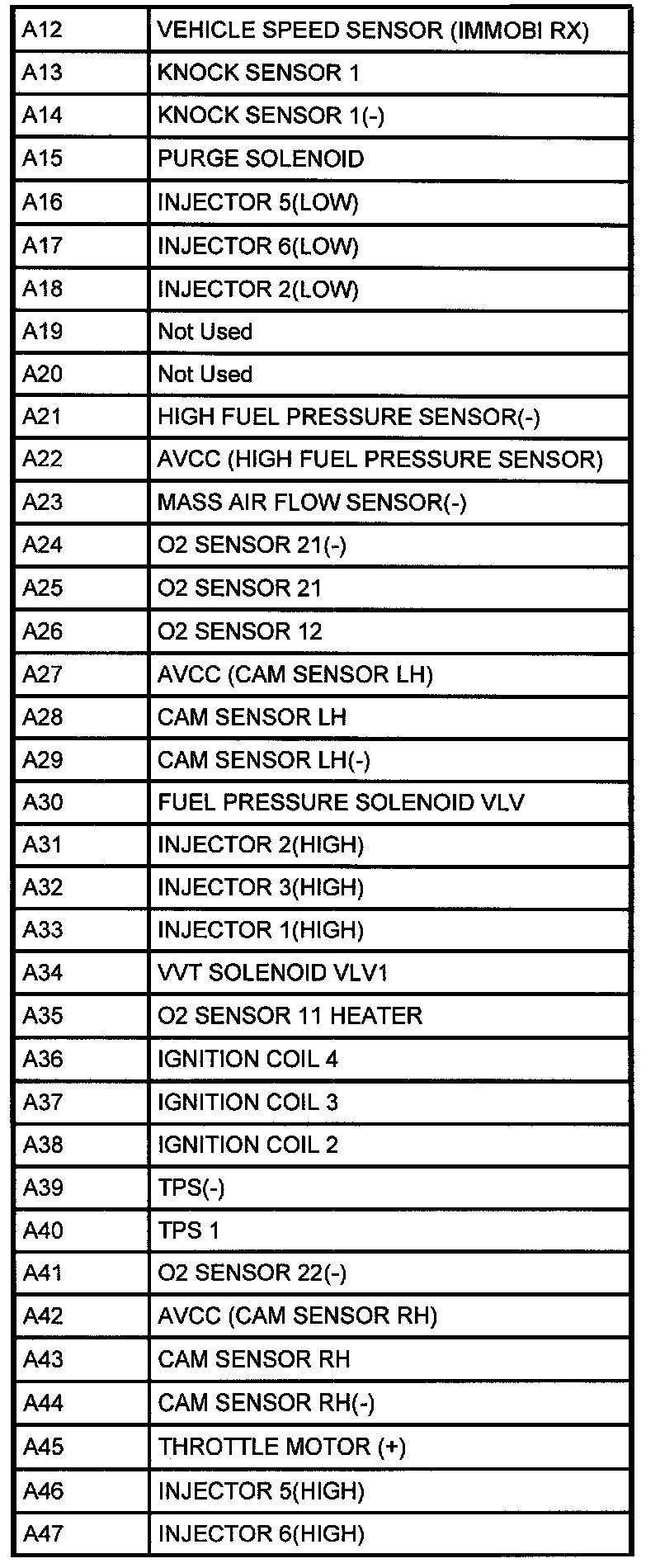

Pin A12-A47:

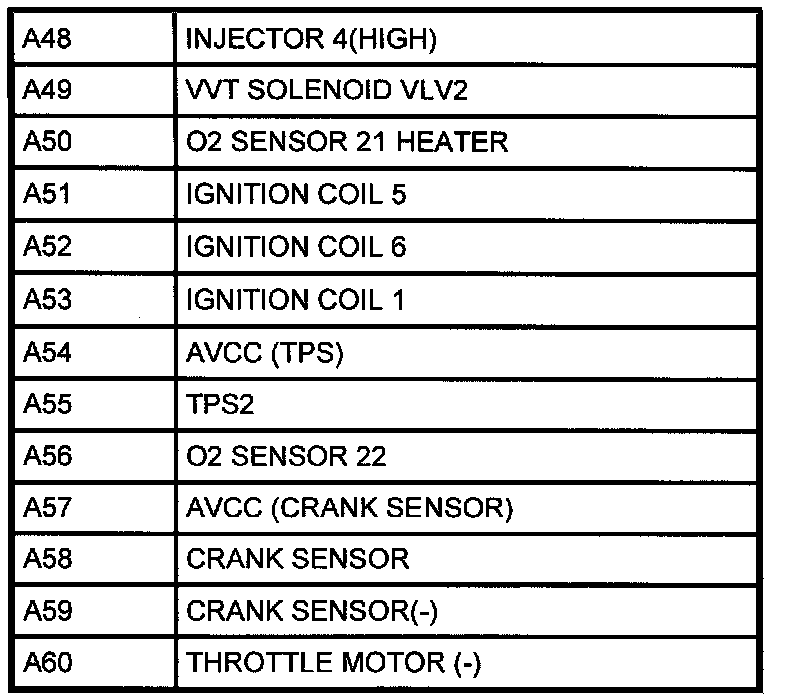

Pin A48-A60:

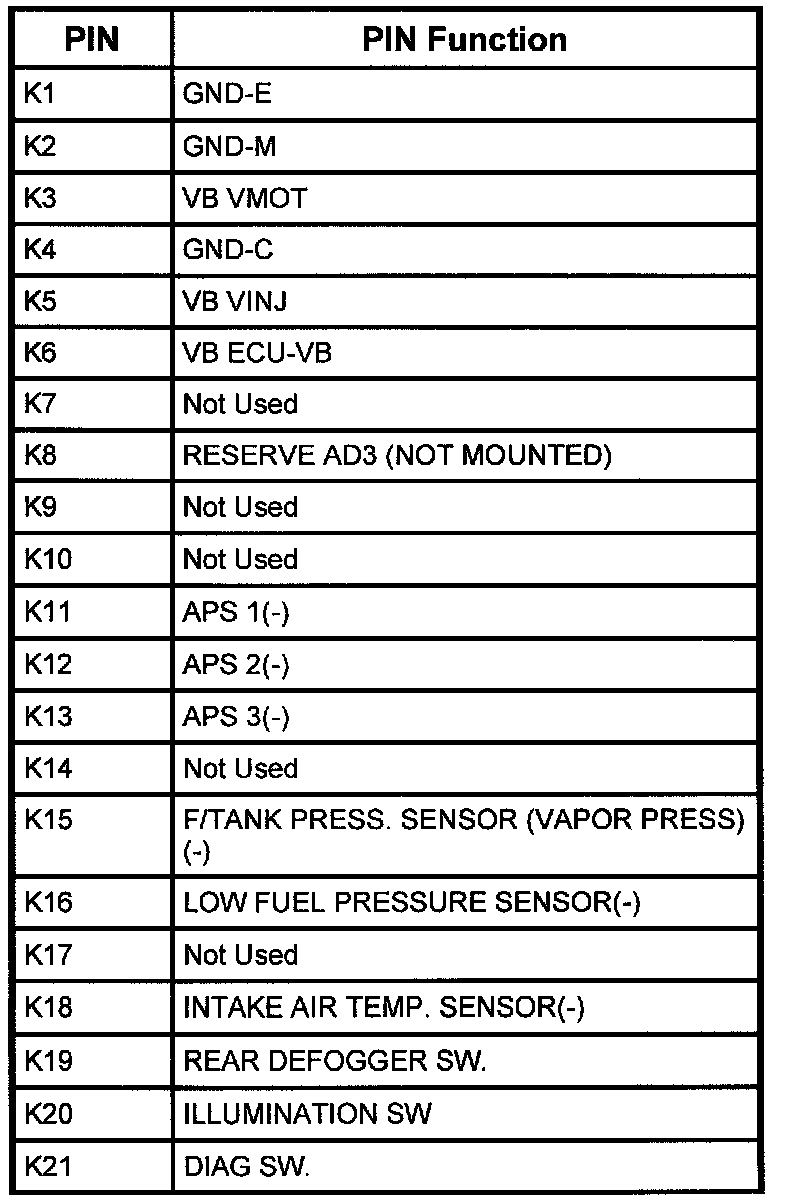

Pin K1-K21:

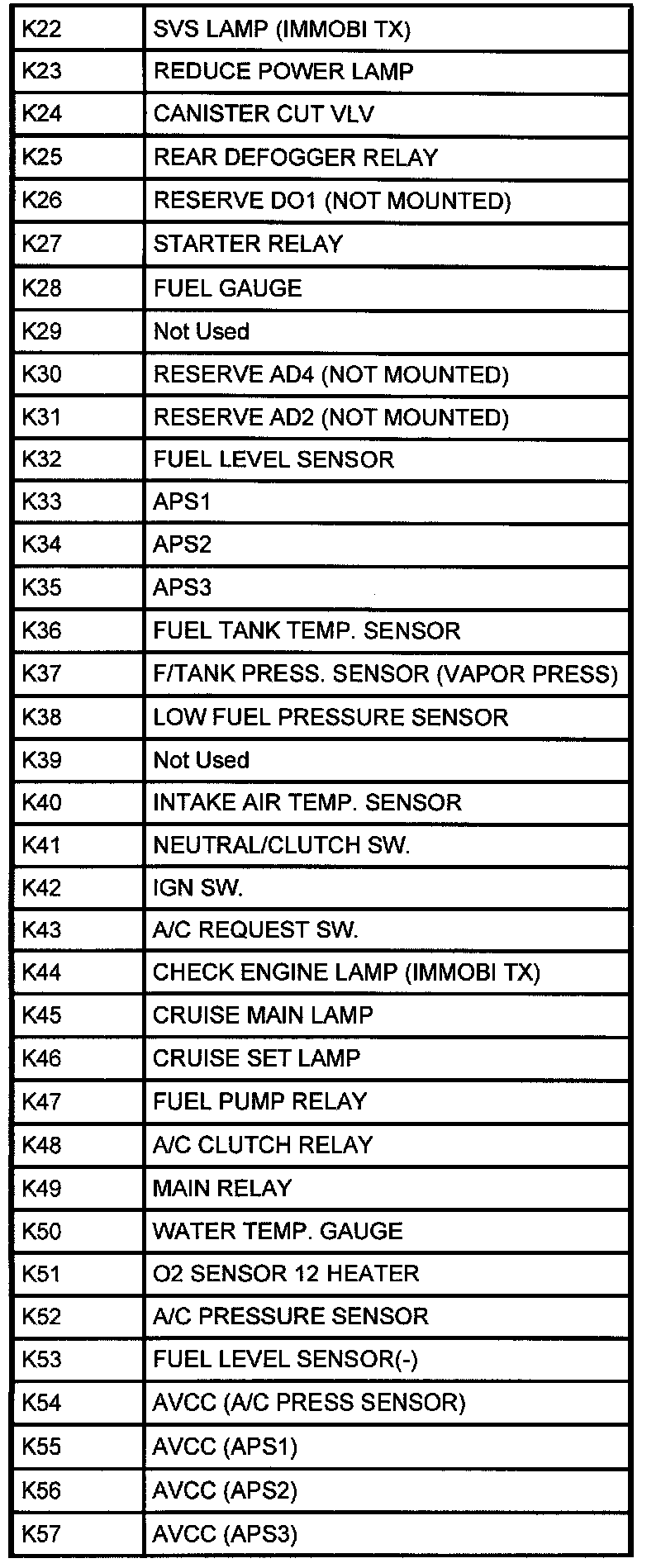

Pin K22-K57:

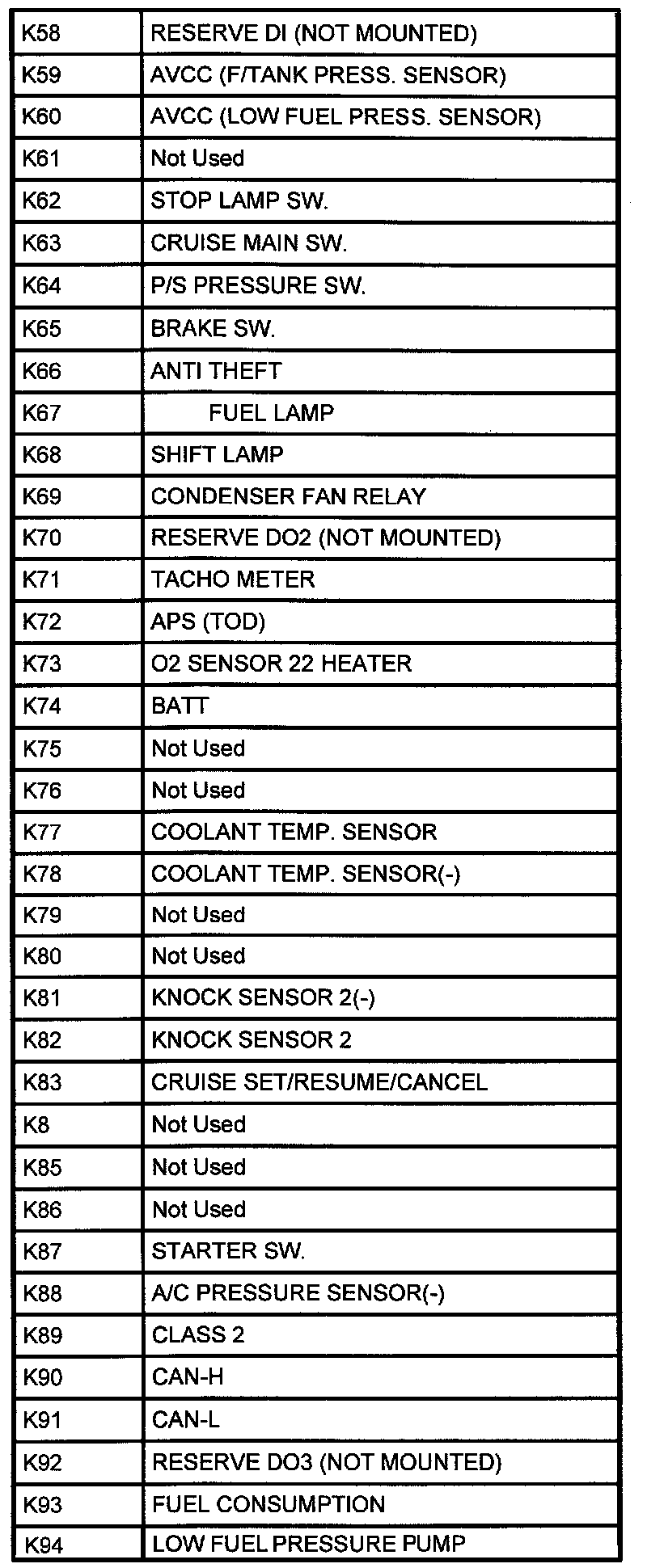

Pin K58-K94:
