Wheel Speed Sensor: Locations

1. Behind Left Front Wheel (Right Wheel Similar):

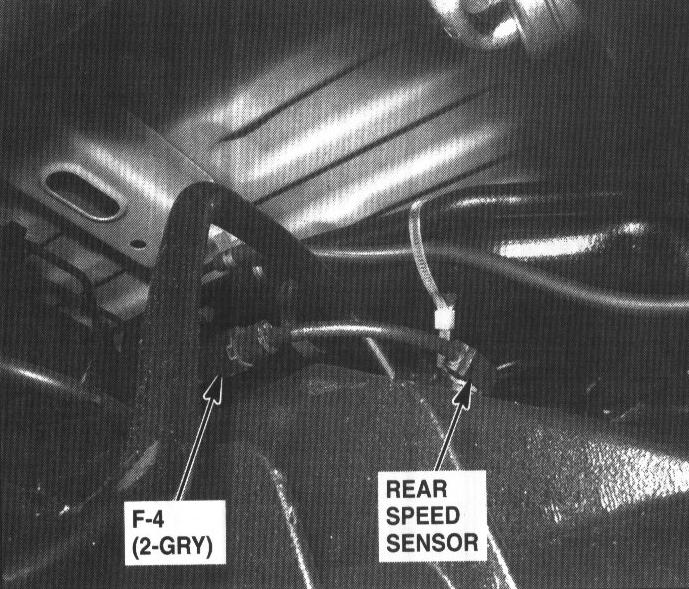

118 - Under Rear Of Vehicle, On Differential:

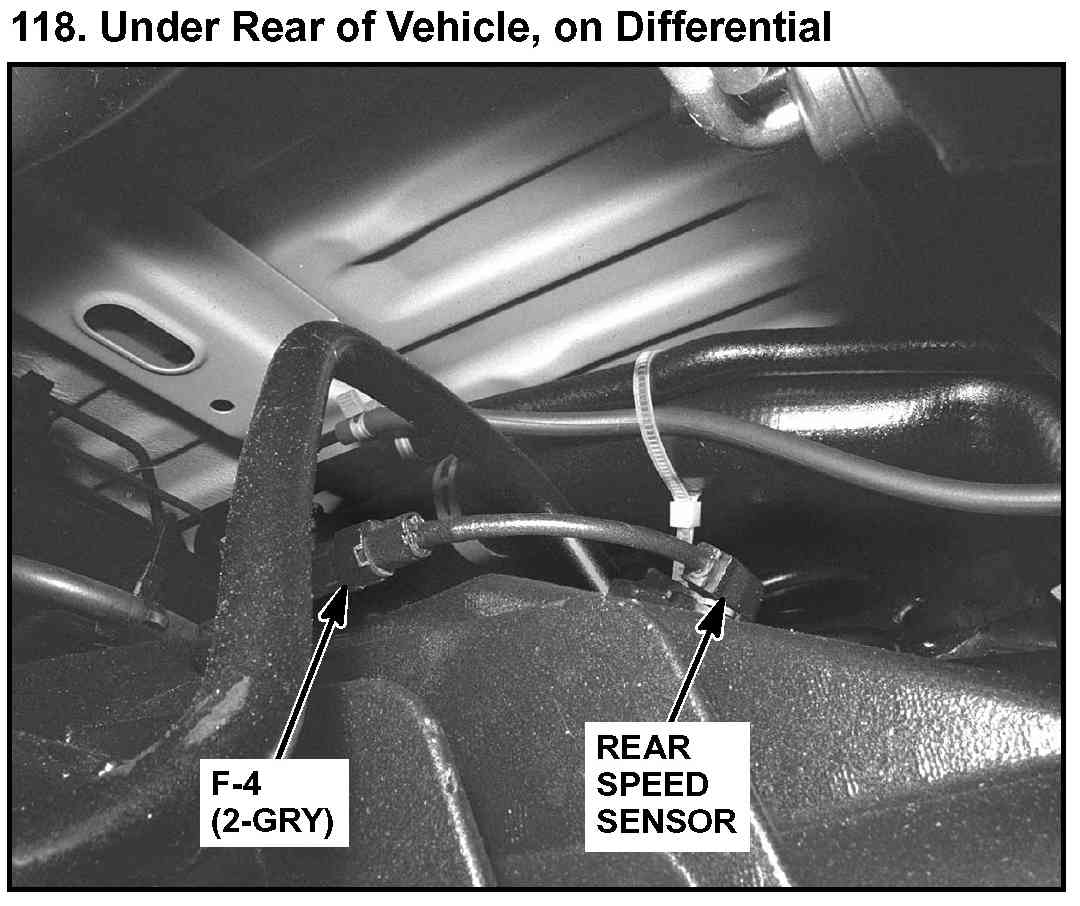

118.Under Rear Of Vehicle,on Diffferential:

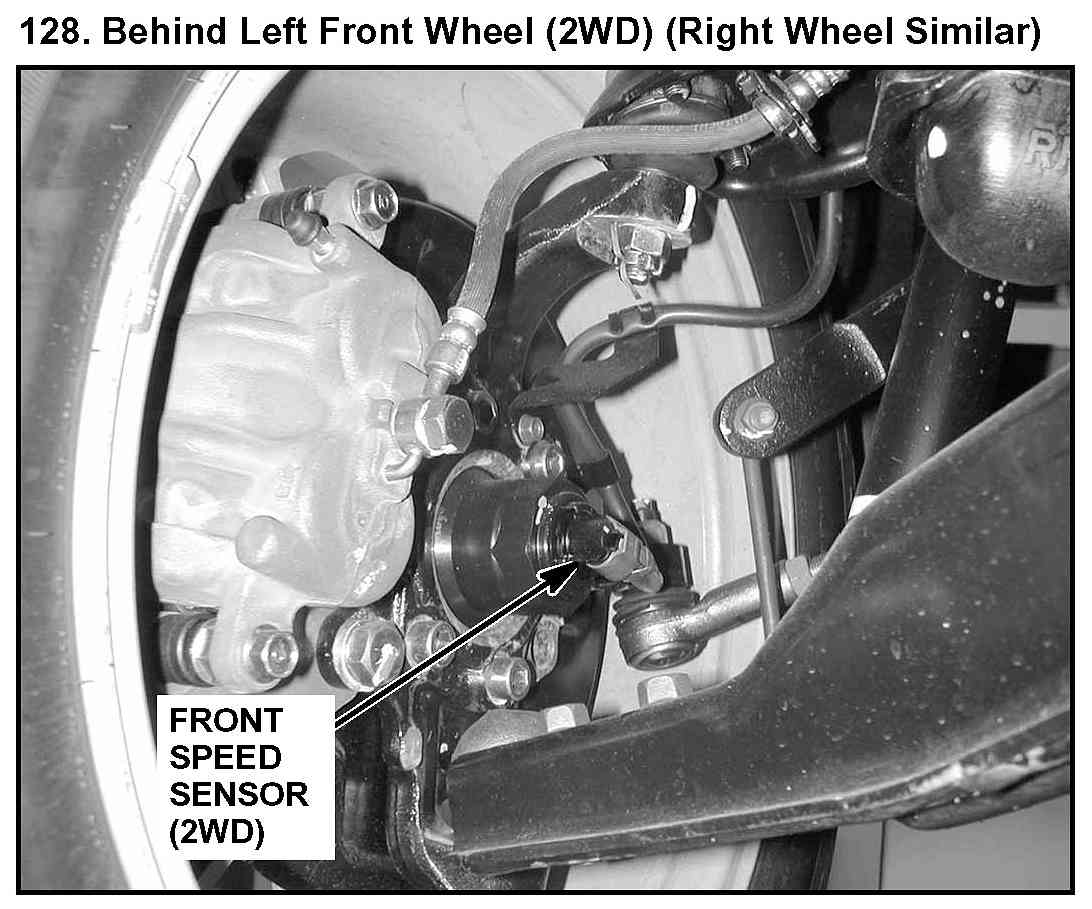

128.Behind Left Front Wheel (2WD) (Right Wheeel Similar):
