Differential Assembly
Differential Assembly

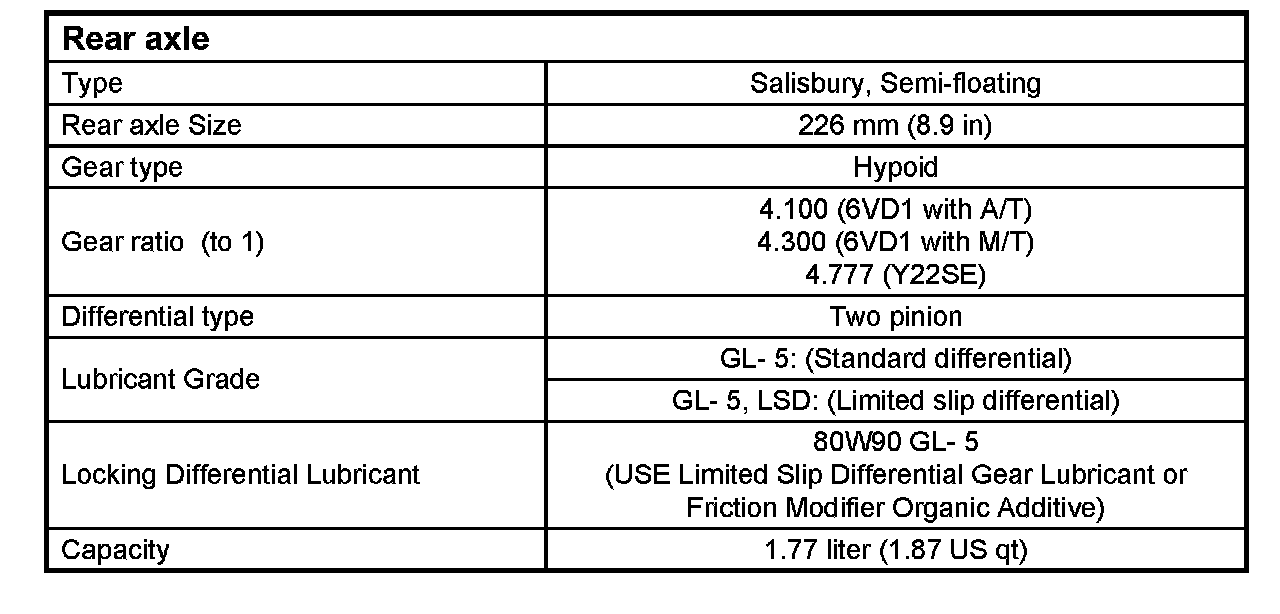

REAR DIFFERENTIAL
GENERAL SPECIFICATIONS

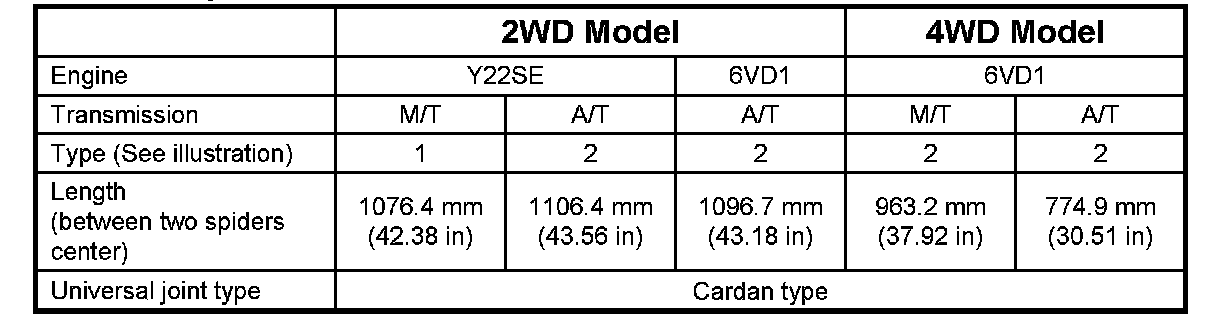

REAR PROPELLER SHAFT
GENERAL SPECIFICATIONS

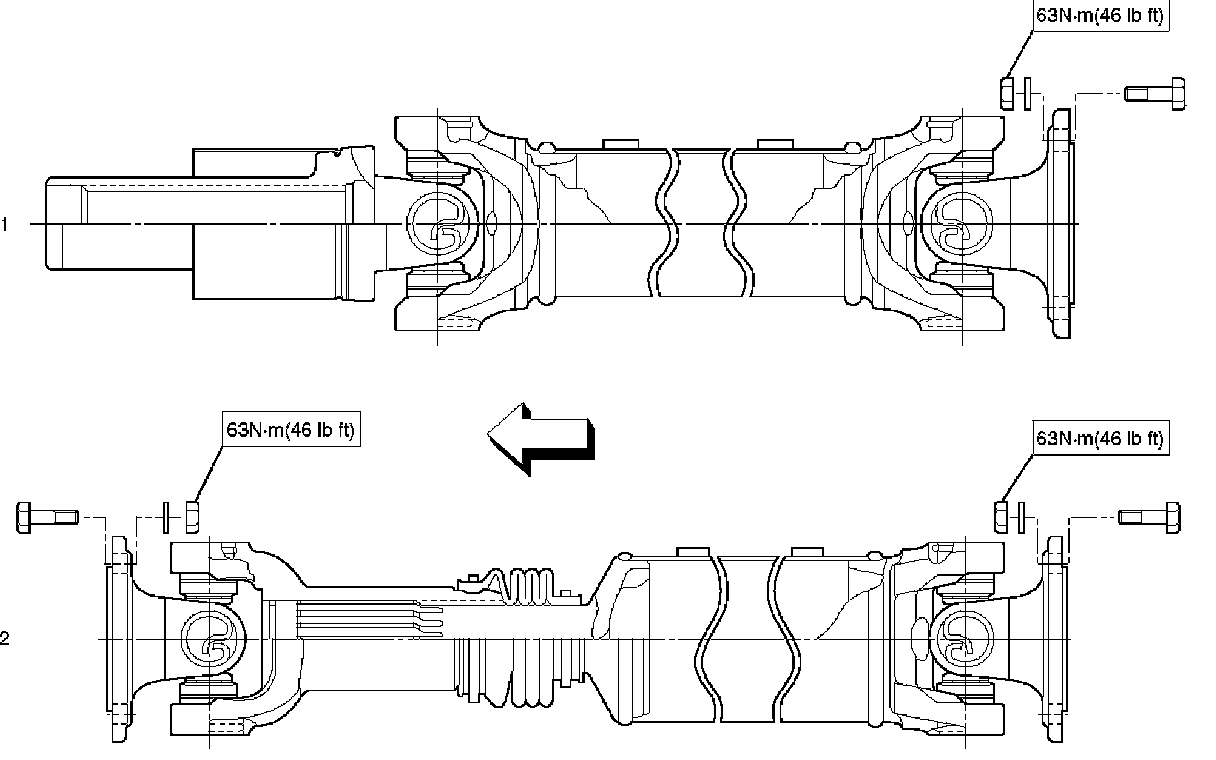

TORQUE SPECIFICATIONS
