Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2004
>>
Rodeo 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
H-49 to I-2
H-49 to I-2

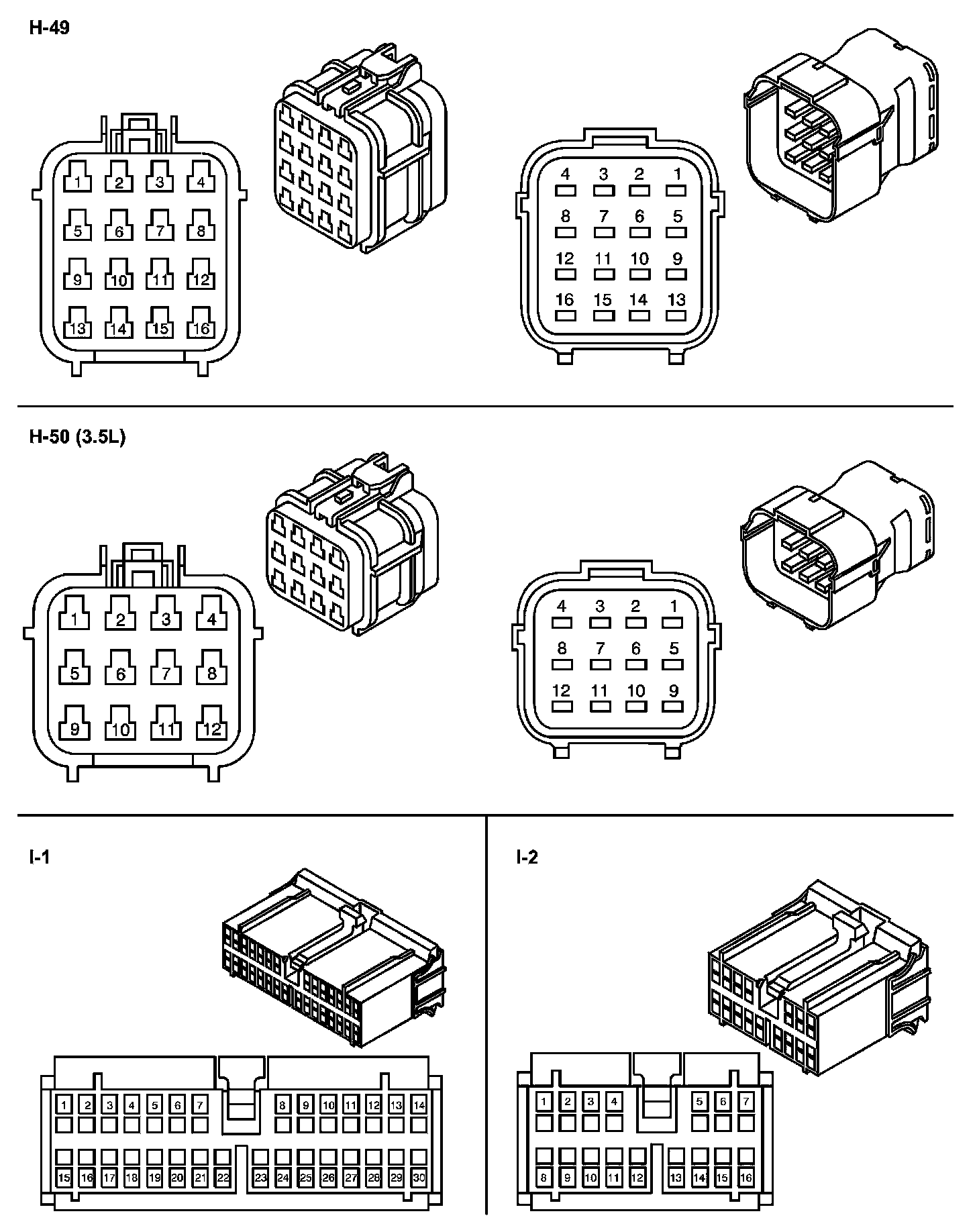

H-49 To I-2:
