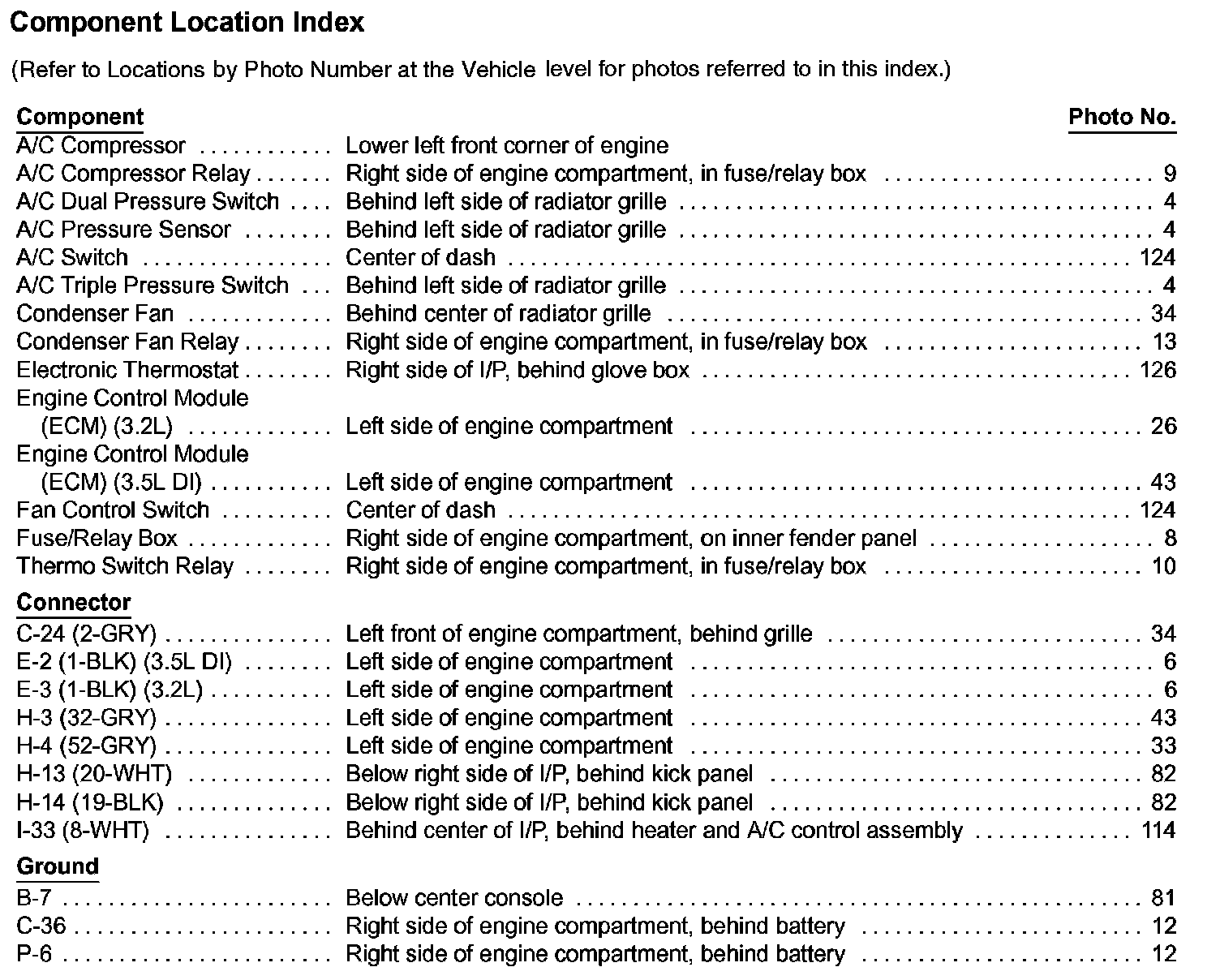

Heating and Air Conditioning: Locations
Blower Controls:
Heater Temperature Control Link Unit - Disassembled View:
Disassembled View:
Air Conditioner - Compressor Control:
