High Mounted Stoplight Assembly (Resin Top Model)

Removal

1. Disconnect the battery ground cable.

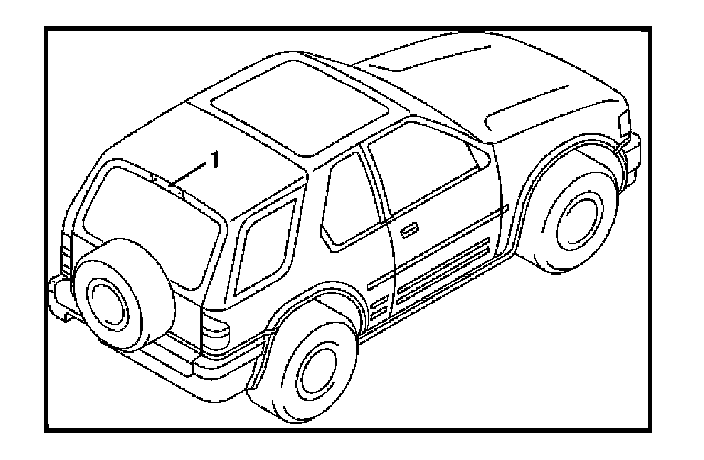

2. Remove the high mounted stoplight assembly (1).
- Remove the two screws.
- Pull out the high mounted stoplight assembly (1).
- Disconnect the connector

Installation

To install, follow the removal steps in the reverse order.
