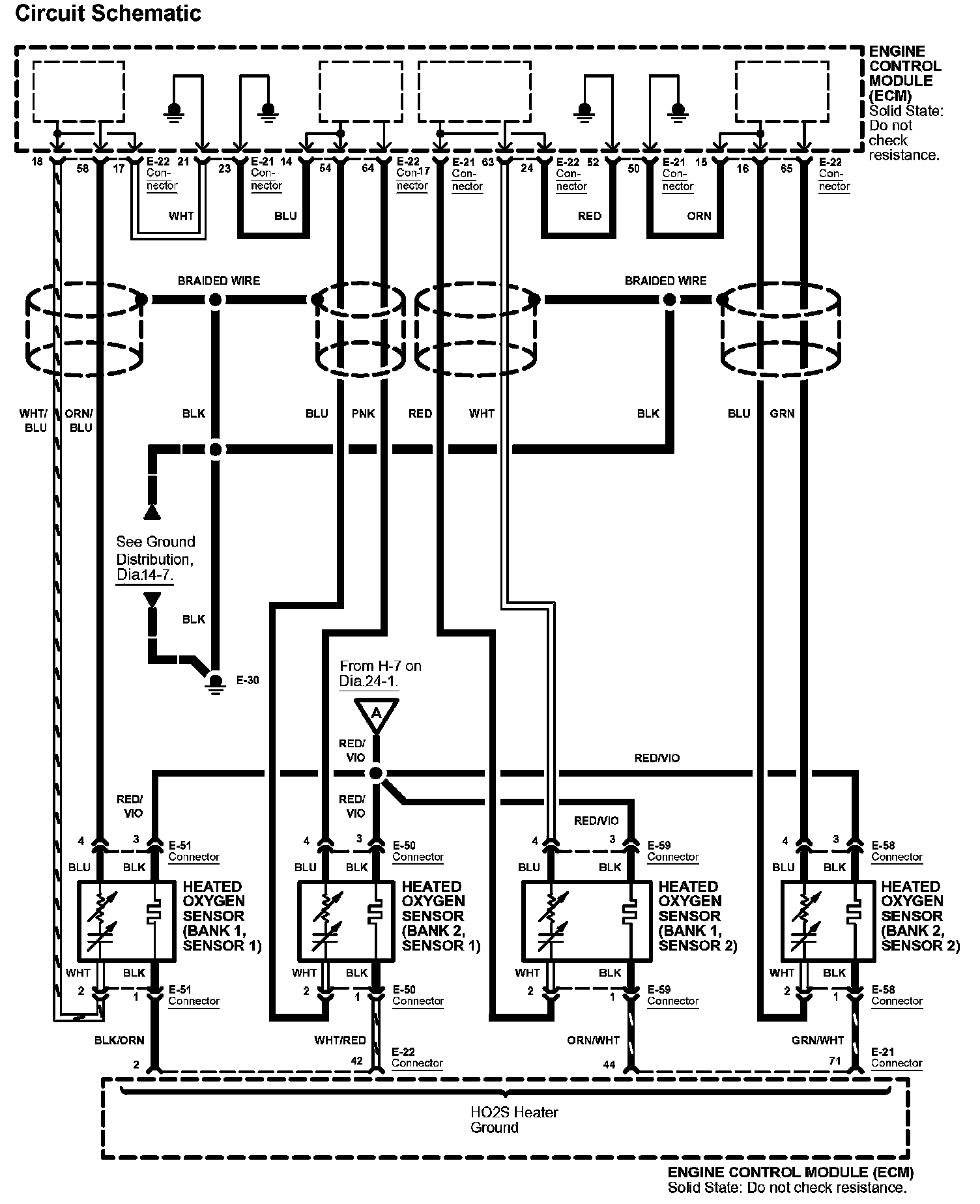

Diagram 24-2

Diagram 24-2:






Next Diagram Diagram 24-3


Previous Diagram Diagram 24-1


Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
