Powertrain Management: Locations

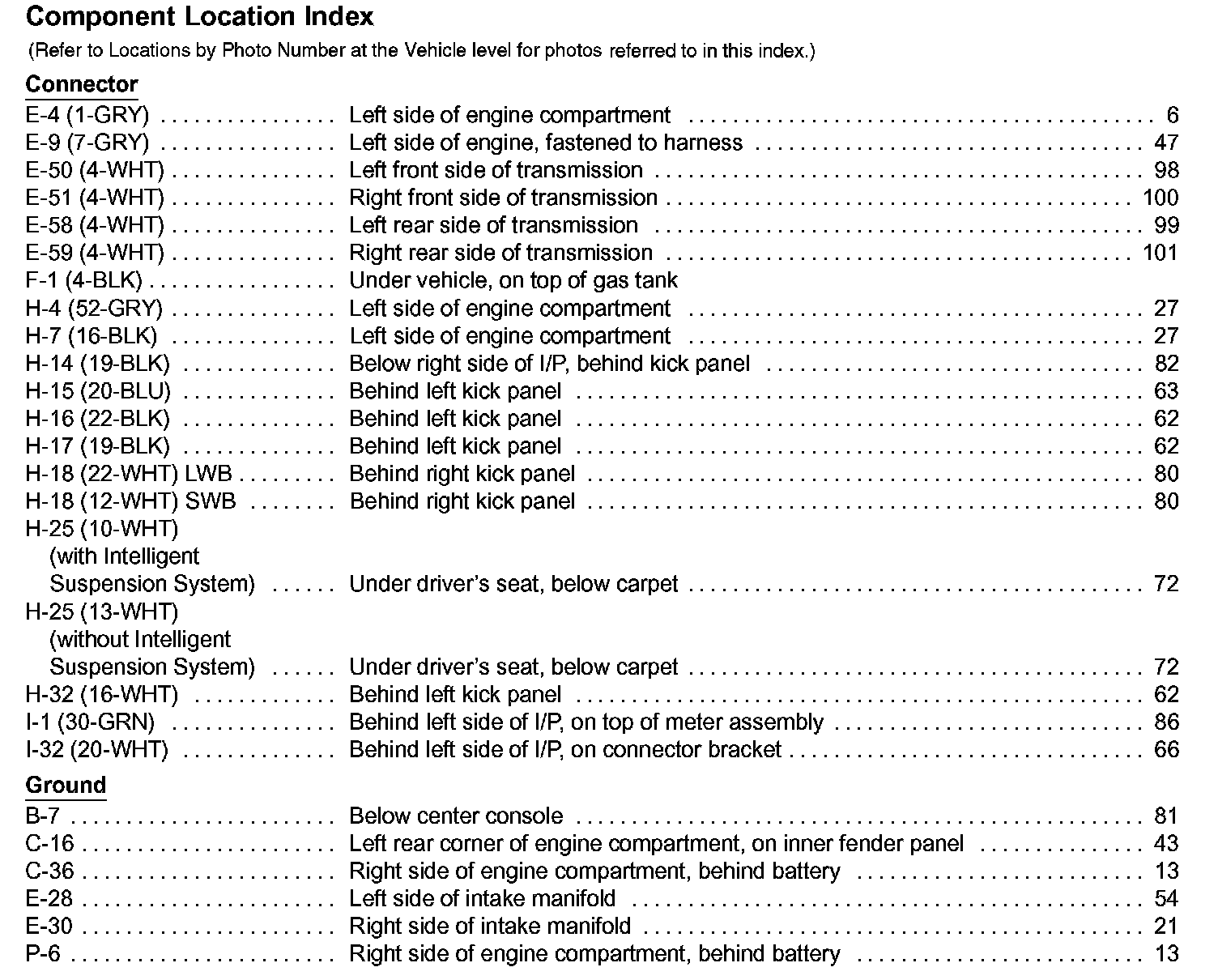

Engine Controls Part 1:



Engine Controls Part 2:



Engine Controls Part 1:



Engine Controls Part 2:
