Restraints and Safety Systems: Diagrams
Parts for Electrical CircuitWiring
Wire Color
All wires have color-coded insulation.

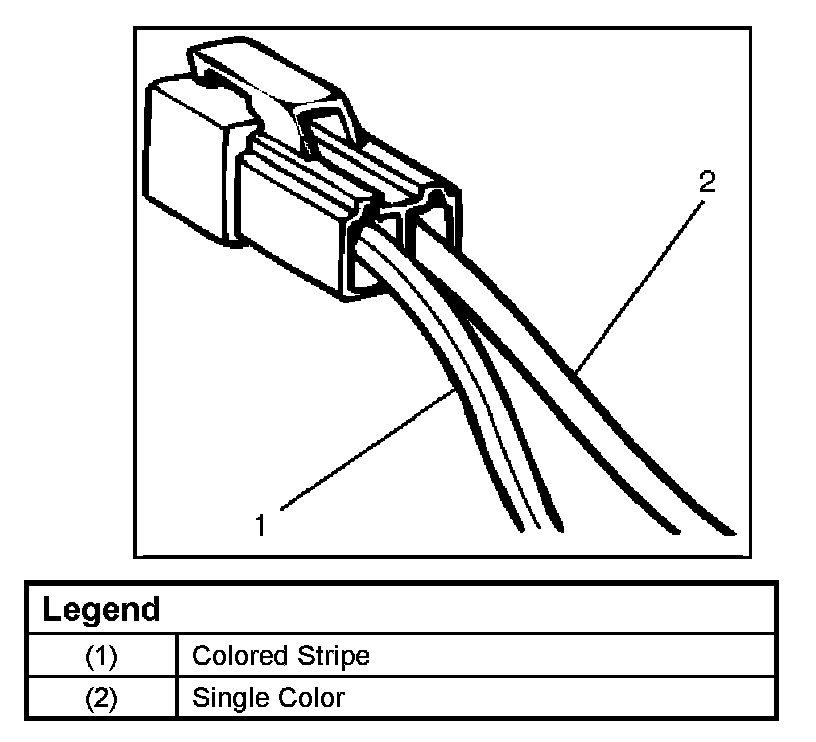

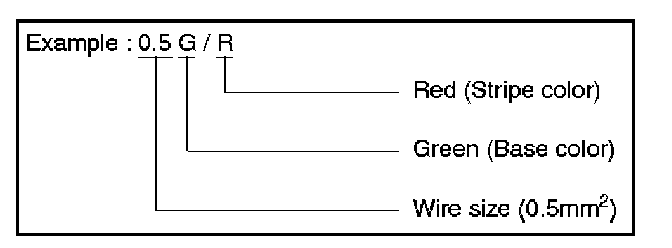

Wires belonging to a system's main harness will have a single color. Wires belonging to a system's sub-circuits will have a colored stripe. Striped wires use the given code to show wire size and colors.

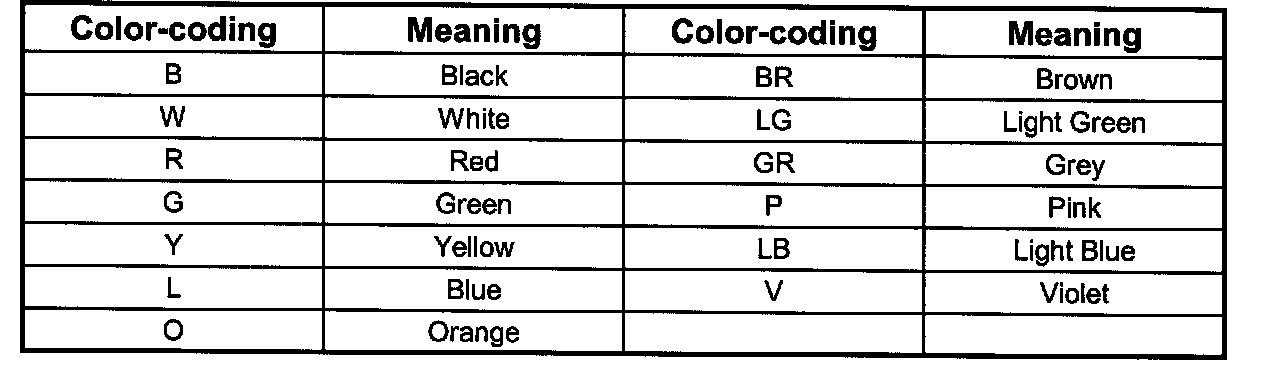

Abbreviations are used to indicate wire color within a circuit diagram. Refer to the table.
Wiring Color Coding:
Wiring Color Coding

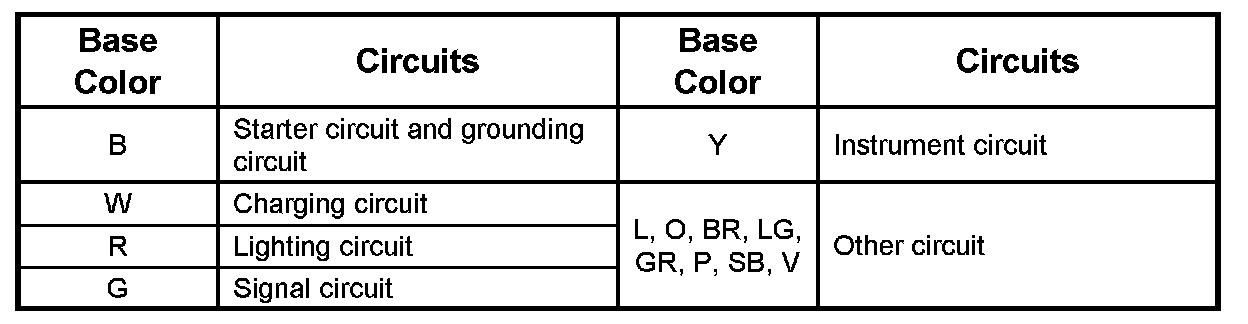

Description Of Circuit By Wire Base Color:
Description of Circuit by Wire Base Color

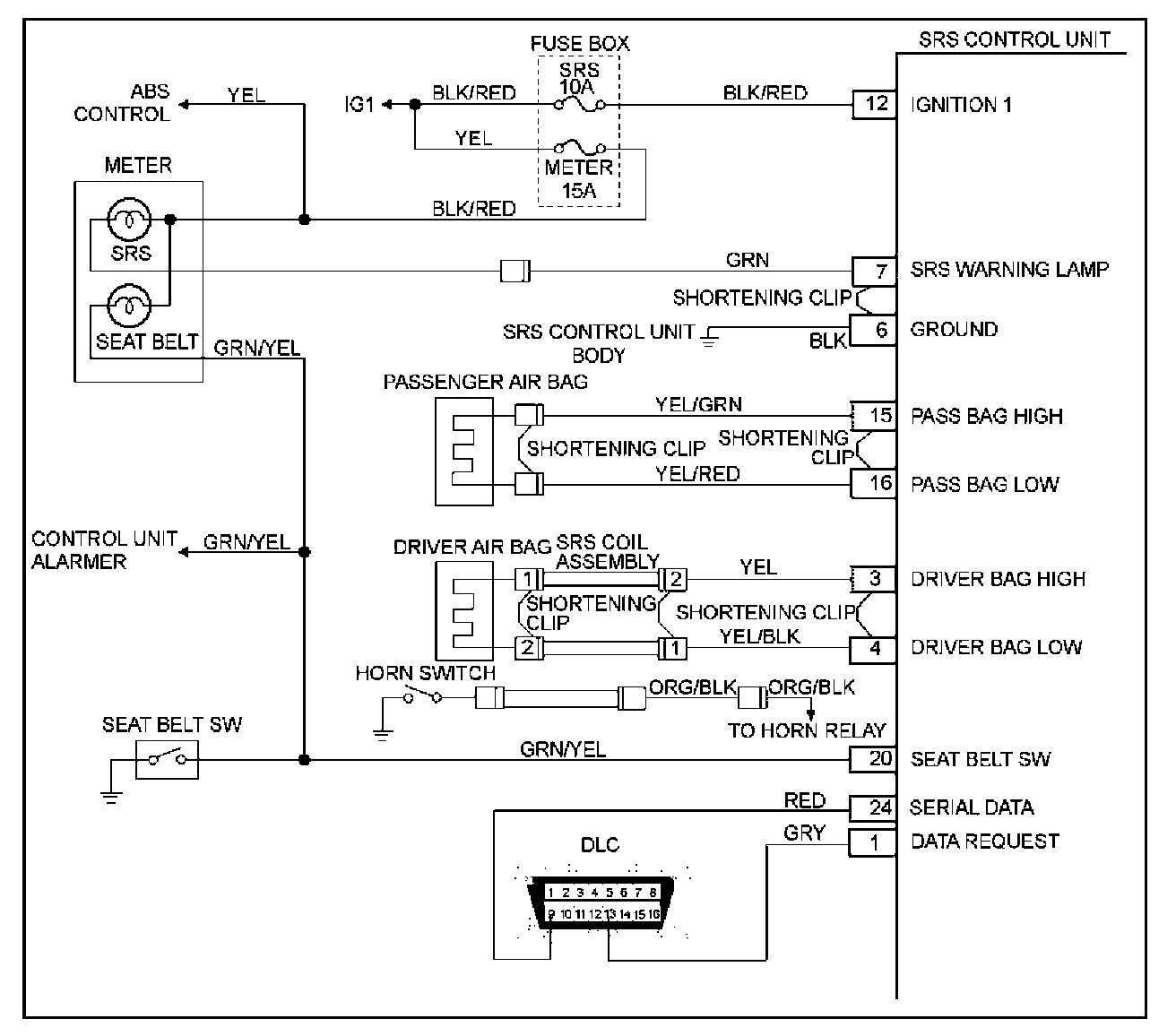

System Schematic:
System Schematic
