Engine: Specifications
Main Data and SpecificationTorque Specifications
Ignition coil, Spark plug, Crankshaft position sensor and Under cover
Cylinder head cover, Cylinder head, Camshaft bearing cap, Common chamber, EGR valve and EGR pipe, Ion sensing module
Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil strainer and water pump
Connecting Rod and Water Pump

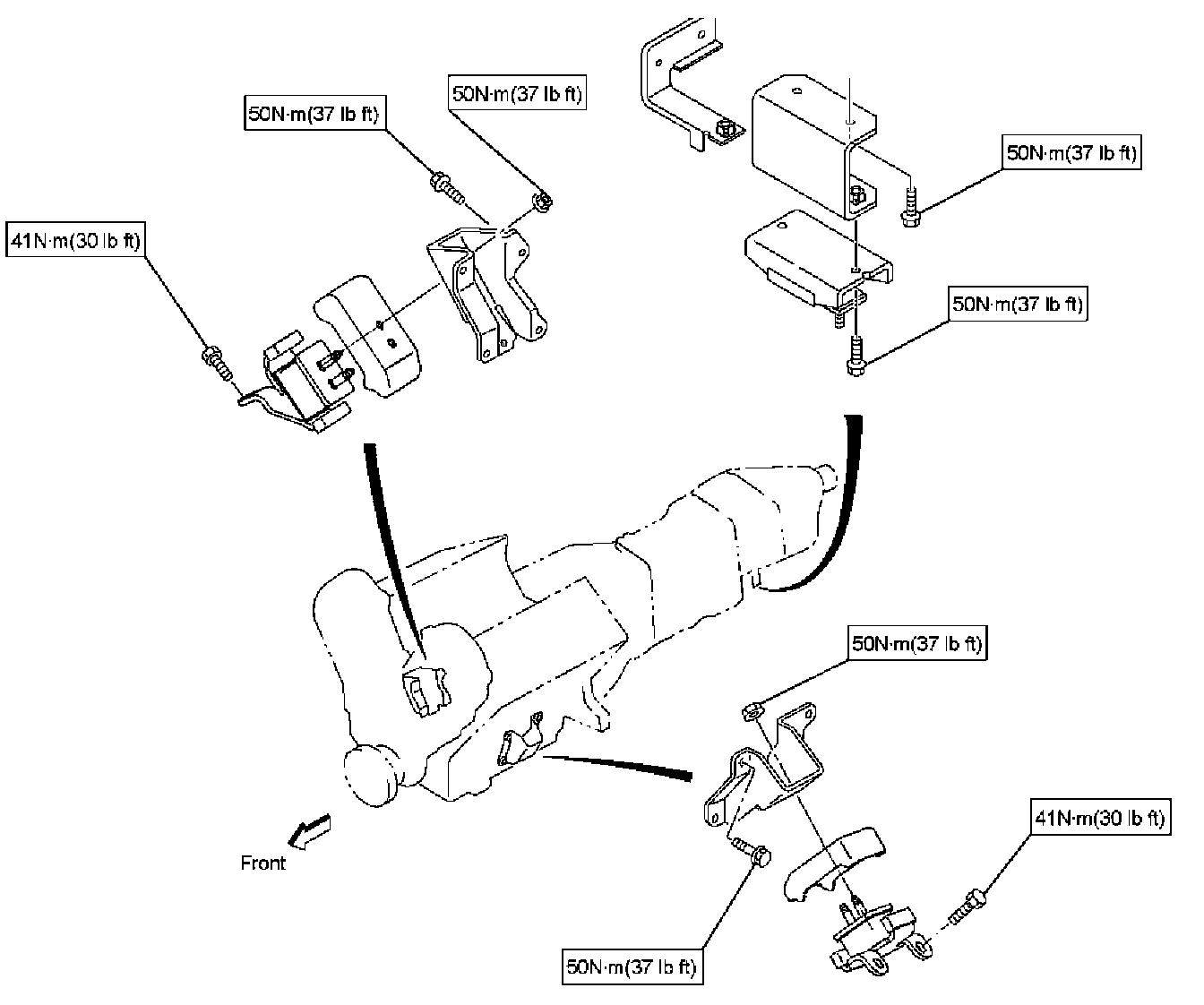

Engine Mount

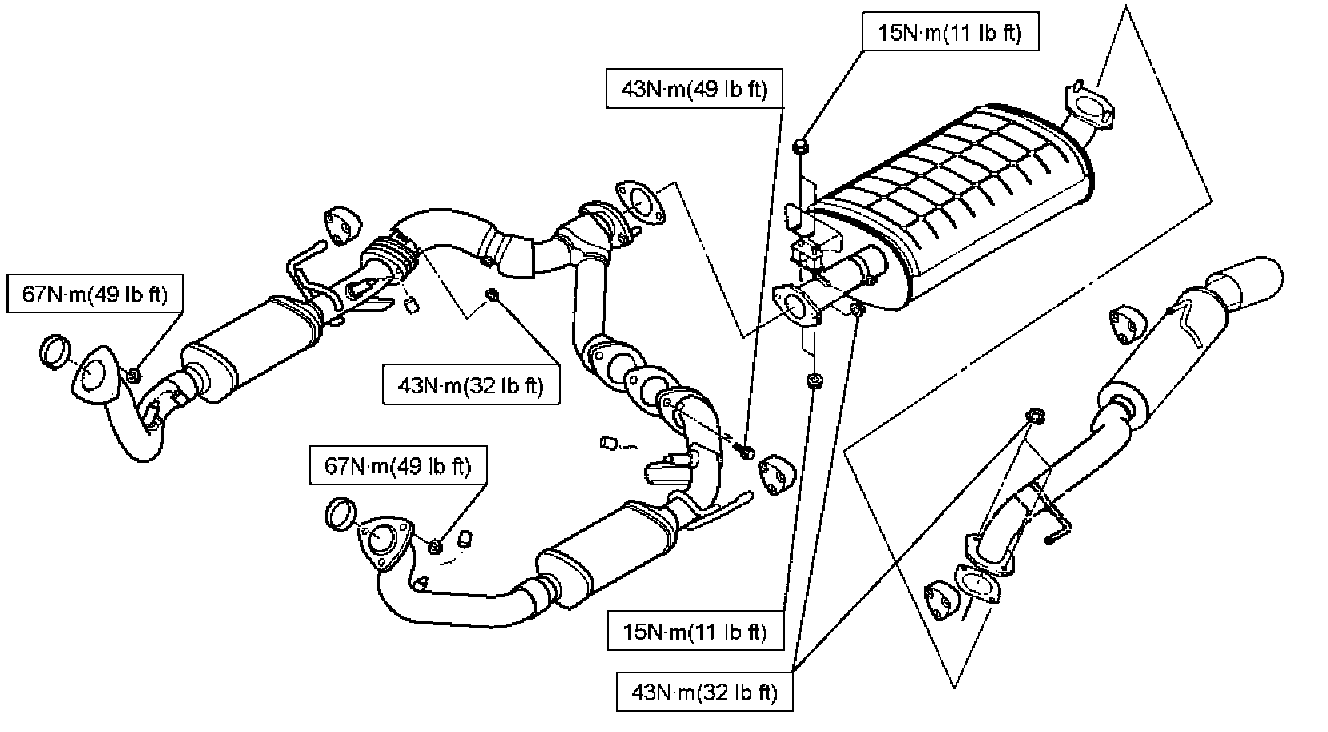

Exhaust system torque specifications

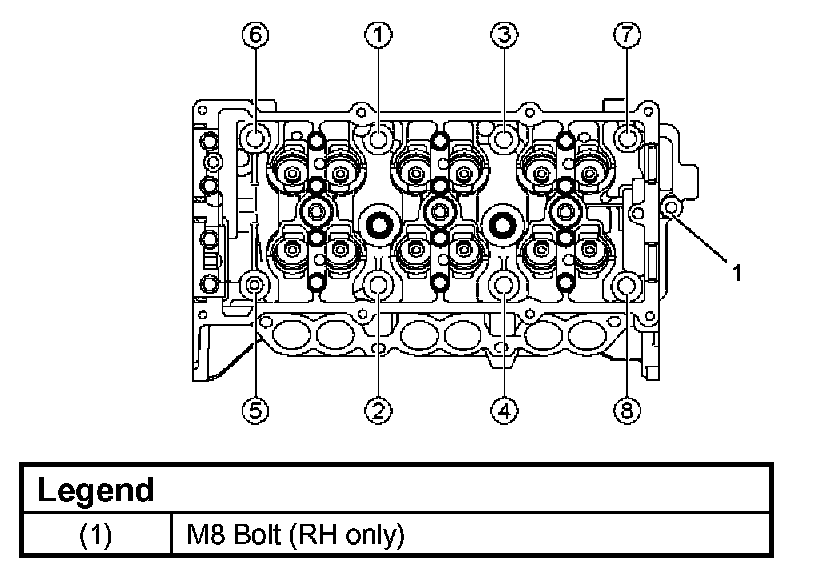

Cylinder Head bolt
Using J-24239-01 cylinder head bolt wrench, tighten bolts in numerical order as shown in the illustration to the specified torque.
Torque M11 Bolt
Temporary 29 Nm (21.4 ft. lbs.)
Final 64 Nm (47.2 ft. lbs.)
Torque M8 Bolt
Temporary 21 Nm (15.5 ft. lbs.)
Intake manifold bolts
Install common chamber and tighten bolts and nuts to the specified torque.
Torque:
Bolt 18 Nm (13.3 ft. lbs.)
Nut 18 Nm (13.3 ft. lbs.)
Install throttle body and tighten bolts to the specified torque.
Torque 10 Nm (7.4 ft. lbs.)
Camshaft bearing bolts
Tighten sixteen bolts on numerical order an one side bank as shown in the illustration.
Torque 10 Nm (74 ft. lbs.)
Main bearing cap bolts
Install main bearing caps, oil gallery and crank case bolts in the order show, and tighten each bolt to the specified torque.
Torque 39 Nm (28.8 ft. lbs.)
Rod Bearing Torque
Torque: 54 Nm (39.8 ft. lbs.)
Crankshaft pulley
Install crankshaft pulley using J-8614-01, hold the crankshaft pulley and tighten center bolt to the specified torque.
Torque 167 Nm (123 ft. lbs.)
Flywheel Bolt
Tighten fixing bolts to the specified torque.
Torque 54 Nm (40 ft. lbs.)
Oil Pump bolts
Tighten the oil pump fixing bolts.
Torque 25 Nm (18.4 ft. lbs.)
Exhaust Manifold nuts-LH & RH
Left Hand Manifold:
Install exhaust manifold and tighten exhaust manifold fixing nuts to the specified torque with new nuts.
Torque 57 Nm (42 ft. lbs.)
Water pump sequence
Install water pump assembly and tighten bolts to the specified torque.
Torque 25 Nm (18.4 ft. lbs.)
Tightening order
The tightening order are in the illustrate.
