Engine Cranks But Does Not Run

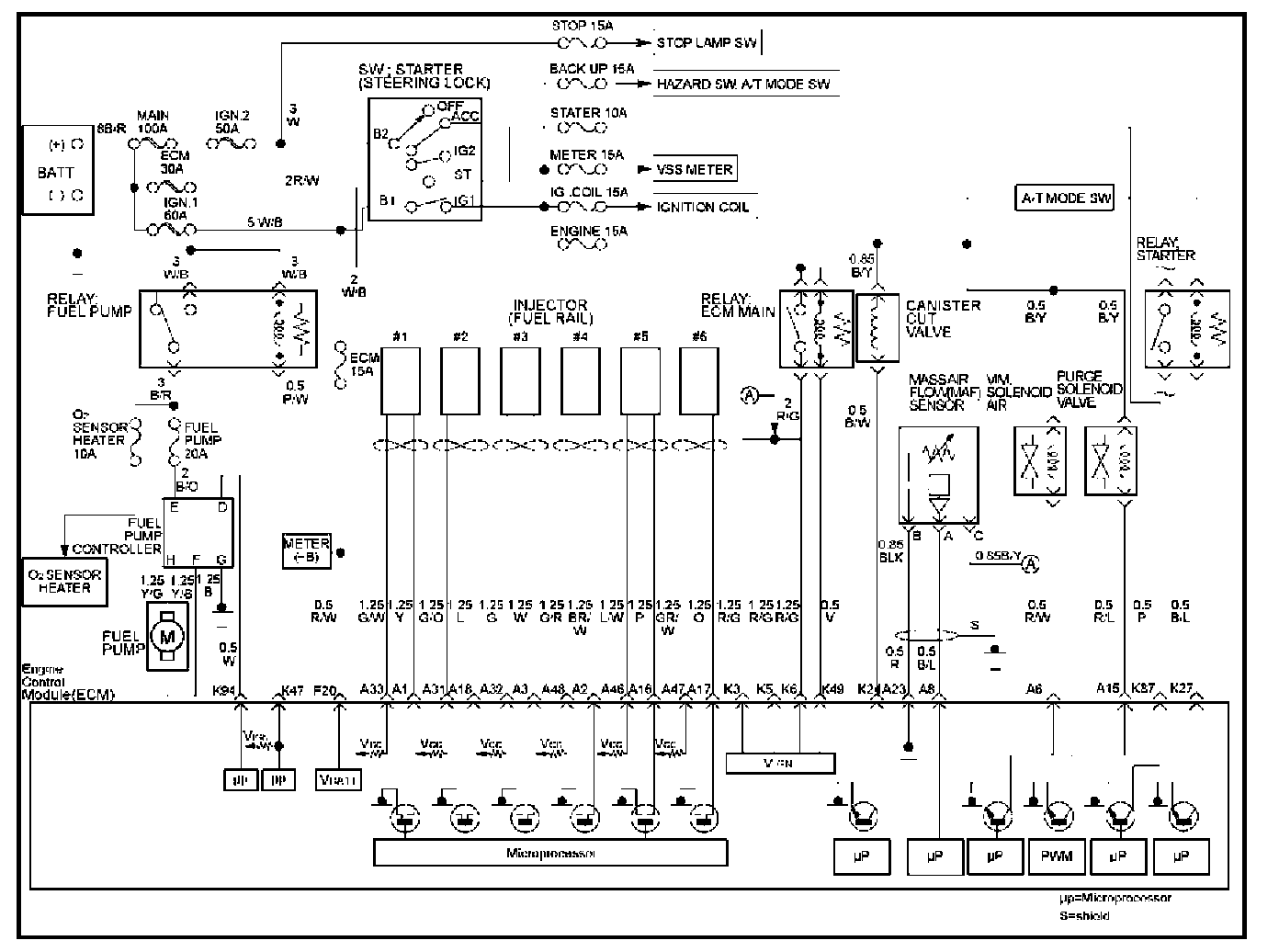

Engine Cranks But Will Not RunCircuit Description
The electronic Ignition system uses a coil-at-plug method of spark distribution. ECM controls the ignition timing based on the CKP 58X signals.
During crank, the ECM monitors the CKP 58X signal. The CKP signal is used to determine which cylinder will fire first. After the CKP 58X signal has been processed by the ECM, it will command all six injectors to allow a priming shot of fuel for all the cylinders. After the priming, the injectors are left "OFF" during the next six 58X reference pulses from the CKP. This allows each cylinder a chance to use the fuel from the priming shot. During this waiting been received by the ECM. If the camshaft position signal is not present at start-up, the ECM will begin sequential fuel delivery with a 1 -in-6 chance that fuel delivery is correct.
Diagnostic Aids
An intermittent problem may be caused by a poor connection, rubbed - through wire insulation or a wire broken inside the insulation. Check for the following items:
- Poor connection or damaged harness - Inspect the ECM harness and connectors for improper mating, broken locks, improperly formed or damaged terminals, poor terminal-to-wire connection, and damaged harness.
- Faulty engine coolant temperature sensor - Using a Tech 2, compare engine coolant temperature with intake air temperature on a completely cool engine. Engine coolant temperature should be within 10 °C of intake air temperature. If not, replace the ECT sensor.
Test Description
Number(s) below refer to the step number(s) on the Diagnostic Chart.
5. An obvious cause of low fuel pressure would be an empty fuel tank.
6. The engine will easily start and run if a few injectors are disabled. It is not necessary to test all injectors at this time since this step is only a test to verify that all of the injectors have not been disabled by fuel contamination.
7. A blinking test light verifies that the ECM is monitoring the 58X crankshaft reference signal and is capable of activating The injectors. If there is an open or shorted driver circuit, DTCs 201 - 206 and a misfire DTC 300 - 306 should be set.
13. By using a spark tester, each ignition coil's ability to produce 25,000 volts is verified.
19. If there is an open or shorted driver circuit, DTCs 201 - 206 and a misfire DTC 301 - 306 should be set. All six injector driver circuits can be checked at one time without removing the intake manifold if a J 39021 - 95 test light is available. This is the alternative procedure:
- With the ignition "OFF", disconnect the gray connector located at the rear of the air filter, attached to a bracket on the purge canister.
- Connect test light J 39021 - 95 to the connector. Do any of the light constantly illuminate or fail to blink when the engine is cranked? If so, repair the short or open circuit, or replace the ECM if indicated.
This procedure only tests the driver circuit as far as the test connection, so step 25 is added to test the circuit all the way to the injector.
Steps 1 - 2:
Steps 3 - 9:

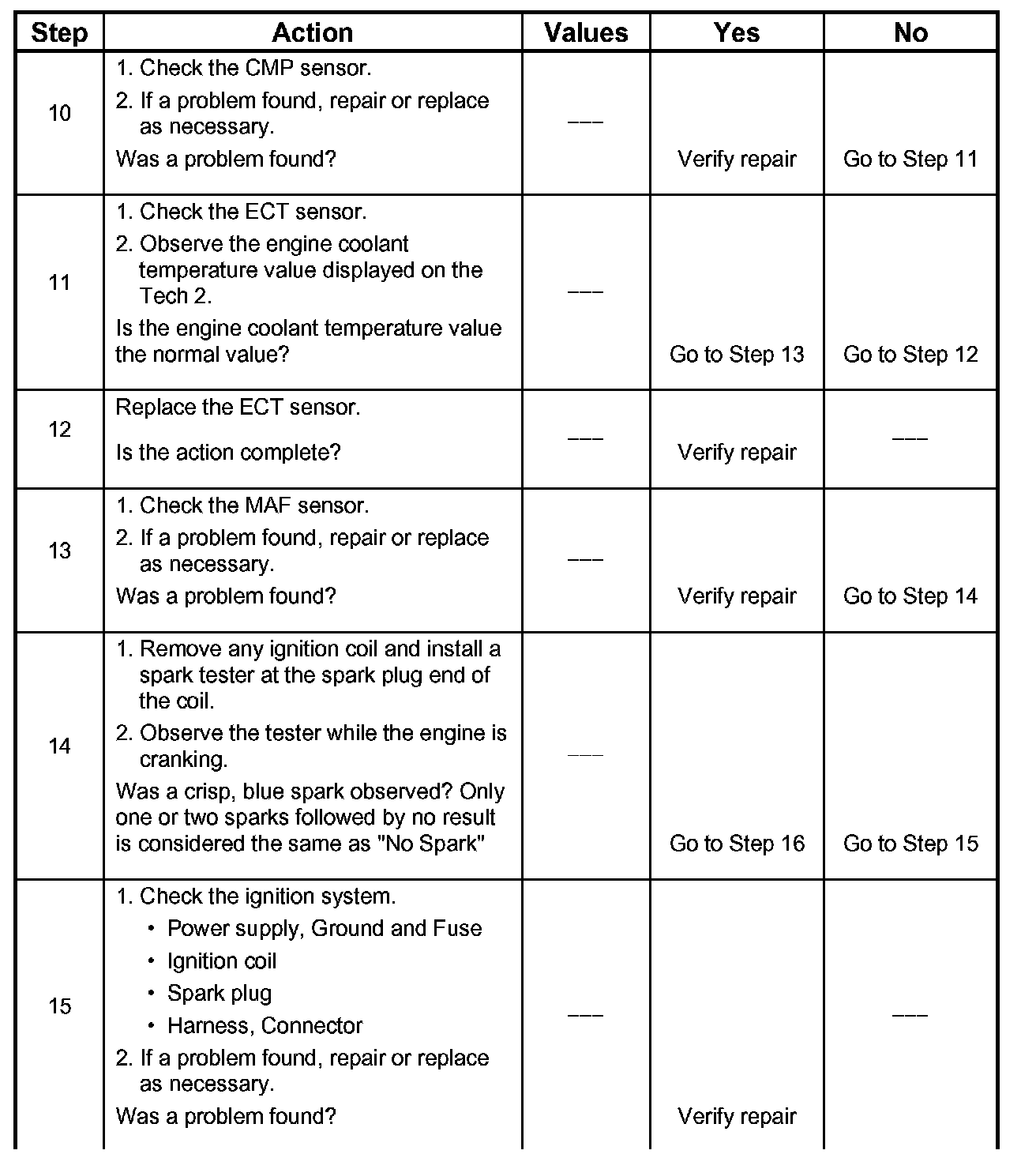

Steps 10 - 15:
Steps 16 - 19:
Steps 20 - 23:
