Home >> Isuzu >> 2004 >> Rodeo 4WD V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Locations

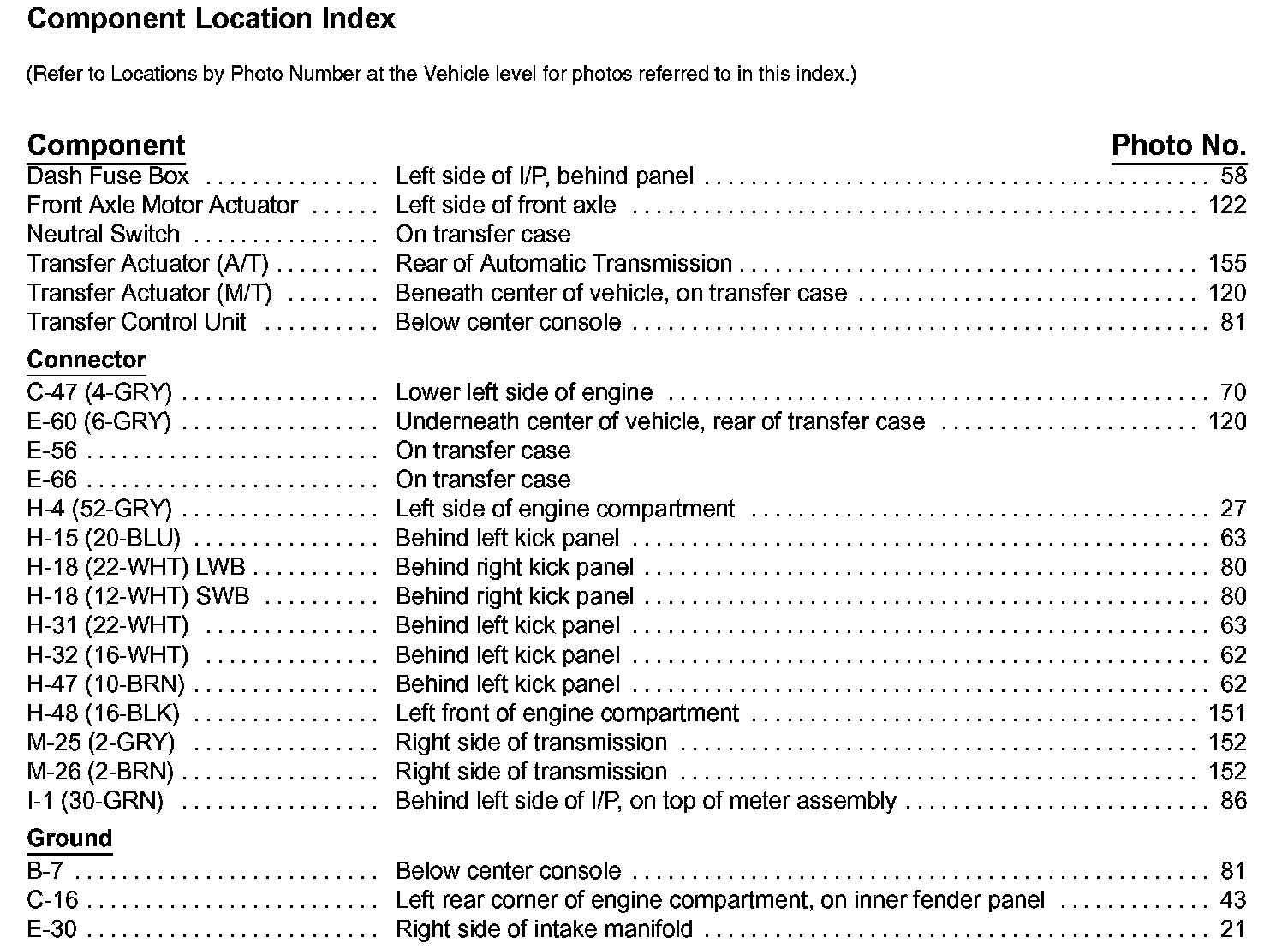

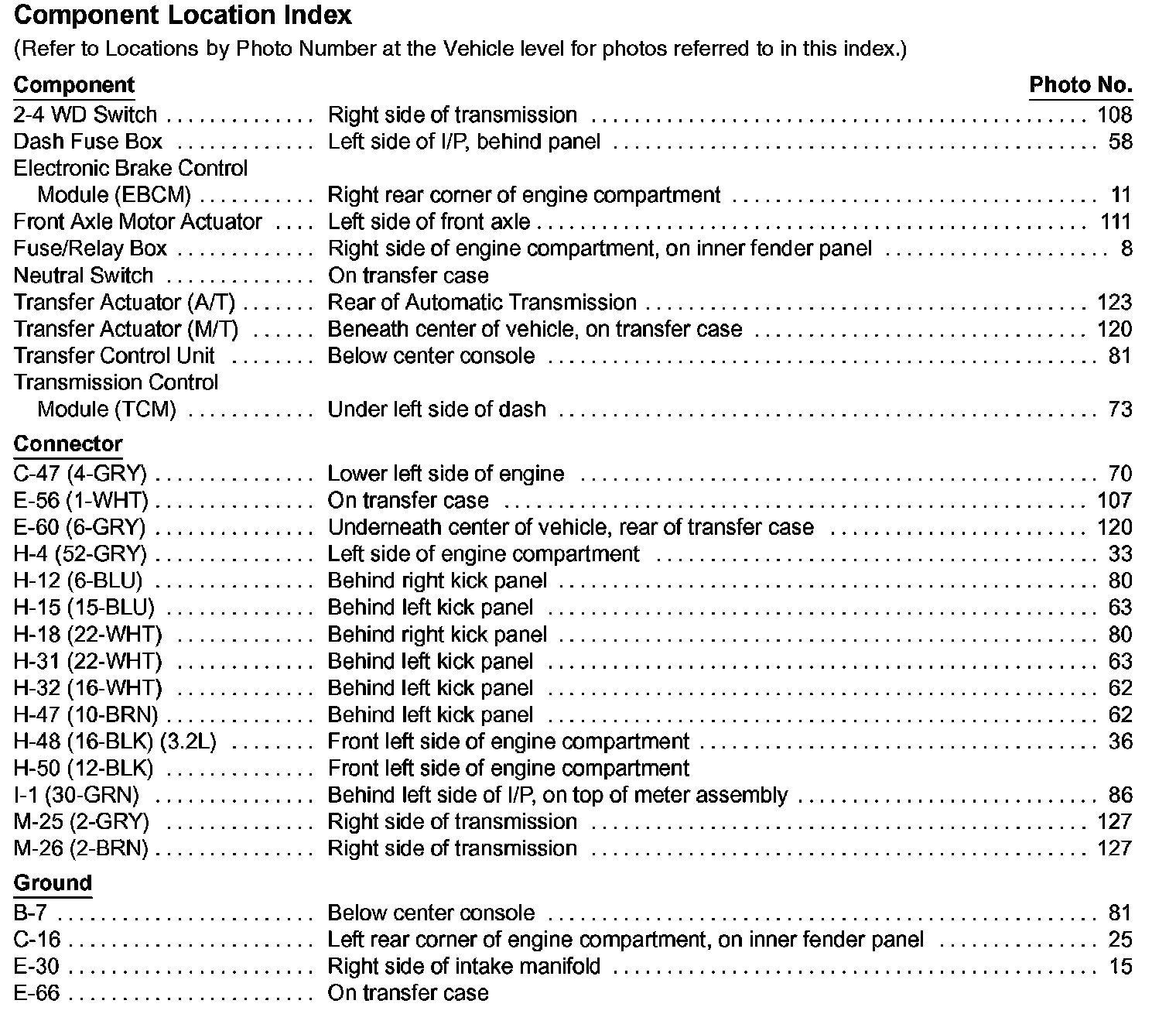

Transfer Case: Locations

Shift-On-The-Fly System:



Shift-On-The-Fly System:
