Vehicle, Engine and Transmission, Transfer Case, Axle ID, and VIN Location, Derivative and Usage

Vehicle, Engine and Transmission, Transfer Case, Axle ID, and VIN Location, Derivative and Usage

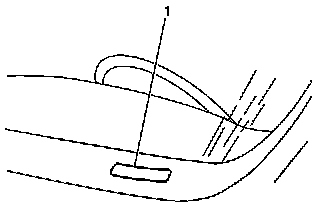

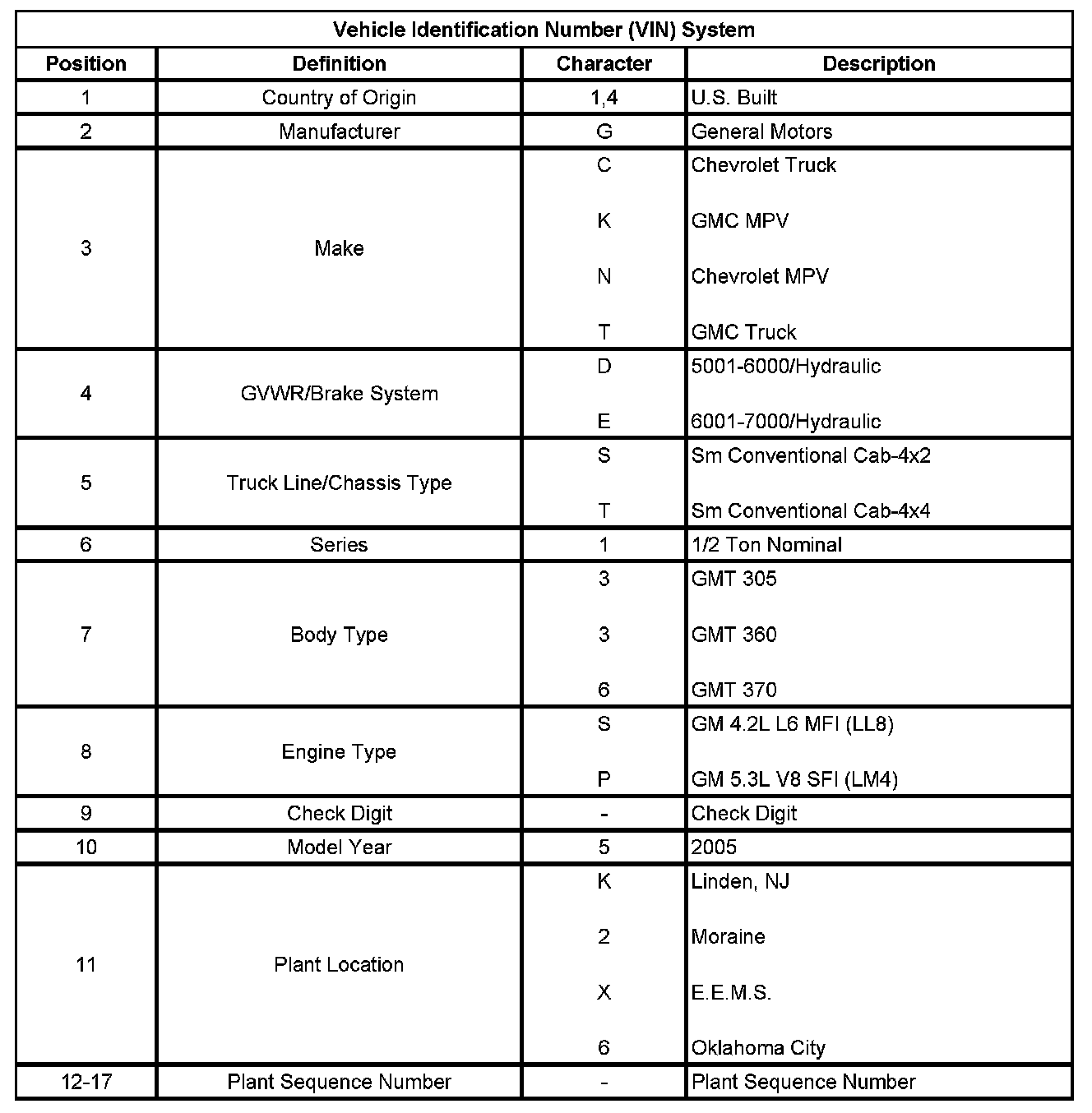

The vehicle identification number (VIN) plate (1) is the legal identifier of the vehicle. The VIN plate is located on the upper LH corner of the instrument panel (I/P) and can be seen through the windshield from the outside of the vehicle:





Engine ID and VIN Derivative Location 4.2L

Refer to Engine Identification in Engine - 4.2L.

Engine ID and VIN Derivative Location 5.3L

Refer to Engine Identification in Engine - 5.3L.

4L60-E/4T65-E Transmission ID and VIN Derivative Location

Refer to Transmission Identification Information in Automatic Transmission - 4L60-E/4T65-E.
