Coat Hook Replacement

Coat Hook Replacement

Removal Procedure

1. Access the coat hooks from the cargo area.




2. If the vehicle is equipped with diversity antennas, remove the bolt and coat hook from the roof panel.
3. If the vehicle is NOT equipped with diversity antennas, perform the following:

1. Loosen the bolt retaining the coat hook to the roof panel.
2. Release the rear headliner push pins.




3. Lower the rear of the headliner far enough to access the plastic and metal washers.
4. Hold the metal washer from rotating and remove the bolt from the coat hook.
5. Remove the coat hook from the vehicle.

Installation Procedure

1. If the vehicle is NOT equipped with diversity antennas, perform the following:

1. Install the bolt to the coat hook.
2. Install the bolt and coat hook assembly to the headliner.
3. Lower the rear of the headliner far enough to access the headliner substrate.




4. Install the plastic washer to the bolt.
5. Install the metal washer to the bolt.
6. Hold the metal washer from rotating and install the coat hook bolt to the metal washer.
7. Install the bolt retaining the coat hook to the roof panel.

Notice: Refer to Fastener Notice in Service Precautions.

8. Tighten the retaining bolt.

Tighten the bolt to 10 N.m (88 lb in).

9. Install the rear headliner push pins.

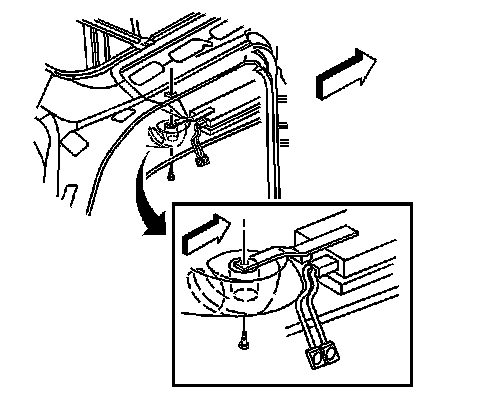

2. If the vehicle is equipped with diversity antennas, Install the retaining bolt through the coat hook.
3. Install the metal washer to the retaining bolt.
4. Index the mounting hole on the antenna module grounding strap to the roof panel welded nut.
5. Install the coat hook to the roof panel, positioning the open end of the coat hook inboard.

Notice: Refer to Fastener Notice in Service Precautions.

6. Tighten the retaining bolt.

Tighten bolt to 10 N.m (88 lb in).
