Inner Riser Assembly Replacement - Rear No. 2

Inner Riser Assembly Replacement - Rear No. 2

Removal Procedure

1. Remove the seat from the vehicle.
2. Remove the seat belt buckle assembly.
3. Remove the seat latch rod.
4. Remove the seat riser latch assembly.
5. Remove the seat adjuster cross bar.

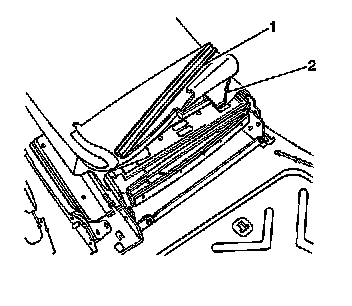

6. Unhook the J-strip (1) from the bottom of the seat back cover.
7. Remove the hog rings (2) from the seat back cover flaps.
8. Pull the seat cover up to expose the rear seat back mounting bolts.

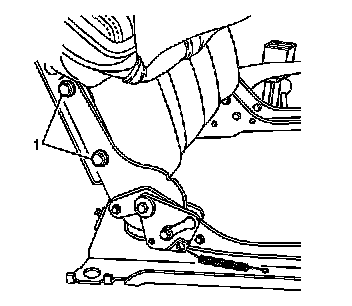

9. Remove the two rear seat back mounting bolts (1) securing the inner riser assembly to the seat back frame.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the two rear seat back mounting bolts (1) securing the inner riser assembly to the seat back frame.

Tighten the rear seat back mounting bolts to 25 N.m (18 lb ft).

2. Pull the seat cover back down over the seat pad.




3. Secure the seat back cover flaps to the pad with the hog rings (2).
4. Install the J-strip (1) on the bottom of the seat back cover.
5. Install the seat adjuster cross bar.
6. Install the seat riser latch assembly.
7. Install the seat latch rod.
8. Install the seat belt buckle assembly.
9. Install the seat in the vehicle.
