Stabilizer Shaft Insulator Replacement

Stabilizer Shaft Insulator Replacement

Removal Procedure
1. Raise and support the vehicle.

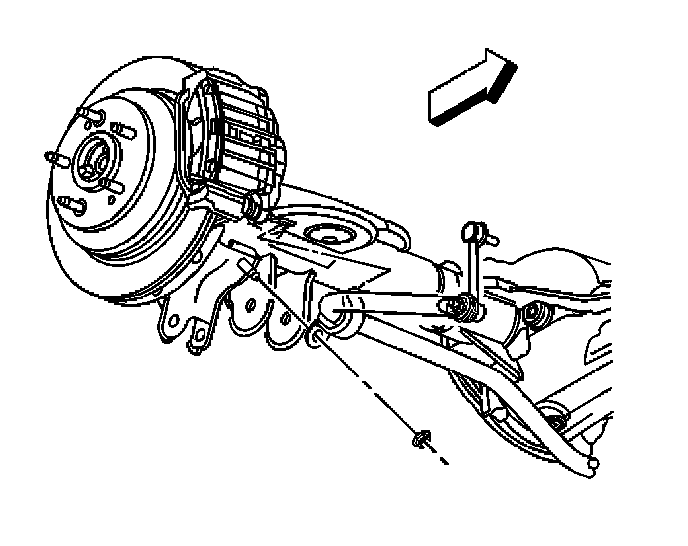

2. Remove the stabilizer shaft insulator clamp mounting nut.
3. Remove the stabilizer shaft insulator clamp.





4. Remove the stabilizer shaft insulator from the stabilizer shaft.

Installation Procedure
1. Install the stabilizer shaft insulator to the stabilizer shaft.
2. Install the stabilizer shaft insulator clamp.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the stabilizer shaft insulator clamp mounting nut.
^ Tighten the stabilizer shaft insulator clamp mounting nut to 70 Nm (52 ft. lbs.).





3. Lower the vehicle.
