Removal and Replacement

Lift Gate Control Module Replacement

Removal Procedure
1. Remove the liftgate window garnish molding.
2. Remove the liftgate trim panel.

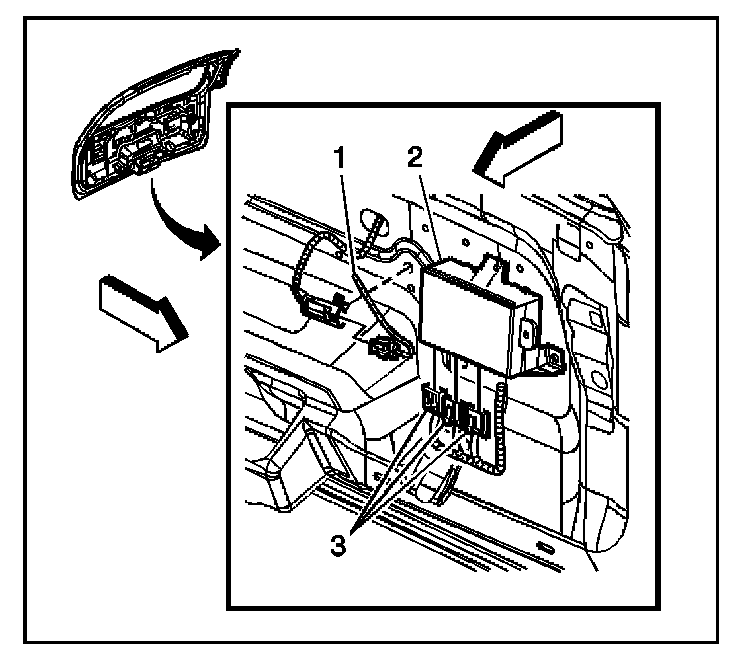

3. Disconnect the electrical connectors (3) from the module as necessary.
4. Remove the bolts that retain the module to the liftgate.
5. Remove the module from the liftgate.

Installation Procedure
1. Install the module to the liftgate.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts that retain the module to the liftgate.

Tighten: Tighten the bolts to 10 Nm (89 lb in).

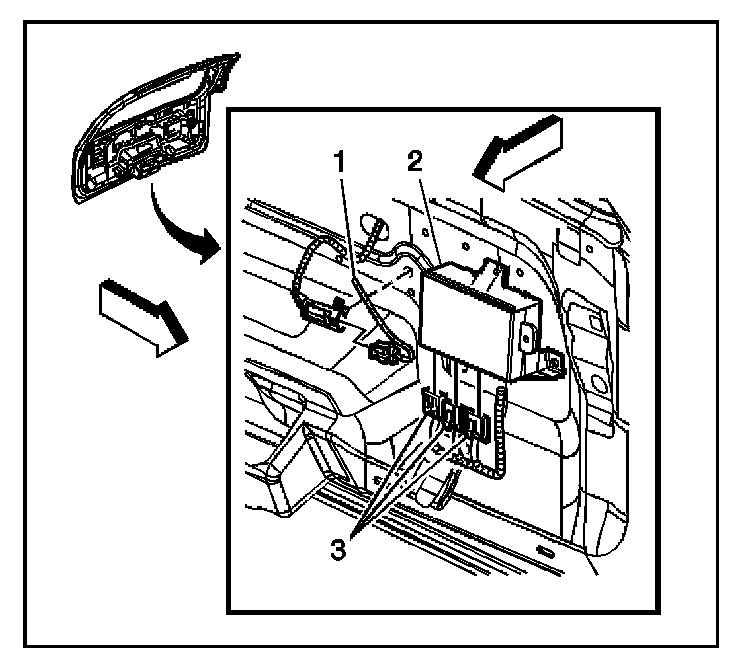

3. Connect the electrical connectors (3) as necessary.
4. Install the liftgate trim panel.
5. Install the liftgate window garnish molding.
6. Reprogram the liftgate control module. Refer to Lift Gate Control Module Programming.
