Rearview Mirror Replacement

Rearview Mirror Replacement

Removal Procedure

1. Disconnect the wire cover from the upper mirror base.

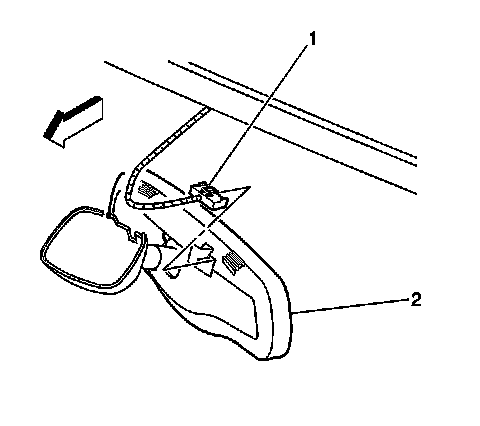

2. Use a flat-bladed tool in order to disconnect the electrical connector (1) from the mirror (2), if equipped.
3. Using a TORX (R) screwdriver, loosen the set screw that holds the mirror base to the windshield button.

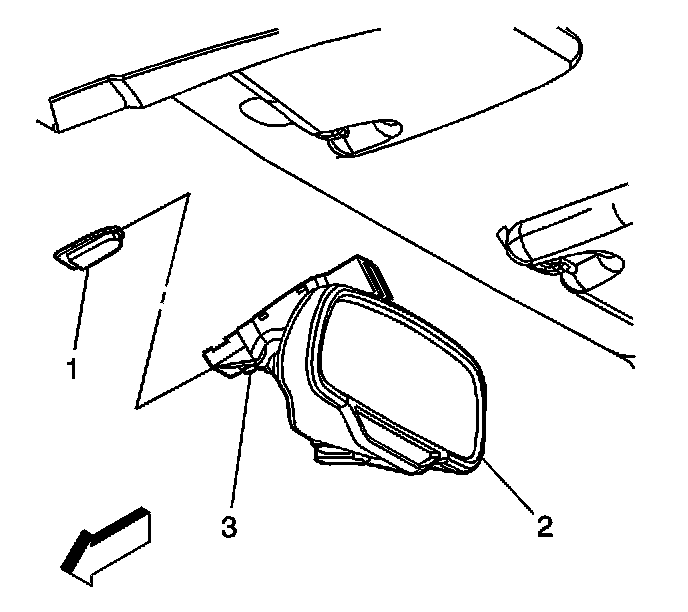

4. Slide the mirror upward off of the rearview mirror button (1).

Installation Procedure




1. Slide the mirror (2) onto the support button (1).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the set screw.

Tighten the set screw to 2 N.m (18 lb in).

3. Connect the wire cover to the upper mirror base.




4. Connect the electrical connector (1), if equipped.
5. Reposition the mirror.
