Seat Riser Latch Assembly Replacement - Rear No. 2

Seat Riser Latch Assembly Replacement - Rear No. 2

Removal Procedure

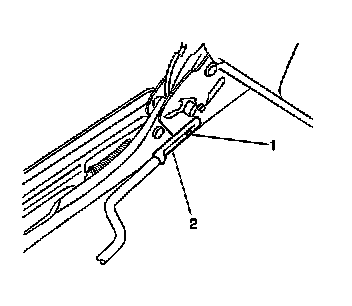

1. Lift the seat cushion to expose the seat riser latch assembly (2).
2. Remove the seat riser latch assembly (2) from the outer riser assembly stud (1).

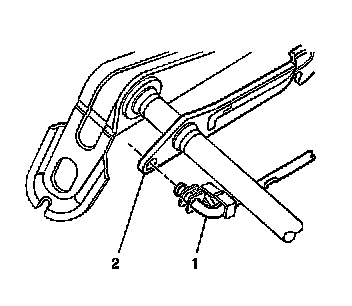

3. Remove the seat riser latch assembly (1) from the seat latch rod (2).

Installation Procedure




1. Install the seat riser latch assembly (1) to the seat latch rod (2).




2. Install the seat riser latch assembly (2) to the outer riser assembly stud (1).
