Body - Rear License Pocket Perimeter Gasket Loose
SB08-11-S001Issue Date: JANUARY 2008
Rear License Plate Pocket Perimeter Gasket Loose/Out Of Position Or Excessive Amount Of Adhesive
(This Bulletin Supercedes SB07-11-S002)
Affected Vehicles:
2003-2008 Isuzu Ascender
Service Information
This bulletin is being revised to update model years and parts information.
Condition:
Some customers may comment that the insulating perimeter seal or gasket on the backside edge of the license plate housing/pocket appears to be shrinking or becomes pulled away from the edge of the license plate housing/pocket. Some customers may also comment about excessive amounts of adhesive oozing from the gasket.
Possible Cause:
This condition may be caused by changes in temperature which may cause the plastic license plate housing to expand and contract. When this occurs the license plate housing gasket seal may be caught and pulled under the housing/pocket.
Correction:
Install new gasket using updated retainer tightening sequence.
Service Procedure
A new gasket without the adhesive has been released for service.
Technicians are to replace the rear license plate pocket perimeter gasket using the following procedure:
NOTE:
Excessive amounts of adhesive, which may have oozed from the gasket, may be cleaned using GM Tar and Road Oil Remover, P/N 8-01050-172-0 or the equivalent.
1. Remove the rear license plate pocket assembly. Refer to the License Plate Pocket Replacement procedure in the Body Rear End (2006 MY and prior) or Exterior Trim sub-section of the Service Manual.
2. Remove the rear license plate pocket perimeter gasket.

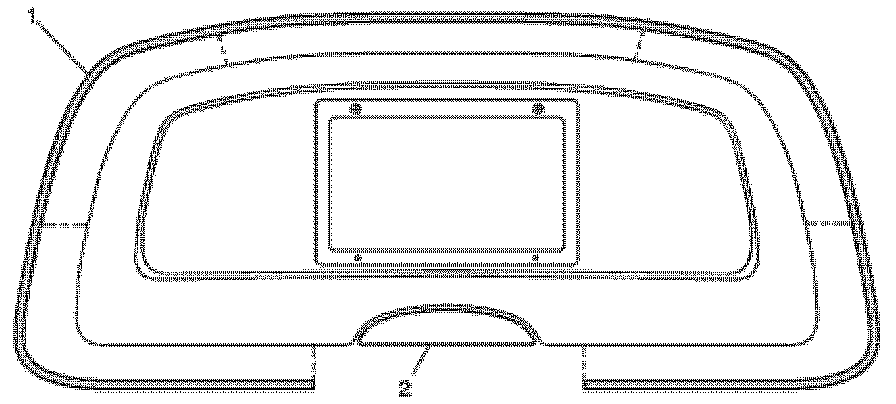

3. Install a new license plate pocket perimeter gasket onto the backside edge of the pocket housing as shown starting at the middle of the seal at the top center of the pocket. This will ensure that the seal will be even. When properly installed there will be 25-50 mm (1-2 in) on either side of the liftgate release handle (2) that the seal (1) does not reach. DO NOT attempt to install the seal on the liftgate directly below the release handle.
4. Install the license plate pocket assembly onto the liftgate. Refer to the License Plate Pocket Replacement procedure in the Body Rear End (2006 MY and prior) or Exterior Trim sub-section of the Service Manual. Modify the tightening sequence for the screws that retain the pocket assembly to the liftgate as follows:
^ Push the entire rear license plate pocket assembly upward in the opening of the liftgate. Inspect the perimeter gasket to see if it is properly retained.
Tighten
Tighten the rear license plate pocket assembly retaining nuts to 5 Nm (44 lb in) in the following order.
^ Tighten the upper left retaining nut first.
^ Tighten the upper right retaining nut second.
^ Tighten the three lower retaining nuts in any order.
Parts Information
Always refer to AIPDN publications for the most current parts information.
Warranty Claim Information
Always refer to the Isuzu Service Policy Procedure Manual for specific details on warranty coverage and policies. Reference published Labor Time Guide for claim processing if applicable.
