Electronic Throttle Control Module: Service and Repair

Throttle Actuator Control (TAC) Module Replacement

Removal Procedure

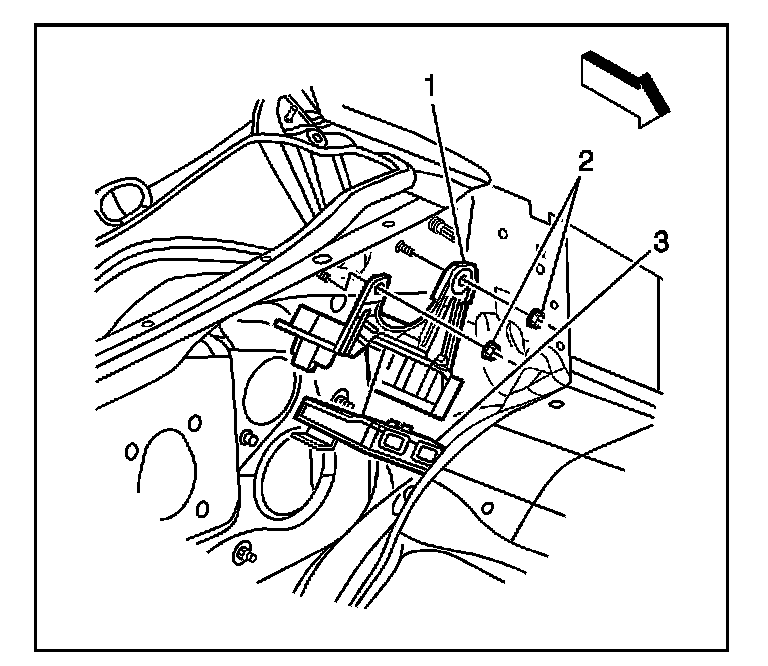

1. Remove the bulk connector from the bracket, insert a small flat-bladed tool to disengage the clip.

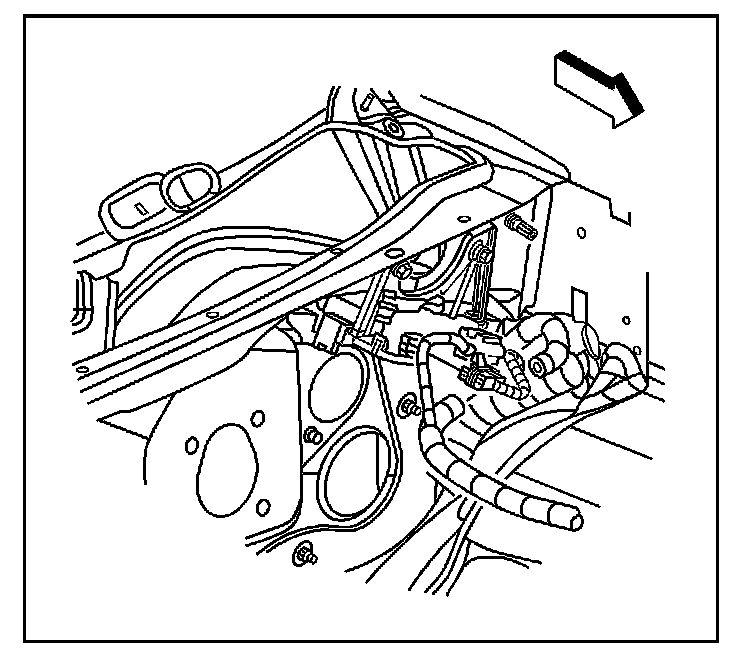

2. Disconnect the instrument panel (I/P) harness electrical connector.

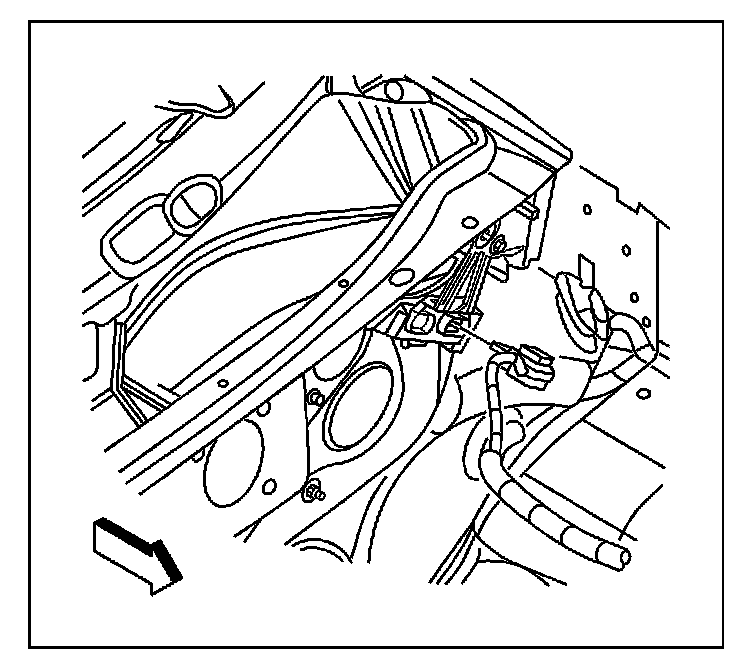

3. Disconnect the engine harness electrical connector.

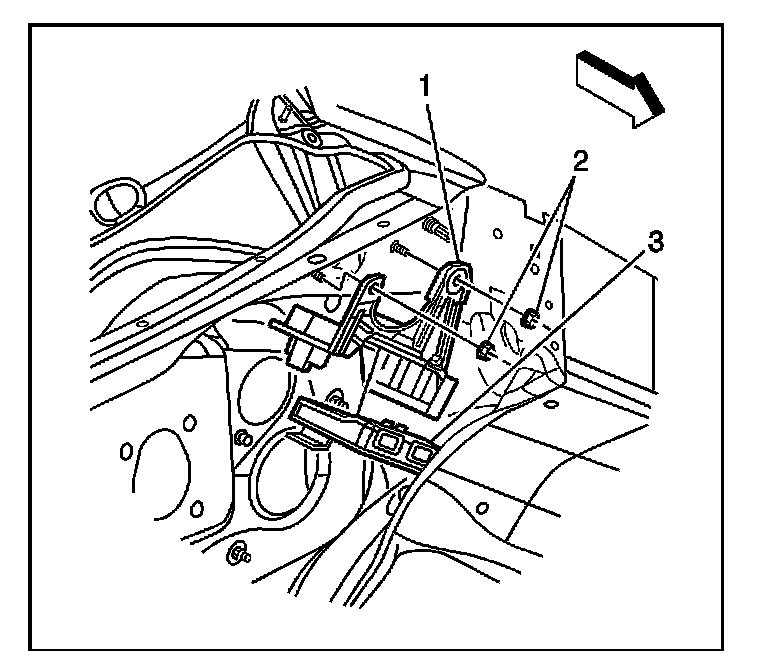

4. Release the retaining tab on the side of the throttle actuator control (TAC) module.
5. Remove the TAC module from the retaining bracket.







6. If necessary, remove the bracket nuts and bracket.



Installation Procedure


1. If necessary, install the bracket and nuts.


Tighten the nuts to ..........................9 N.m (80 lb in).

2. Install the TAC module to the retaining bracket.







3. Snap the TAC module into retaining tab.







4. Connect the engine harness electrical connector.
5. Connect the I/P harness electrical connector.







6. Install the bulk connector to the bracket.
