Navigation System: Service and Repair

ANTENNA REPLACEMENT - GLOBAL POSITIONING SYSTEM (GPS) (MODULE ASSEMBLY RADIO ANTENNA)

REMOVAL PROCEDURE

IMPORTANT: It is not necessary to lower the steering column to remove the radio antenna module.

1. Remove the navigational radio.

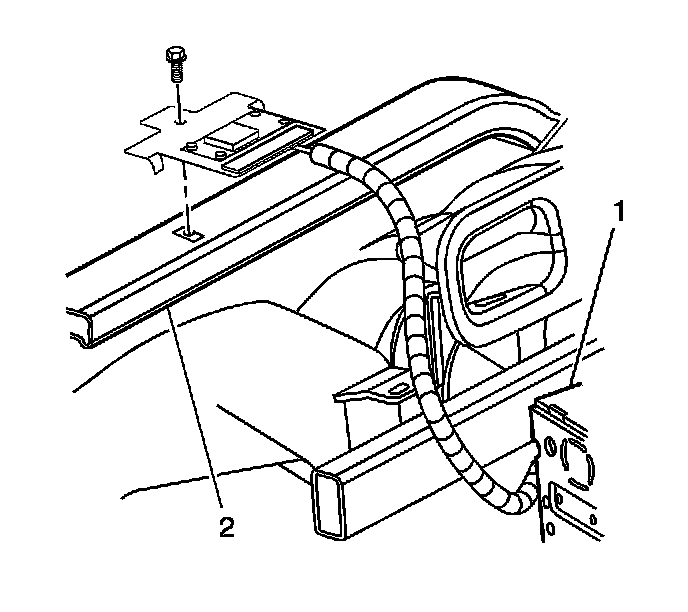

2. Disconnect the electrical connector from the navigational radio (1).
3. Partially remove the instrument panel (I/P) assembly from the I/P structure, to gain access to the antenna module retaining screw. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel Gages and Console.
4. Remove the screw retaining the radio antenna module to the cross-car beam (2).
5. Remove the antenna module from the vehicle.

INSTALLATION PROCEDURE




1. Install the antenna module to the vehicle.
2. Install the screw retaining the antenna module to the cross-car beam (2).
3. Tighten the screw.

Tighten the screw to 2.5 N.m (22 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the I/P assembly.
5. Connect the electrical connector to the navigational radio (1).
6. Install the navigational radio.
