Wheel Speed Sensor Replacement - Rear

Wheel Speed Sensor Replacement - Rear

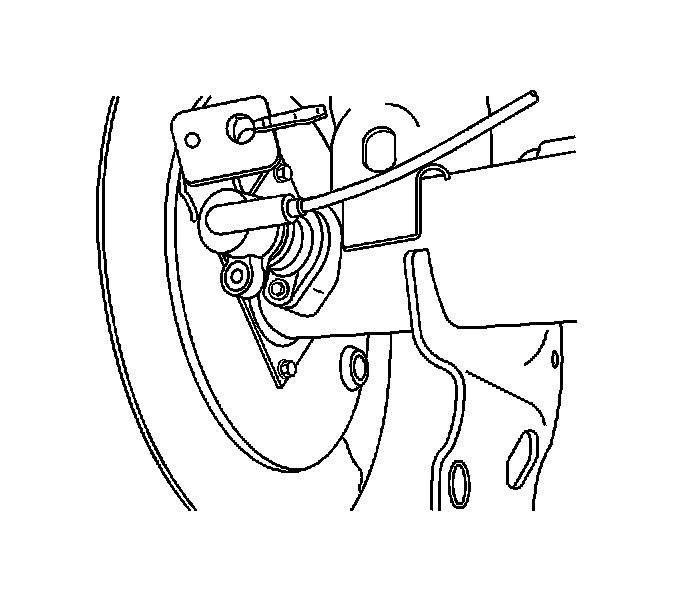

Removal Procedure





1. Raise the vehicle.
2. Disconnect the electrical connector.
3. Remove the wheel speed sensor retaining bolt.
4. Remove the wheel speed sensor.

Installation Procedure





1. Using a twisting motion, install the wheel speed sensor until fully seated.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the wheel speed sensor retaining bolt.
^ Tighten the wheel speed sensor retaining bolt to 13 Nm (115 inch lbs.).
3. Connect the electrical connector.
4. Lower the vehicle.
5. Perform a low speed test to ensure the wheel speed sensor is functioning properly:
1. Start the engine and allow it to idle.
2. Verify the ABS indicator or the traction assist indicator remains illuminated.
3. If the ABS indicator or the traction assist indicator remains illuminated, DO NOT proceed to drive the vehicle until it is diagnosed and repaired. Check the wheel speed sensor electrical connector to ensure it is not damaged and is installed properly. If the lamp remains illuminated, refer to Symptoms - Antilock Brake System. Symptom Related Diagnostic Procedures
4. Select a smooth, dry, clean, and level road or large lot that is as free of traffic and obstacles as possible.
5. Drive the vehicle and maintain a speed of at least 16 km/h (10 mph) for at least 5 seconds.
6. Stop the vehicle and check to see if the ABS indicator or the traction assist indicator is illuminated.
7. If an indicator is illuminated, refer to Diagnostic Starting Point - Antilock Brake System. Initial Inspection and Diagnostic Overview
