Fluid Pressure Sensor/Switch, A/T



Automatic Transmission Inline 20-Way Connector End View

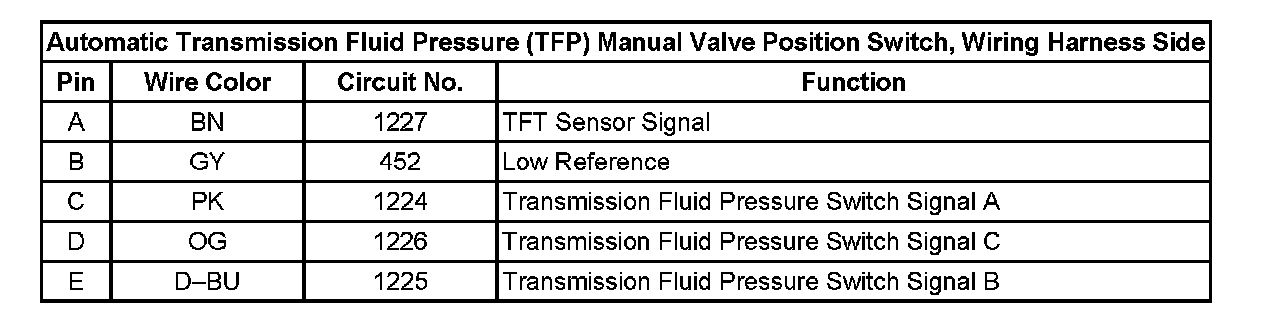

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
