Transmission Position Sensor/Switch, A/T



Automatic Transmission Related Connector End Views

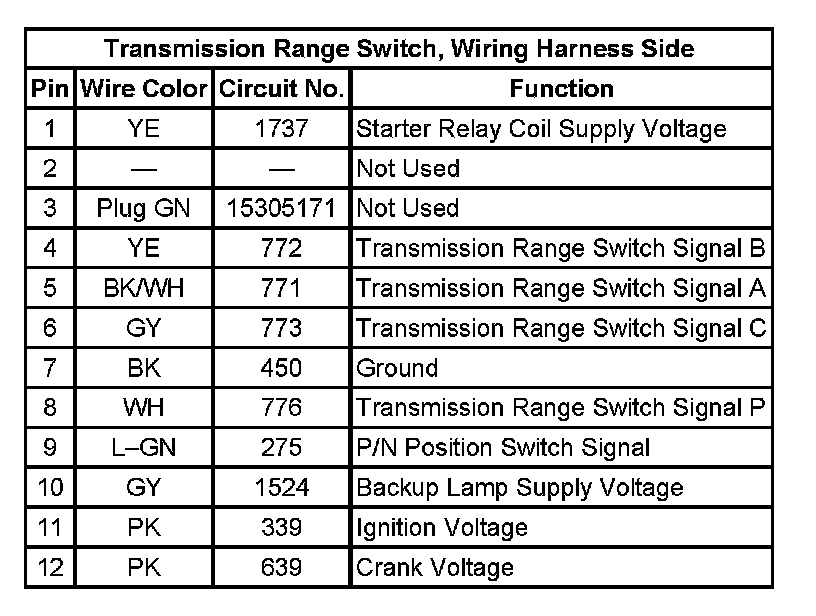

Transmission Range Switch, Wiring Harness Side:
