Fog/Driving Lamp

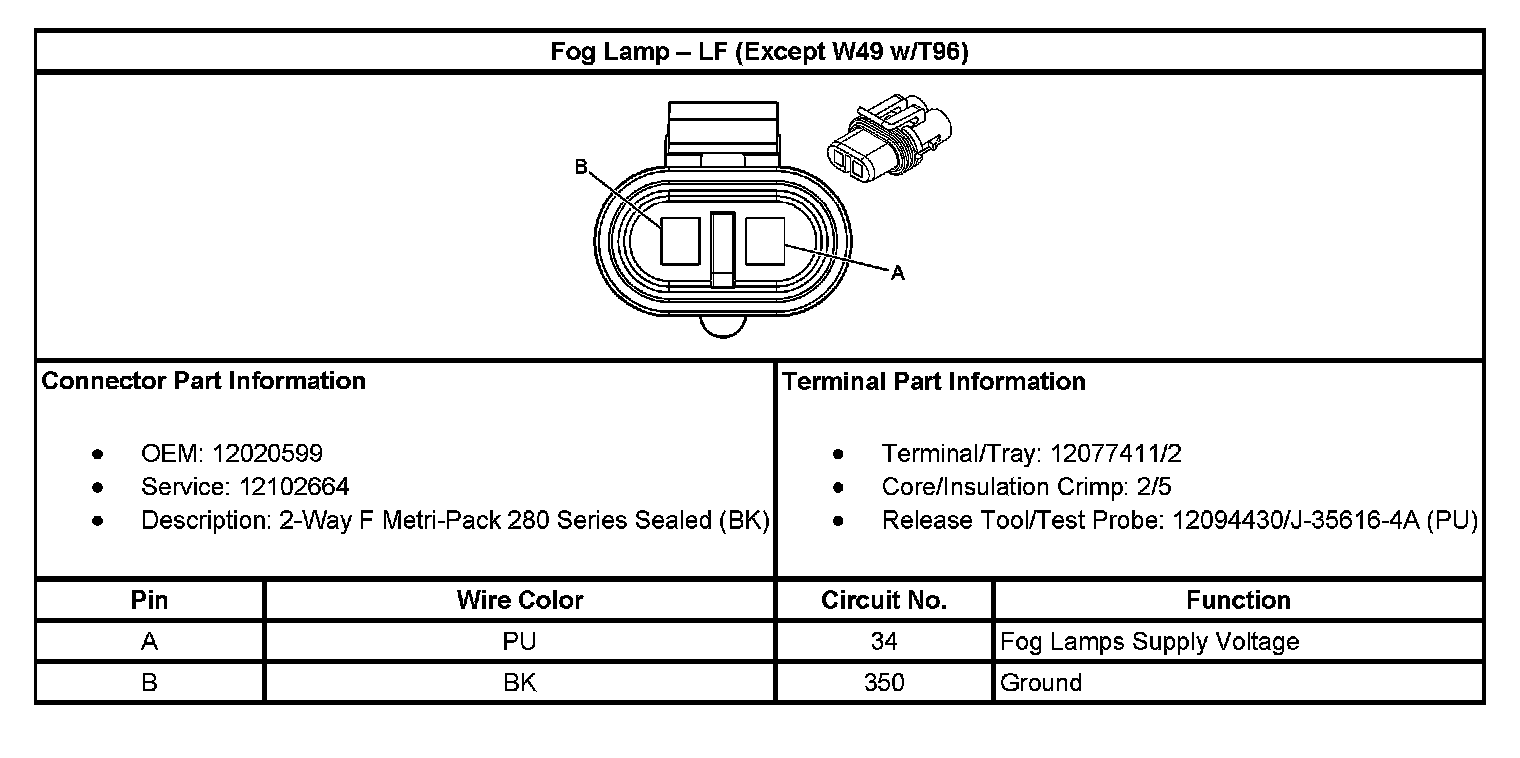

Fog Lamp - LF (Except RPO Code W49 With RPO Code T96):

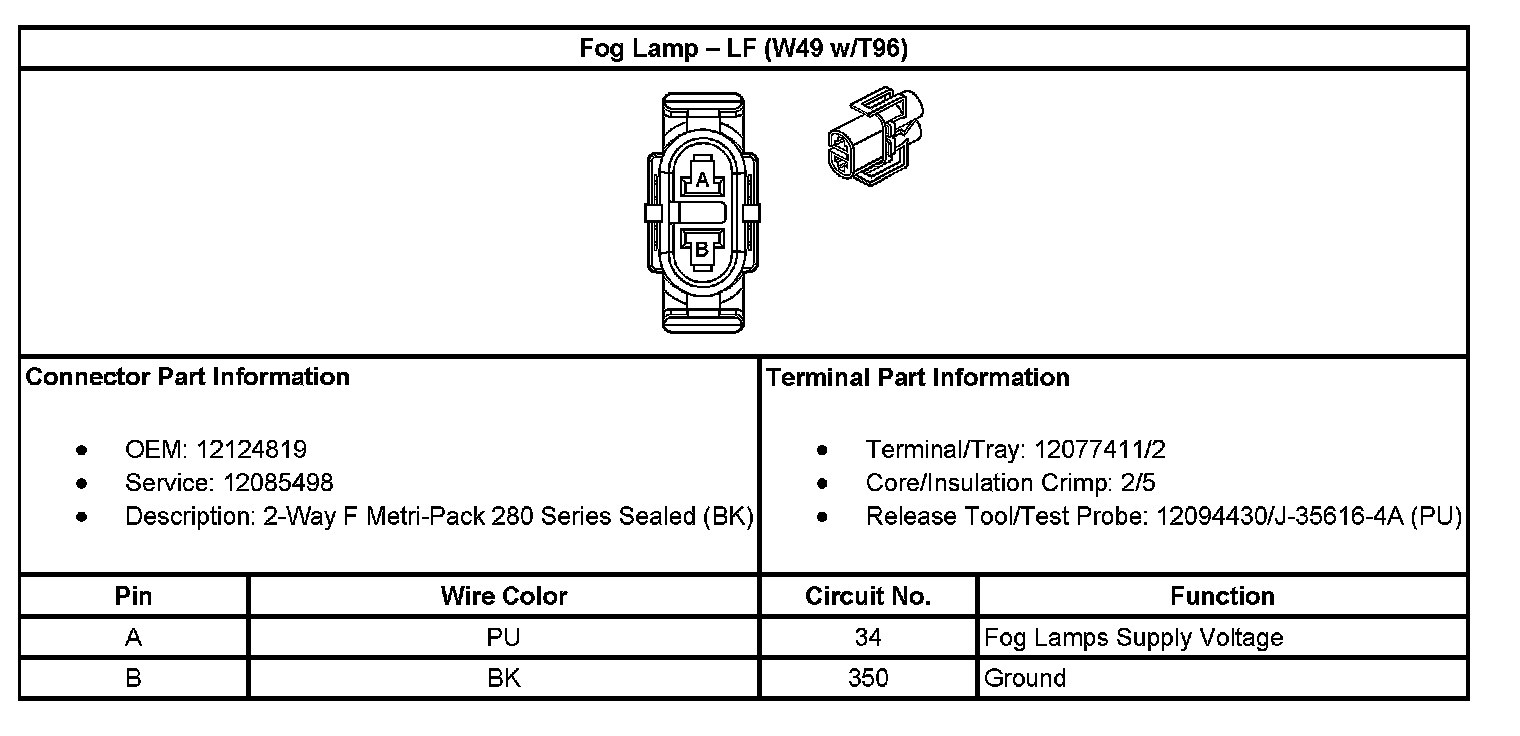

Fog Lamp - LF (With RPO Code W49 And T96):

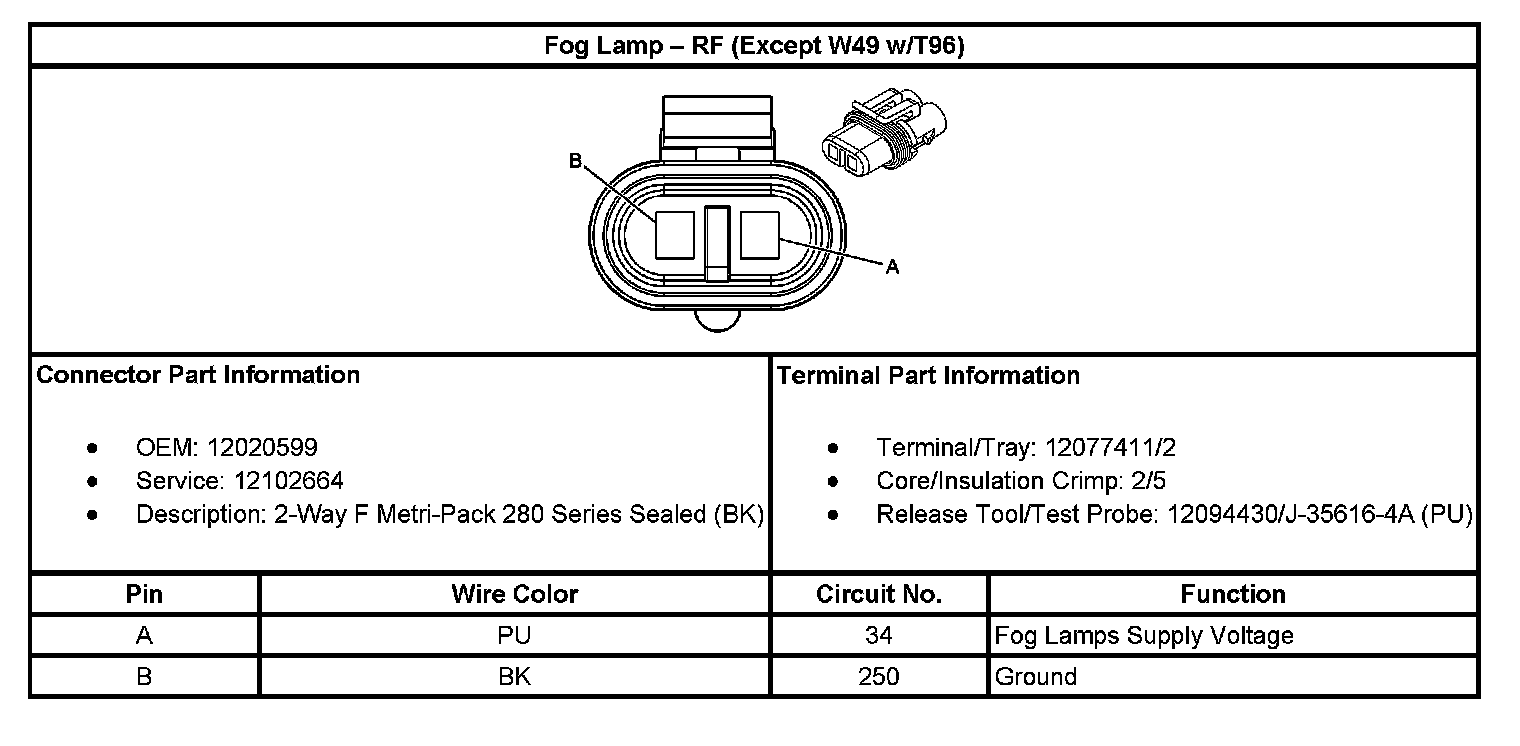

Fog Lamp - RF (Except RPO Code W49 With RPO Code T96):

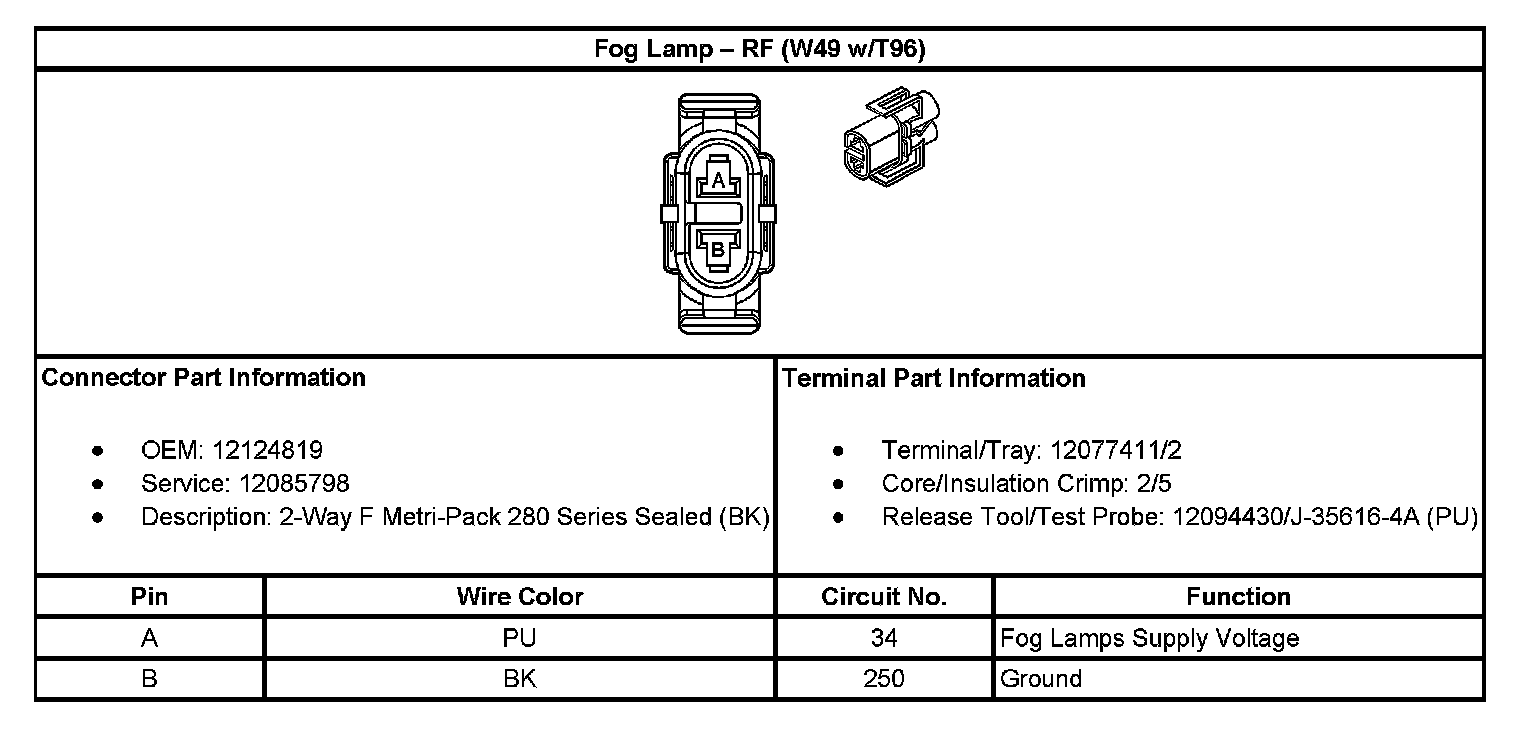

Fog Lamp - RF (With RPO Code W49 And T96):
