Headlamp Alignment Actuator

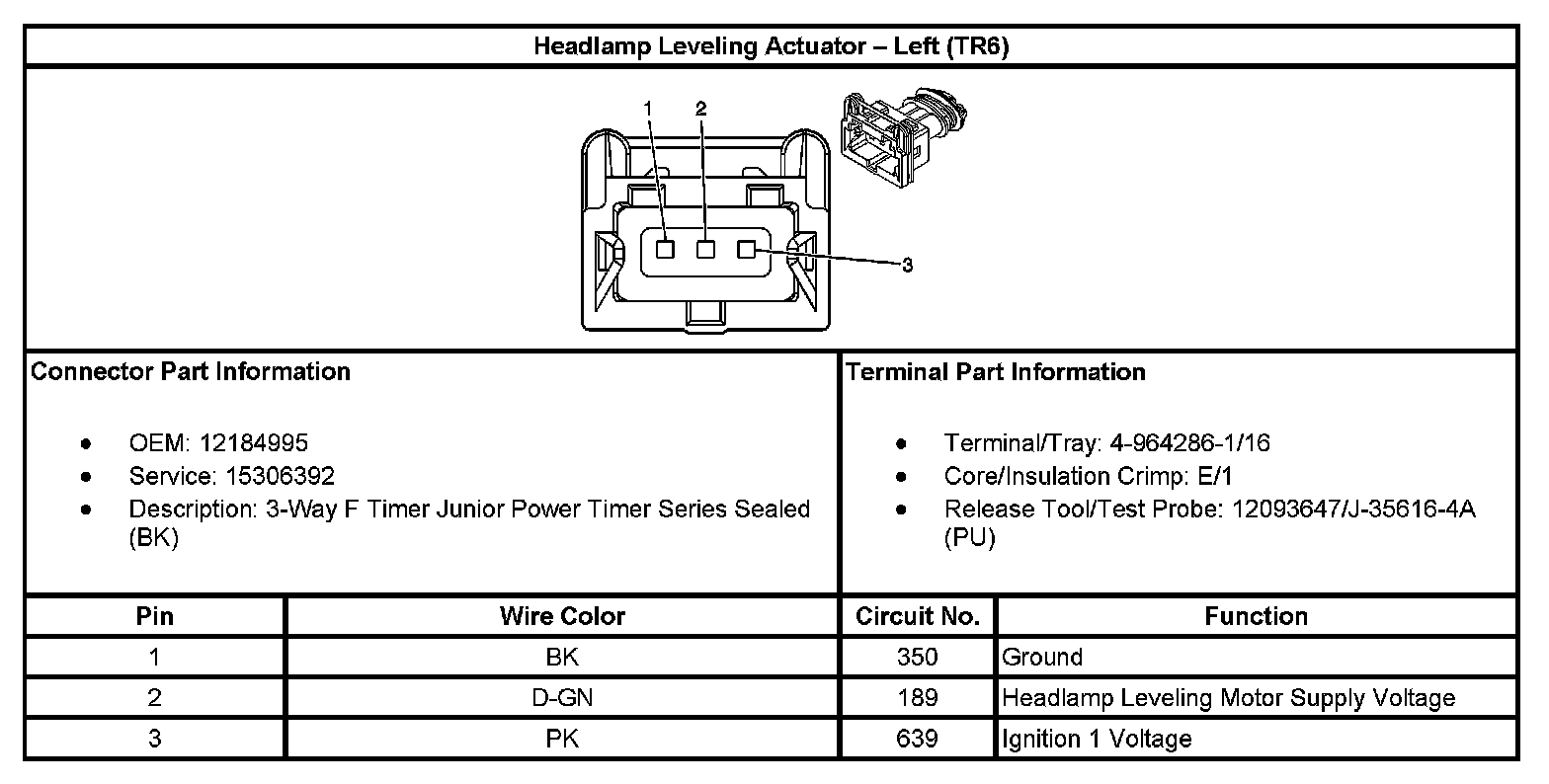

Headlamp Leveling Actuator - Left (With RPO Code TR6):

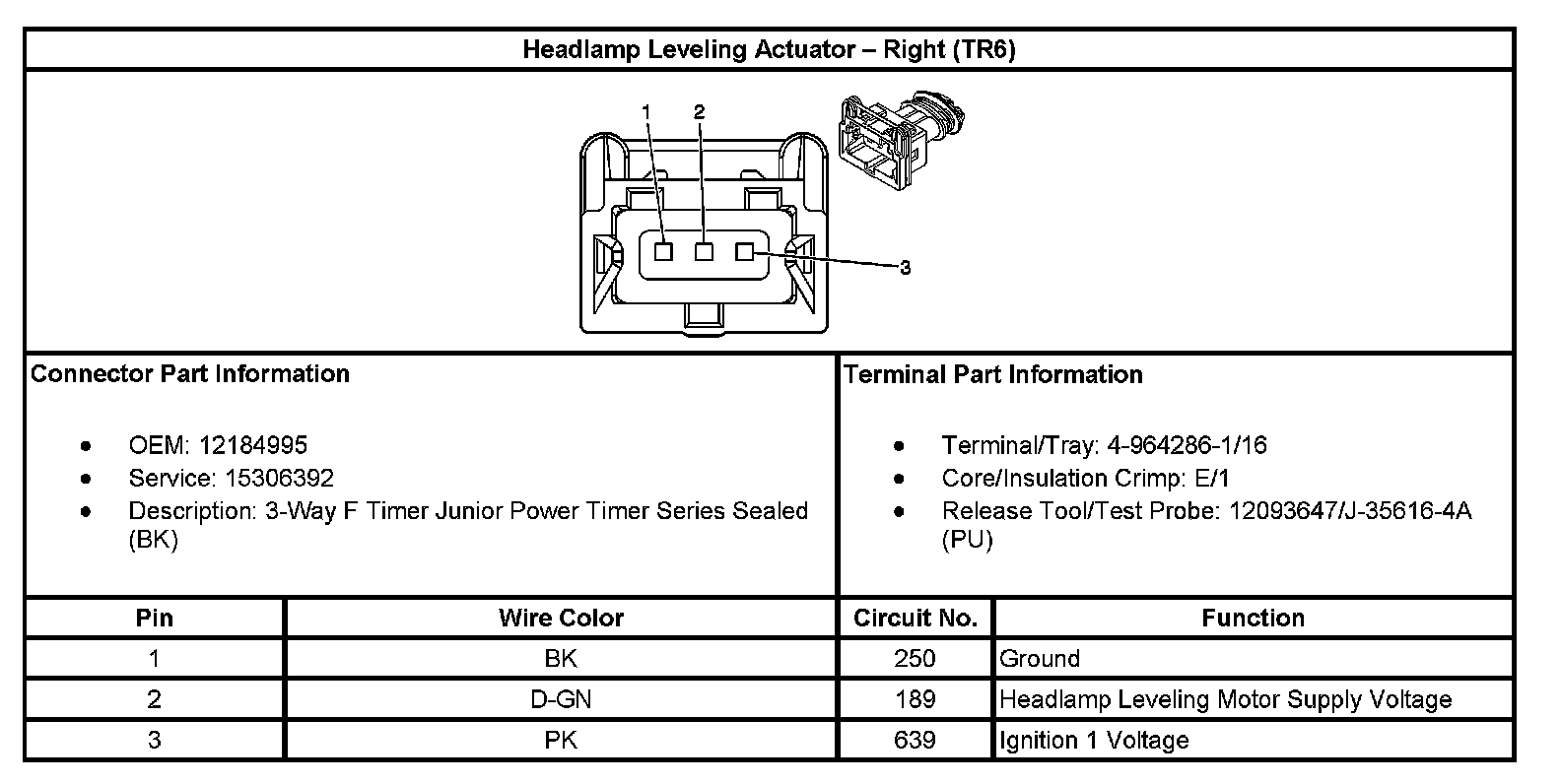

Headlamp Leveling Actuator - Right (With RPO Code TR6):
