Marker Lamp

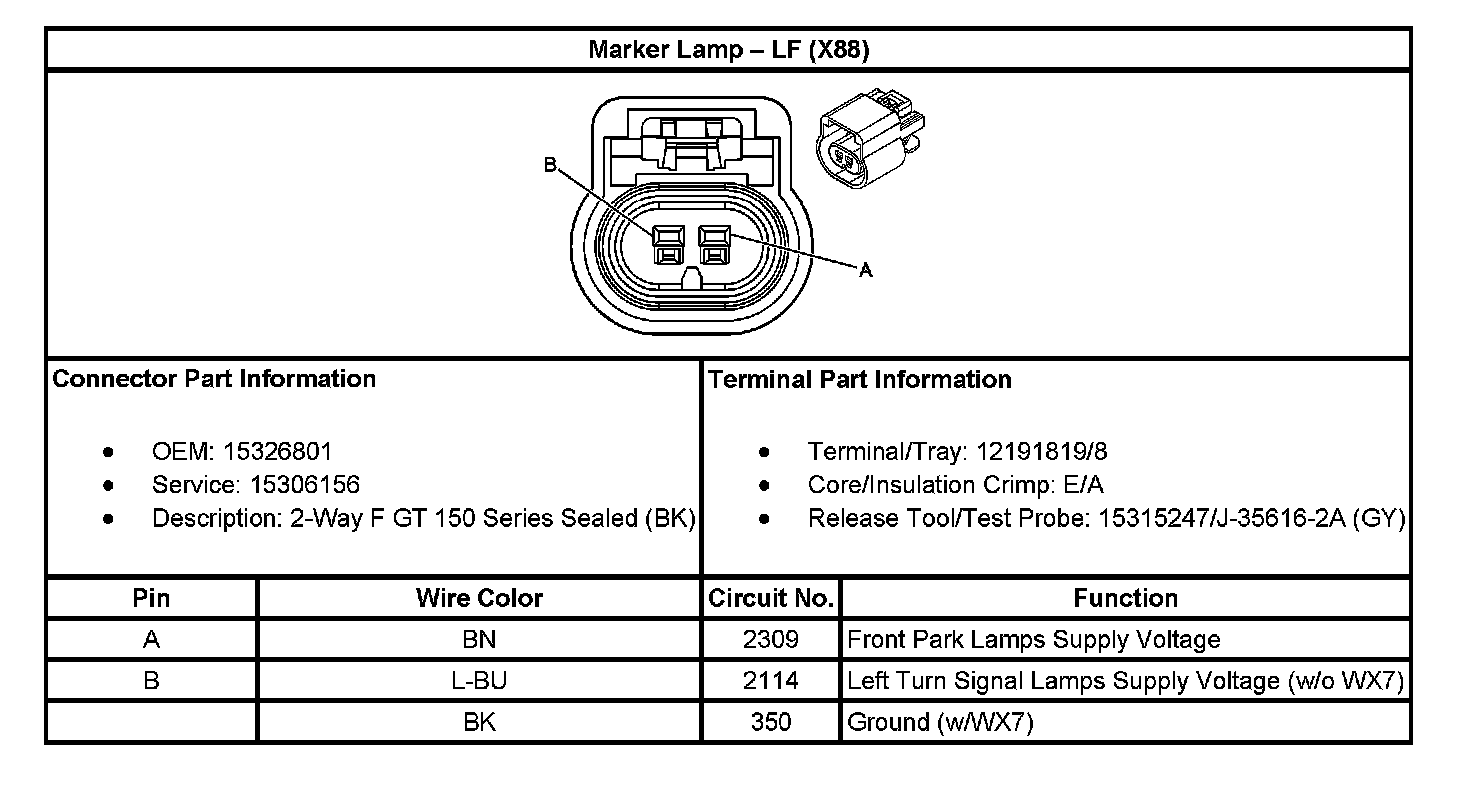

Marker Lamp - LF (With RPO Code X88):

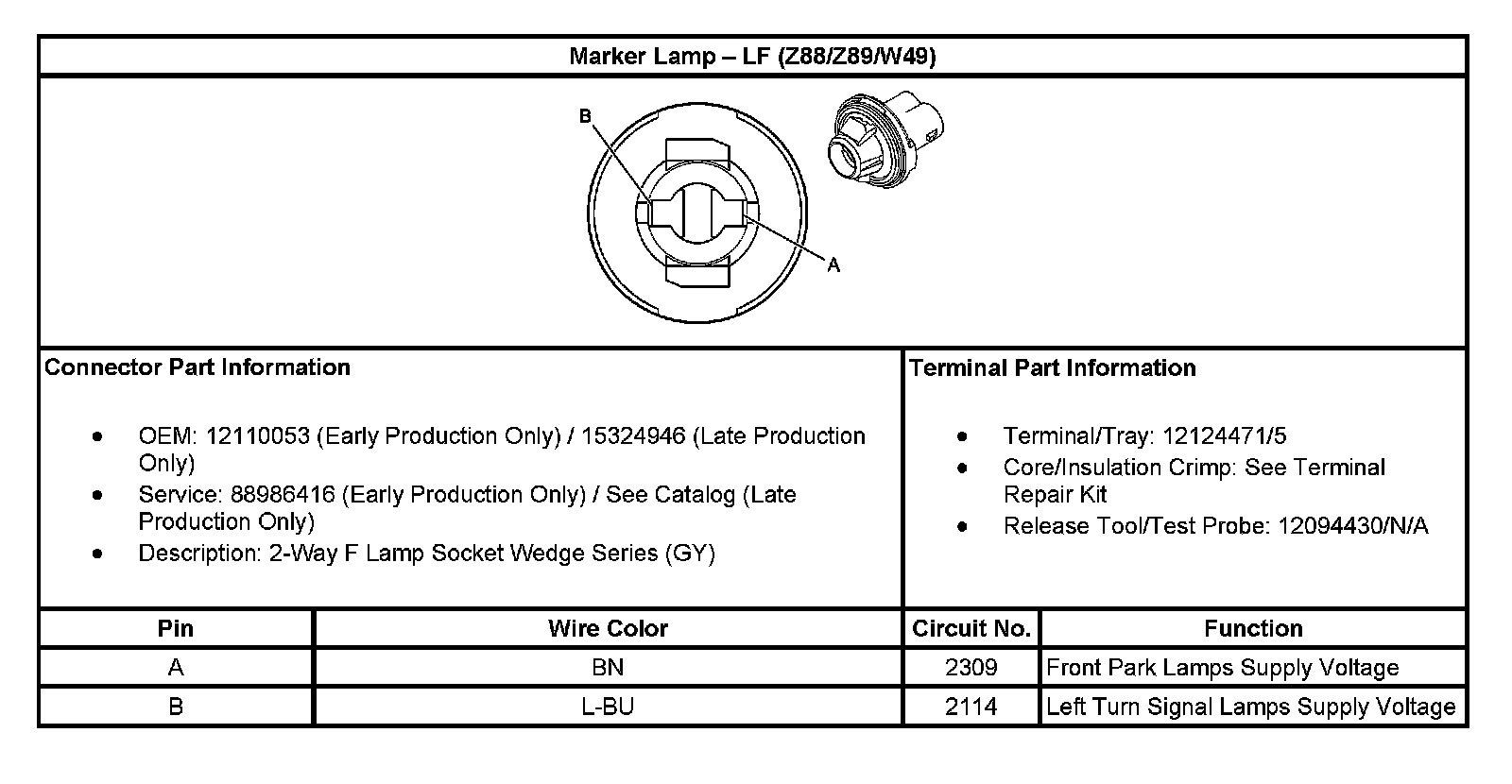

Marker Lamp - LF (With RPO Code Z88/Z89/W49):

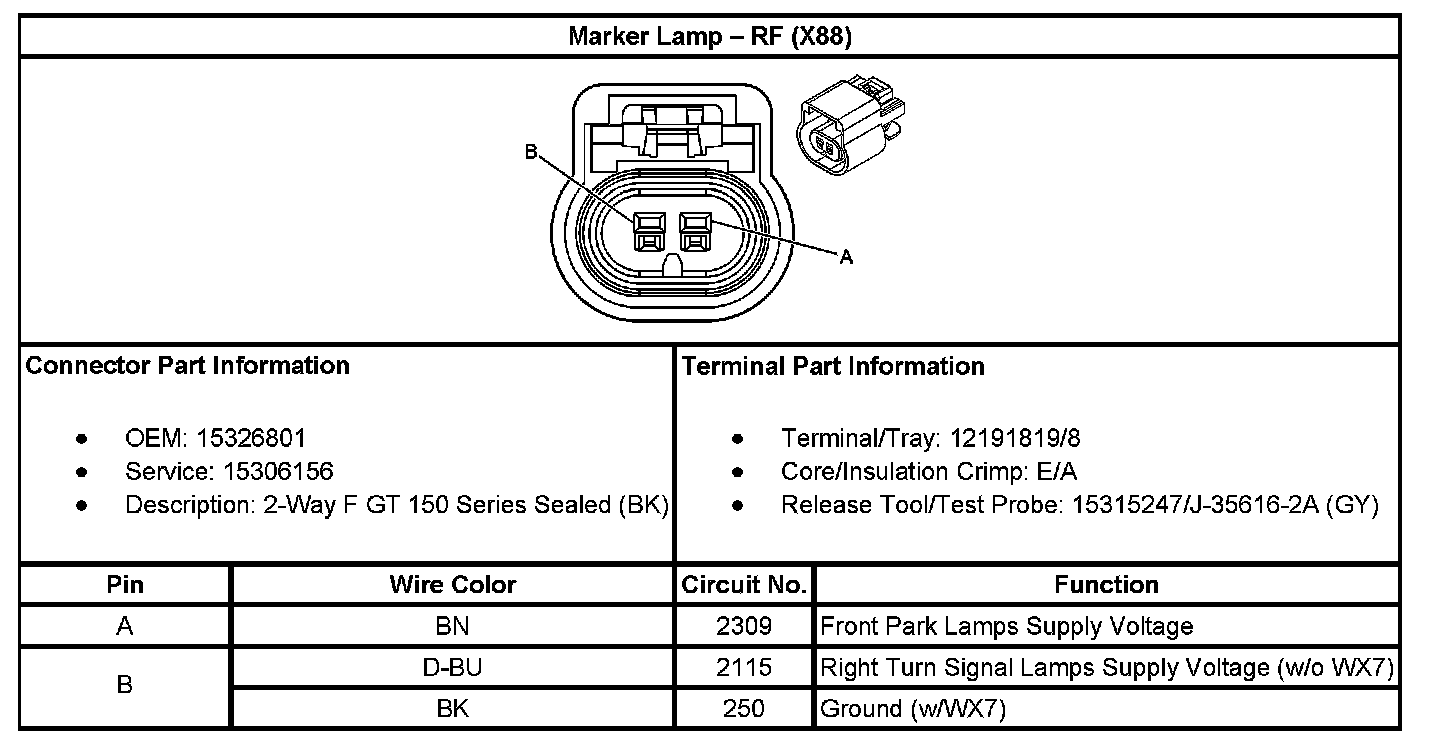

Marker Lamp - RF (With RPO Code X88):

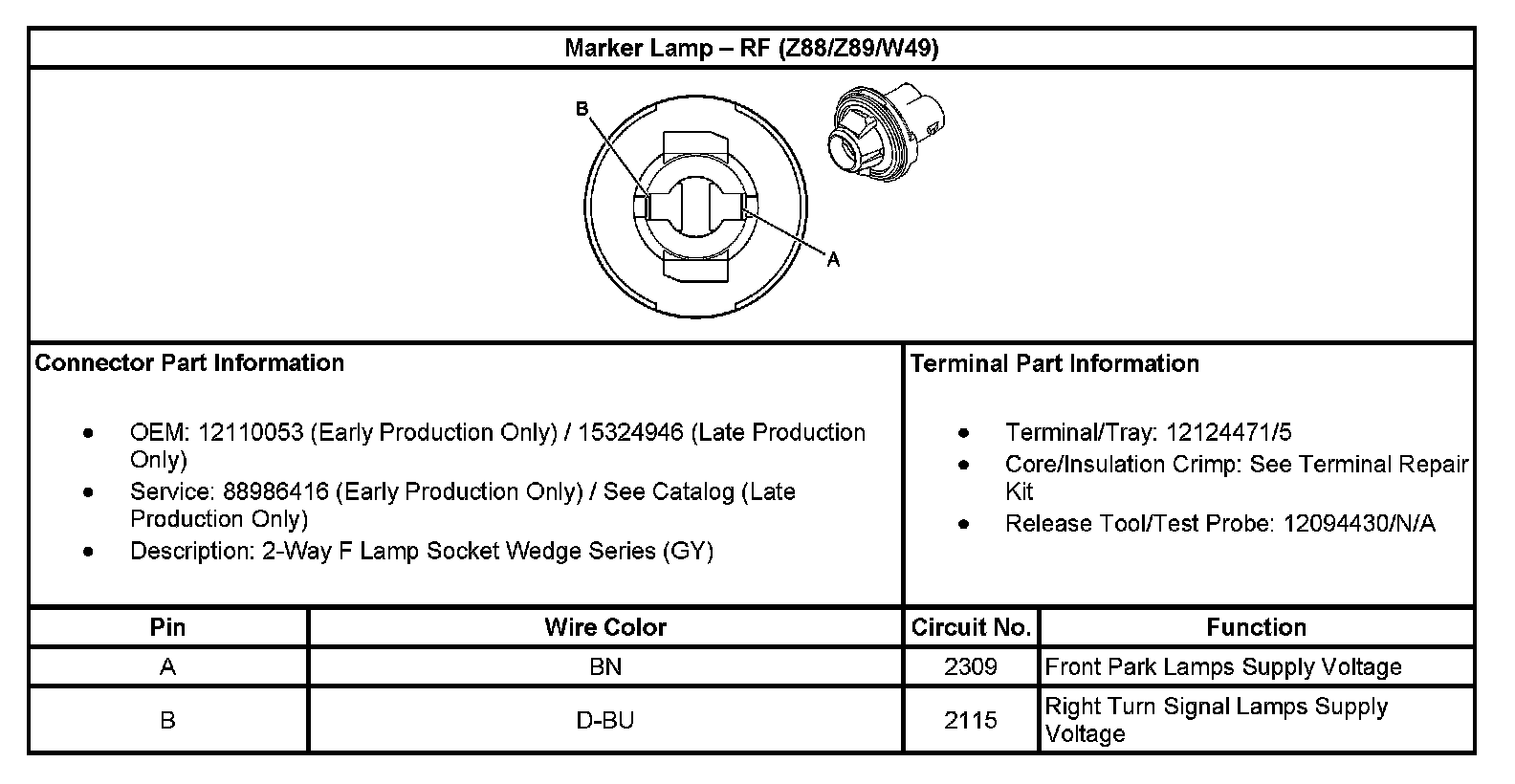

Marker Lamp - RF (With RPO Code Z88/Z89/W49):
