Quarter Glass Switch

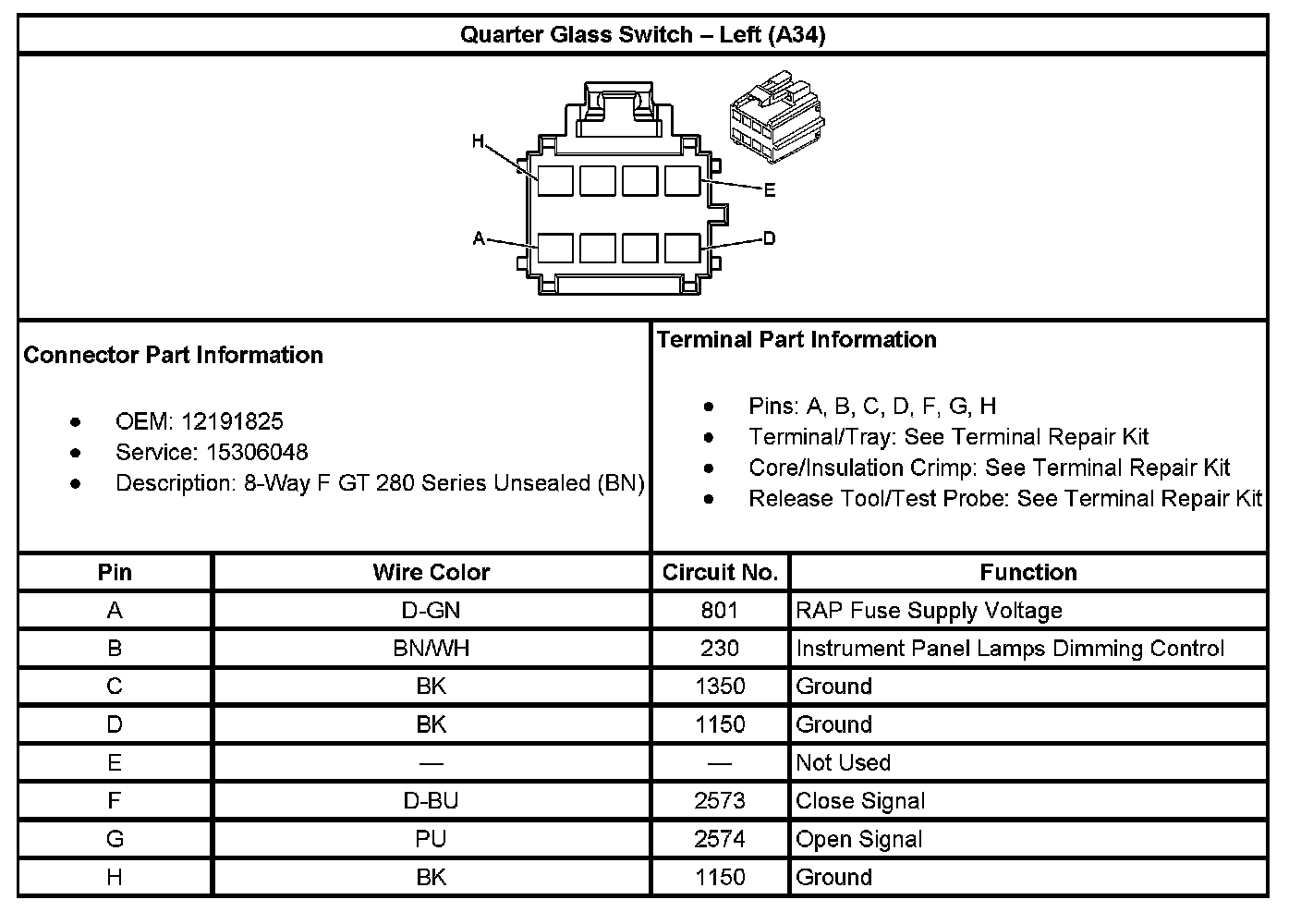

Quarter Glass Switch - Left (With RPO Code A34):

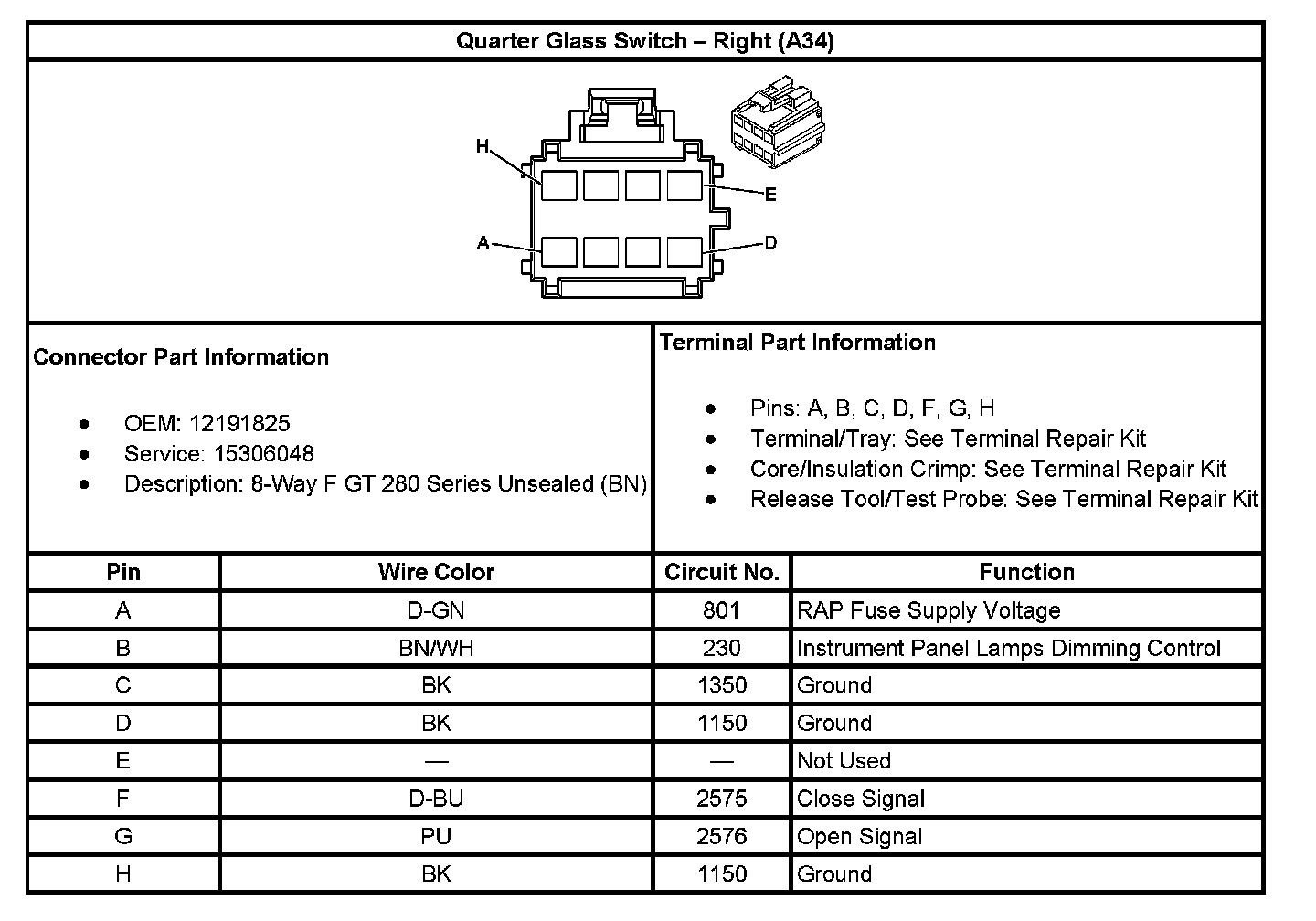

Quarter Glass Switch - Right (With RPO Code A34):
