Steering Column

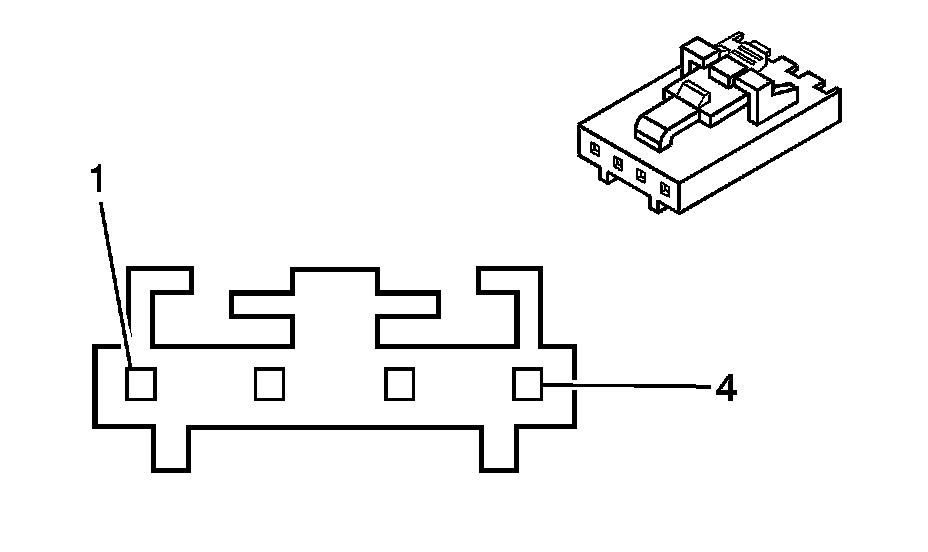

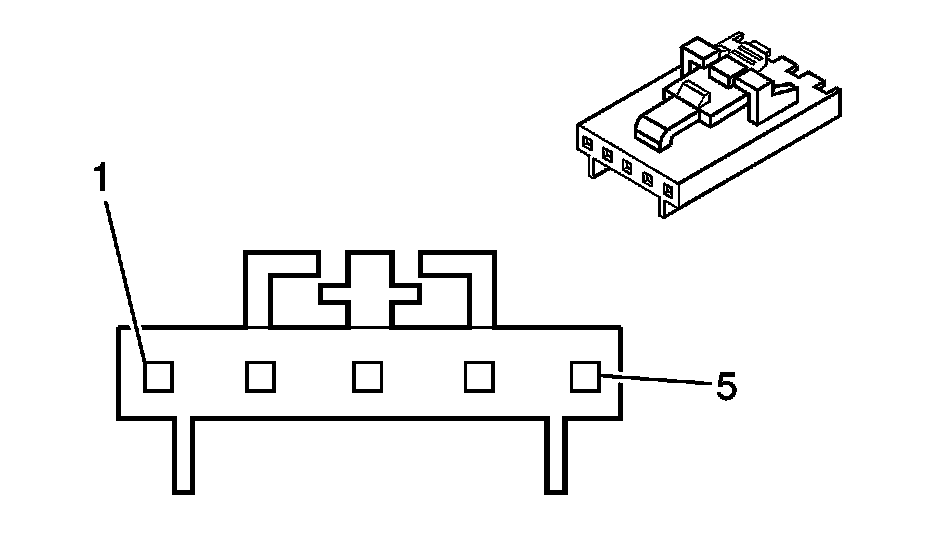

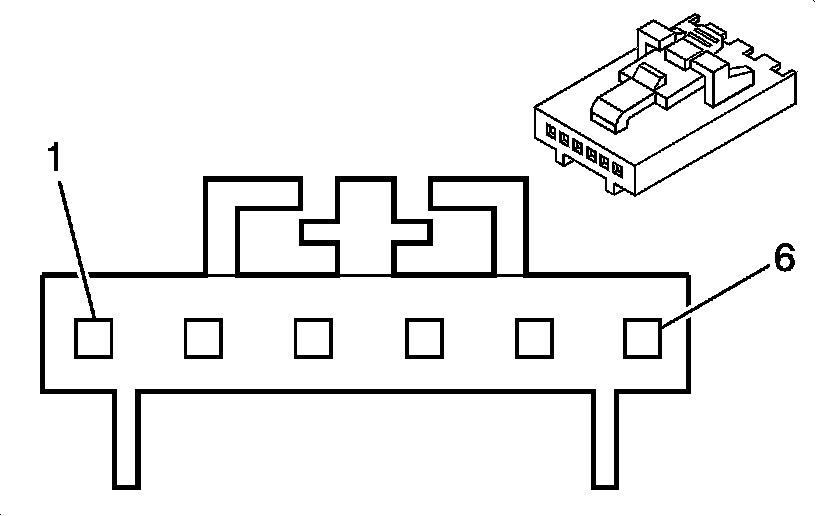

Steering Wheel and Column Connector End Views

Steering Wheel Controls - Right (UK3):

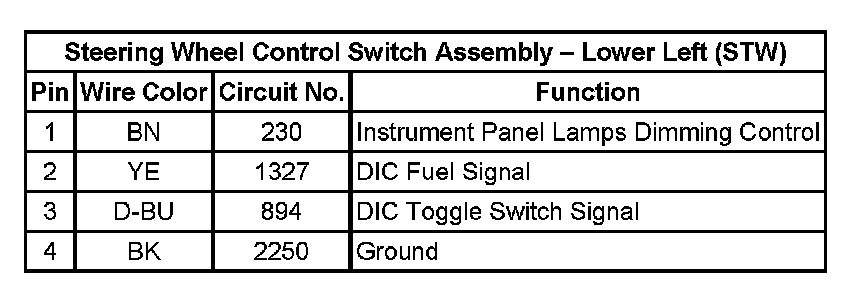

Steering Wheel Control Switch Assembly - Lower Left (STW):

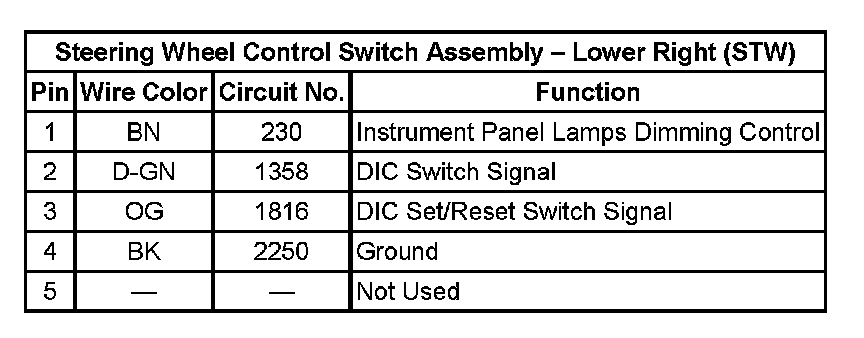

Steering Wheel Control Switch Assembly - Lower Right (STW):

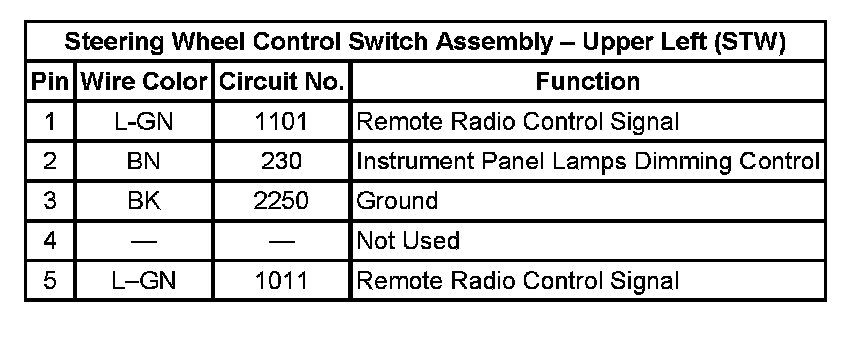

Steering Wheel Control Switch Assembly - Upper Left (STW):

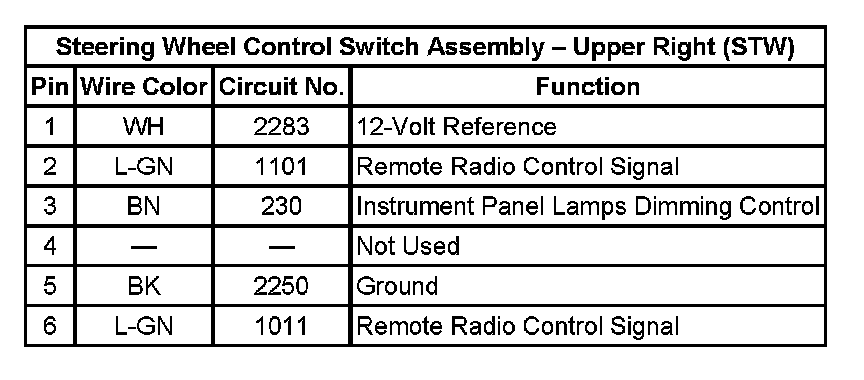

Steering Wheel Control Switch Assembly - Upper Right (STW):
