Tail Lamp

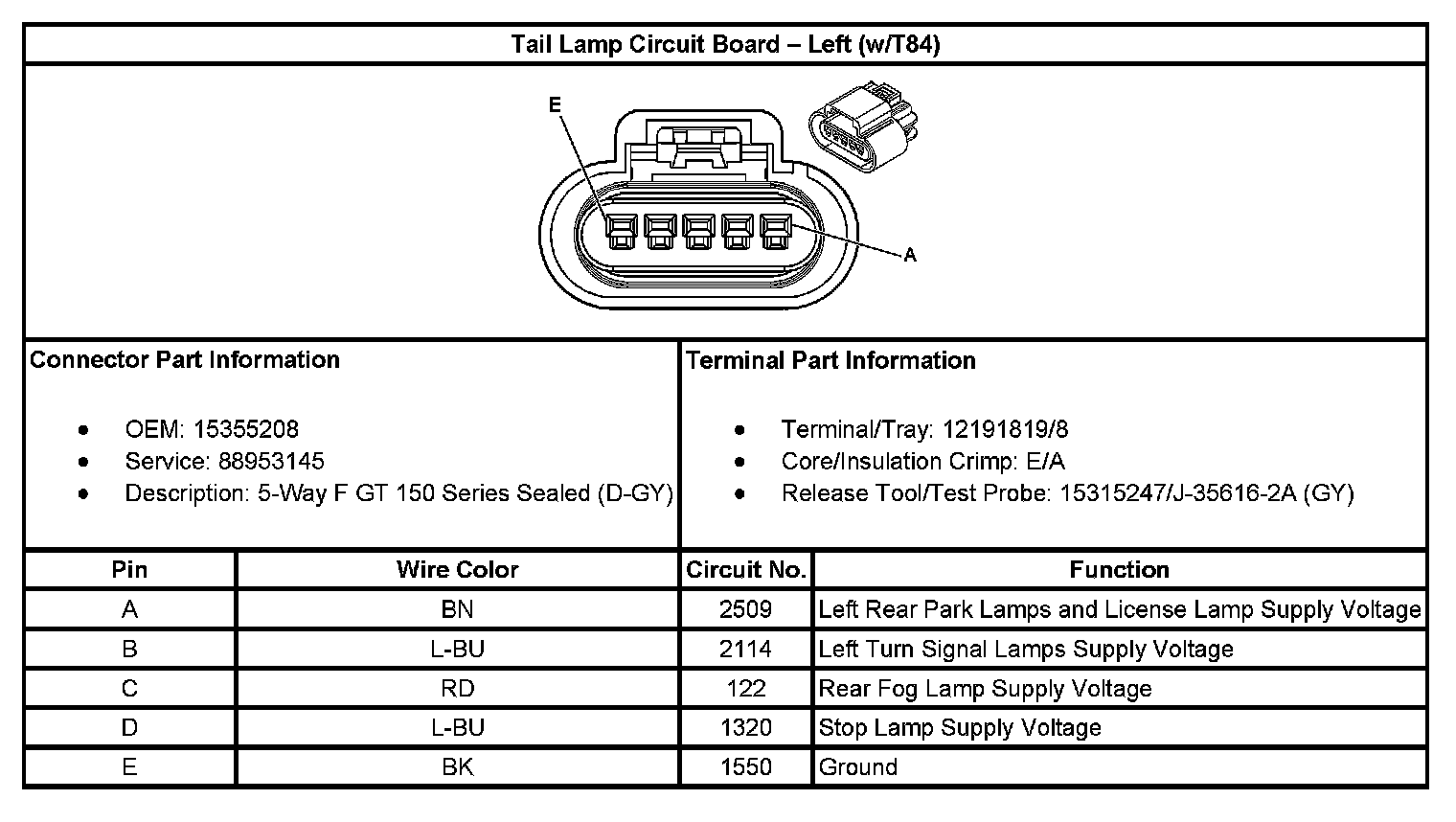

Tail Lamp Circuit Board - Left (With RPO Code T84):

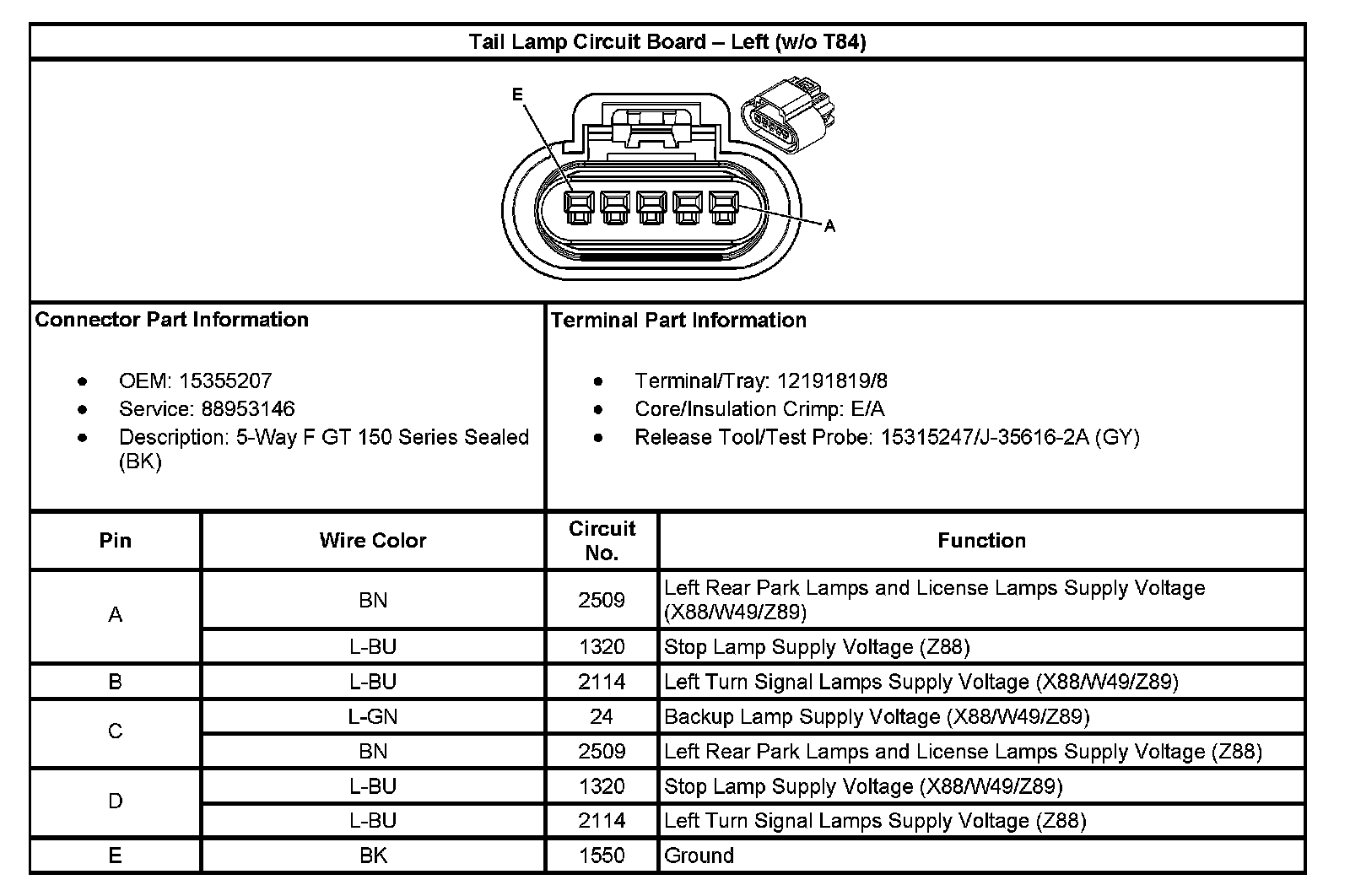

Tail Lamp Circuit Board - Left (Without RPO Code T84):

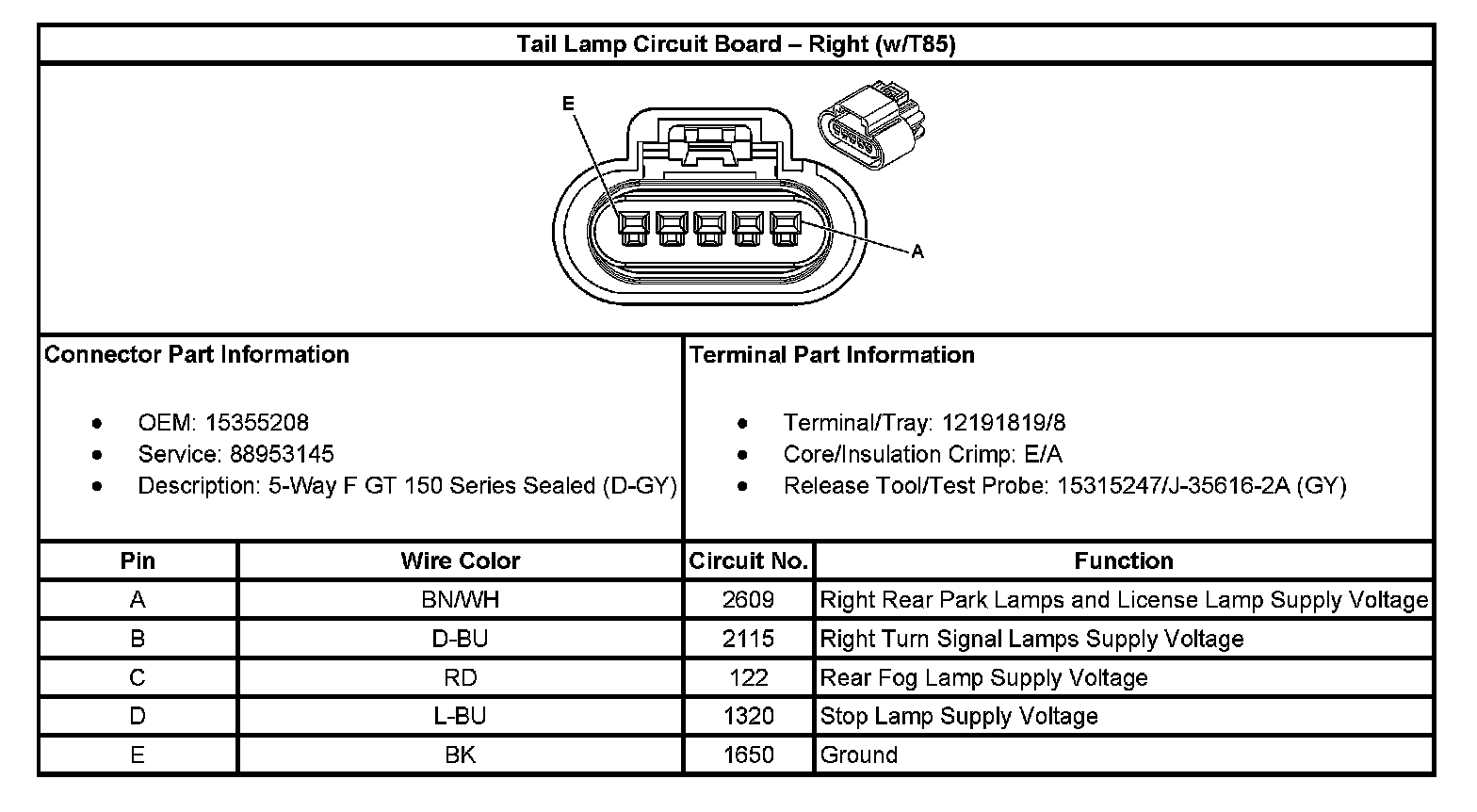

Tail Lamp Circuit Board - Right (With RPO Code T85):

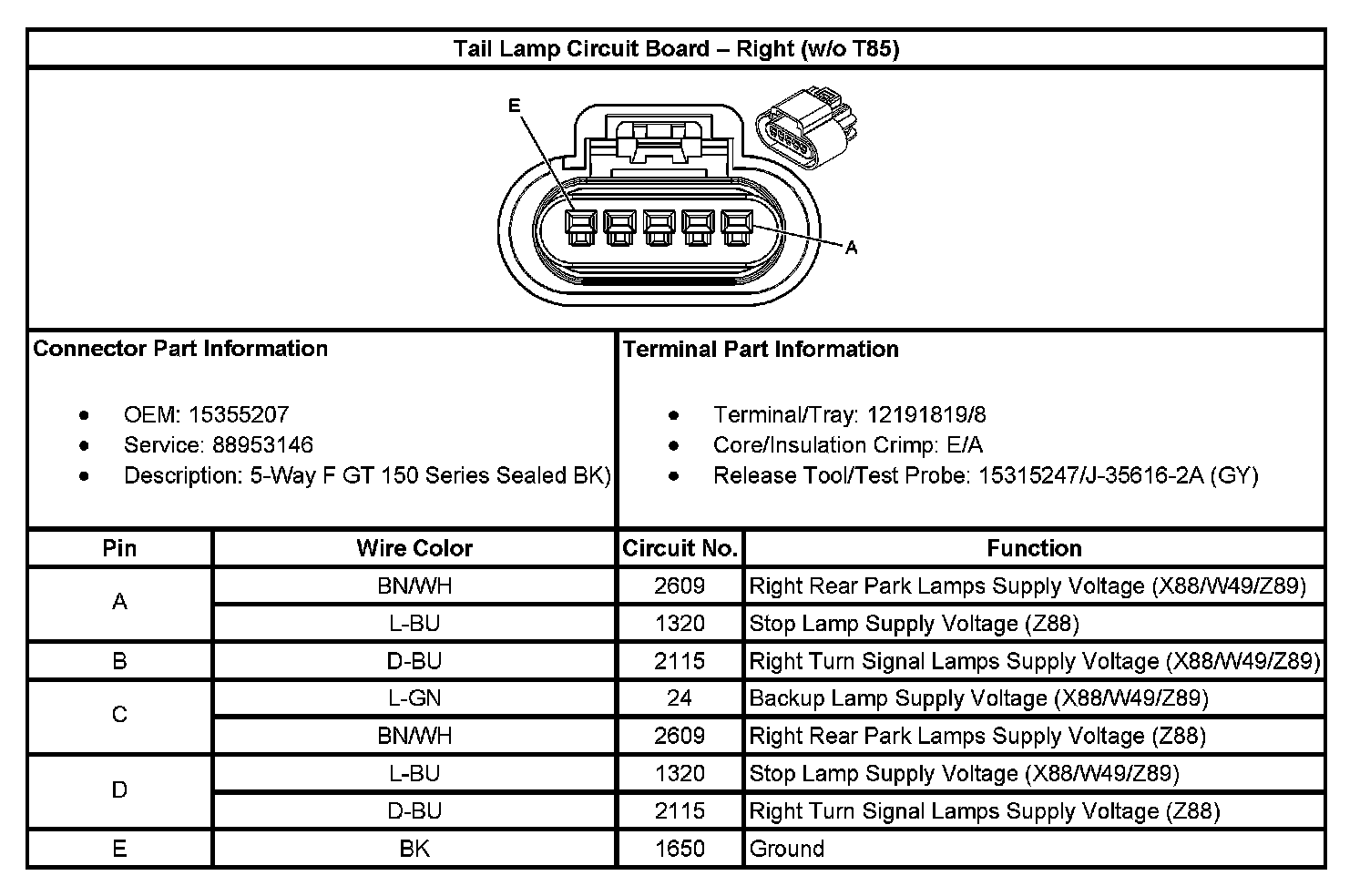

Tail Lamp Circuit Board - Right (Without RPO Code T85):
