Axle Shaft Assembly

Wheel Drive Shafts Disassembled Views

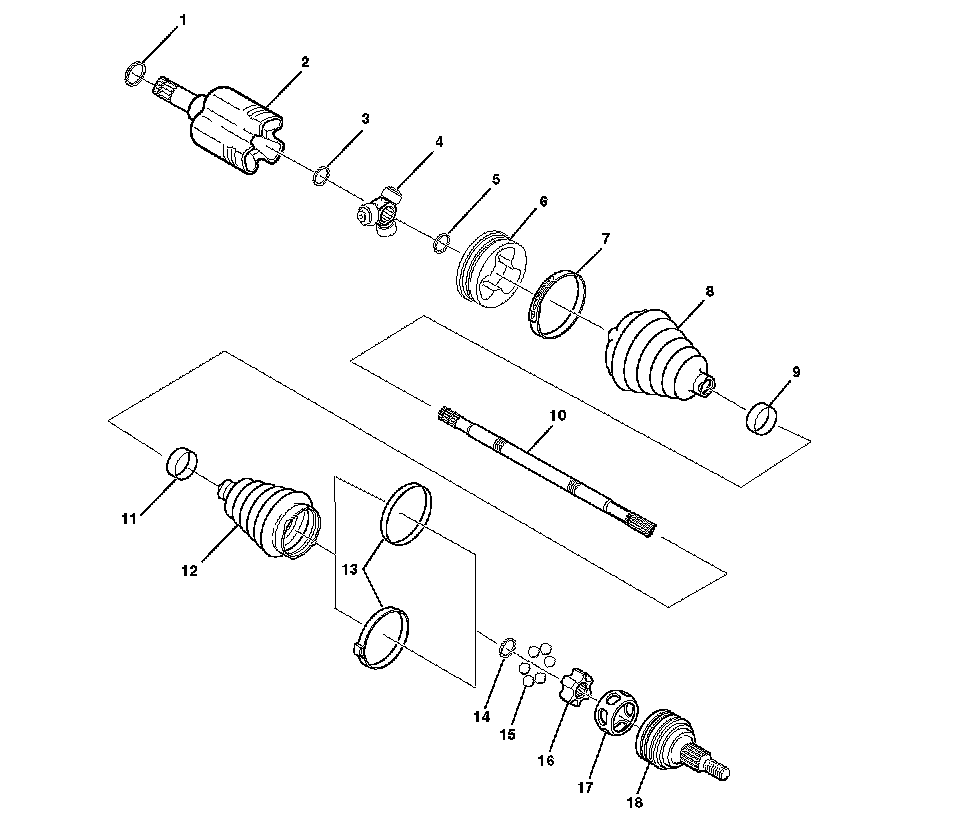

Halfshaft Disassembled View:

1 - Differential Shaft Ring
2 - Tripot Housing Assembly
3 - Spacer Ring
4 - Tripot Joint Spider Assembly
5 - Spacer Ring
6 - Tripot Bushing
7 - Boot Retaining Clamp
8 - Tripot Joint Boot
9 - Halfshaft Swage Ring
10 - Halfshaft Bar
11 - Halfshaft Swage Ring
12 - CV Joint Boot
13 - Swage Ring/Clamp
14 - Race Retaining Ring
15 - Ball
16 - CV Joint Inner Race
17 - CV Joint Cage
18 - CV Joint Outer Race
