Exhaust Manifold and Sensors



Disassembled Views

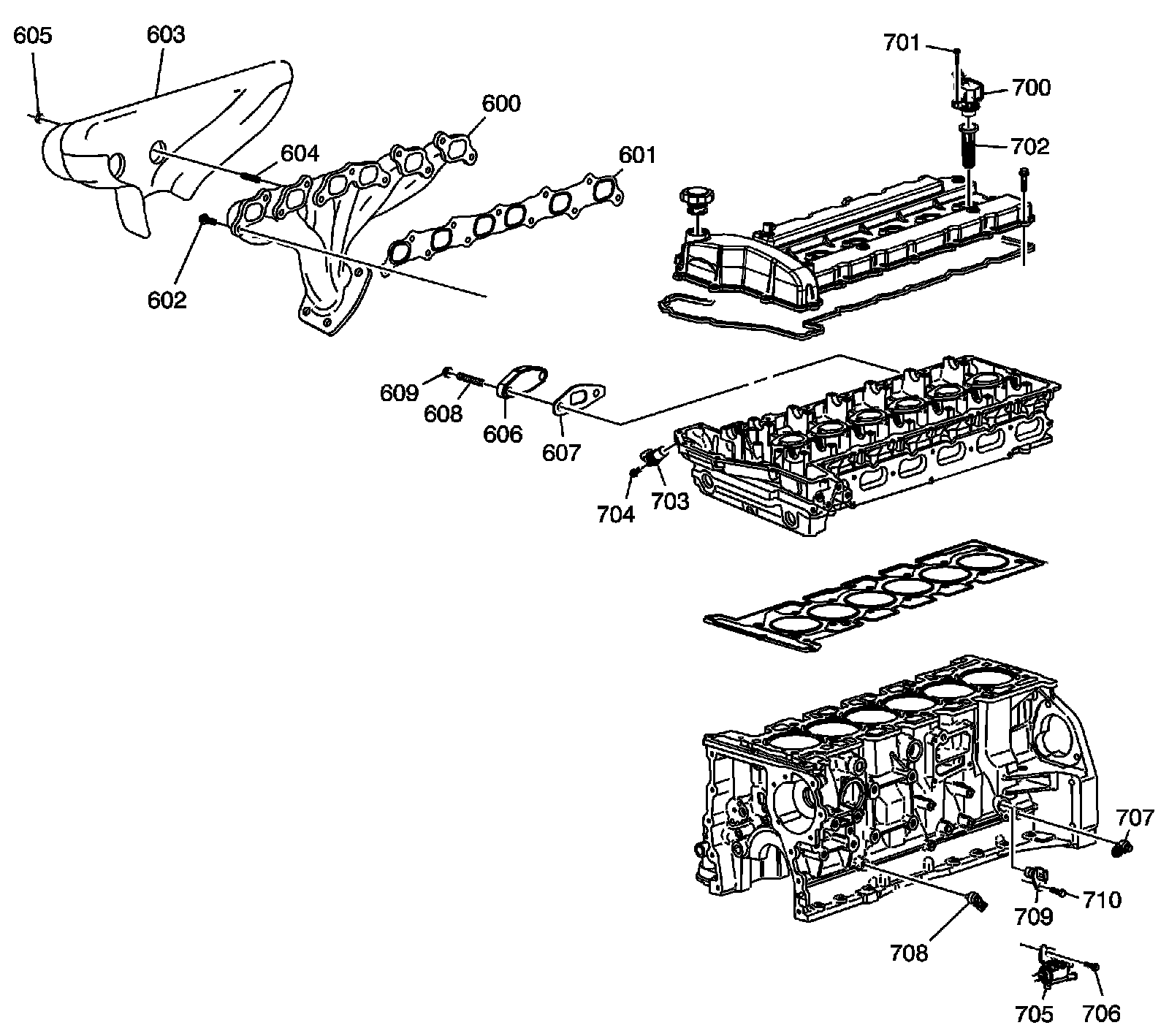

Exhaust Manifold and Sensors

Exhaust Manifold and Sensors:





600 - Exhaust Manifold
601 - Exhaust Manifold Gasket
602 - Exhaust Manifold Bolt
603 - Exhaust Manifold Heat Shield
604 - Exhaust Manifold Heat Shield Stud
605 - Exhaust Manifold Heat Shield Nut
606 - A.I.R. Cover
607 - A.I.R. Cover Gasket
608 - A.I.R. Cover Stud
609 - A.I.R. Cover Nut
700 - Ignition Control Module
701 - Ignition Control Module Bolt
702 - Ignition Control Module Boot
703 - Exhaust Camshaft Position Sensor
704 - Exhaust Camshaft Position Sensor Bolt
705 - EVAP Emission Canister Purge Solenoid
706 - EVAP Emission Canister Purge Solenoid Bolt
707 - Knock Sensor
708 - Knock Sensor
709 - Crankshaft Position Sensor
710 - Crankshaft position Sensor Bolt
