Steering Gear

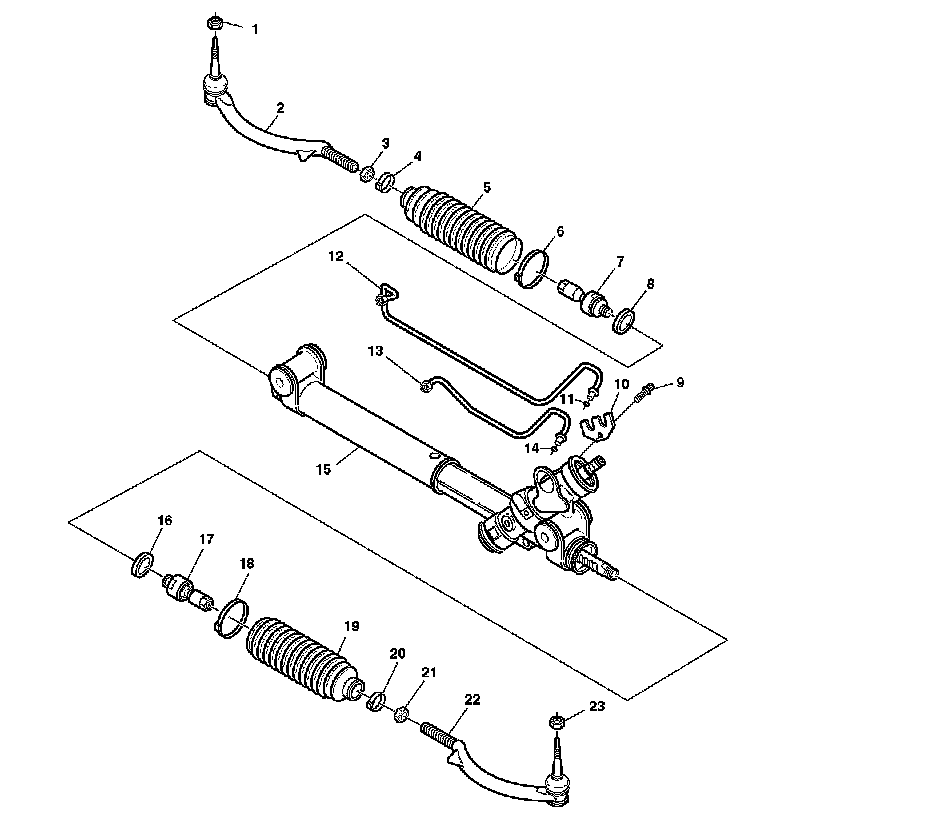

Power Steering Gear Disassembled View

Power Steering Gear Disassembled View:

1 - Torque Prevailing Nut
2 - Outer Tie Rod Assembly
3 - Hexagon Jam Nut
4 - Tie Rod End Clamp
5 - Rack and Pinion Boot
6 - Boot Clamp
7 - Inner Tie Rod Assembly
8 - Shock Dampener Ring
9 - External TORX(R) Screw
10 - Cylinder Line Retaining Plate
11 - O-ring Seal
12 - Cylinder (RH) Line
13 - Cylinder (LH) Line
14 - O-ring Seal
15 - Rack and Pinion Gear (Partial)
16 - Shock Dampener Ring
17 - Inner Tie Rod Assembly
18 - Boot Clamp
19 - Rack and Pinion Boot
20 - Tie Rod End Clamp
21 - Hexagon Jam Nut
22 - Outer Tie Rod Assembly
23 - Torque Prevailing Nut
