Engine Flywheel Installation



Engine Flywheel Installation

Tools Required

J 45059 Angle Meter

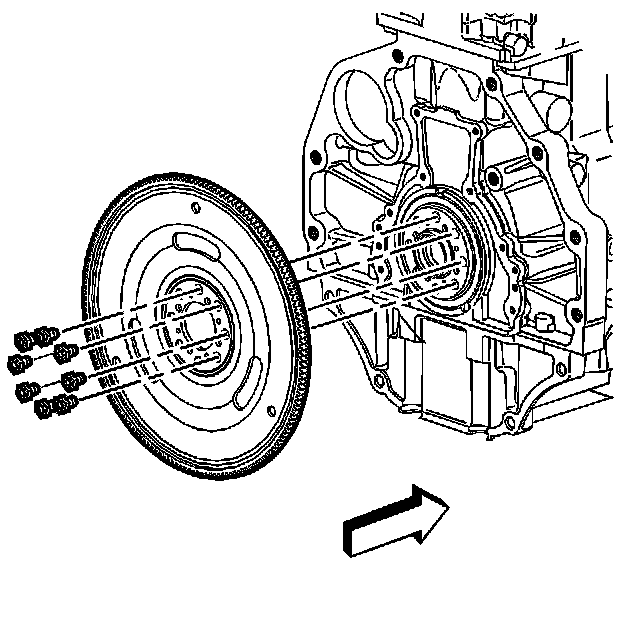

1. Install the flywheel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install new flywheel bolts.
1. Tighten the new flywheel bolts to 25 N.m (18 lb ft).
2. Use J 45059 to tighten the flywheel bolts an additional 50 degrees.
