Intake Manifold Removal



Intake Manifold Removal

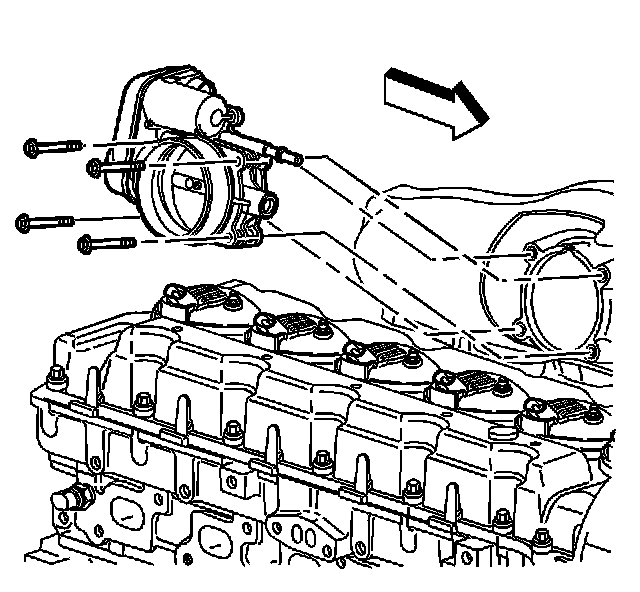

1. Remove the throttle control module bolts.
2. Remove the throttle control module.
3. Remove the throttle control module gasket.

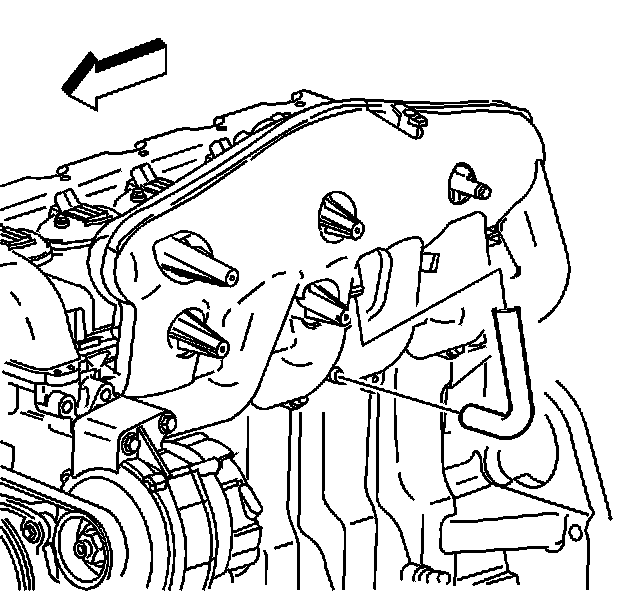

4. Remove the crankcase ventilation hose.

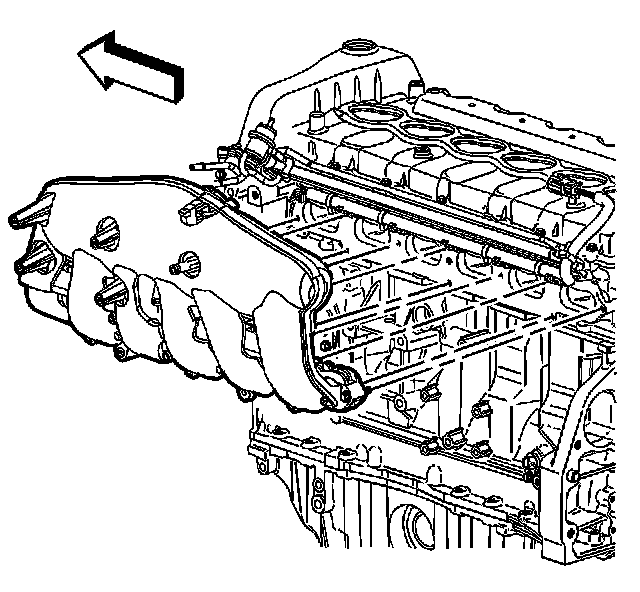

5. Remove the intake manifold and bolts.
