Instrument Panel Vent



AIR OUTLET REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE

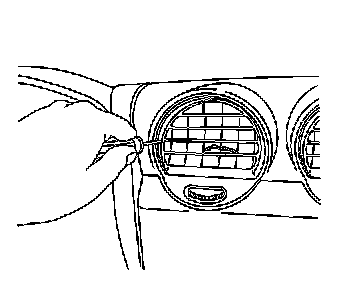

1. Using a flat-bladed tool, release the left housing retaining pin and gently push the left side of the air outlet into the housing assembly.




2. With the air outlet in the housing assembly, rotate the air outlet face down.

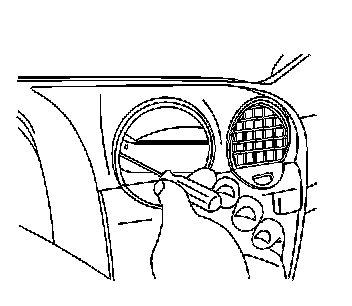

3. Using a flat bladed tool, remove the left side of the air outlet from the housing assembly.

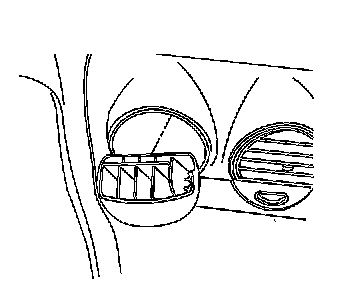

4. Remove the air outlet from the housing assembly.

INSTALLATION PROCEDURE




1. Position the air outlet face down at the housing opening.
2. Position the right side of the air outlet below the housing retaining pin.
3. Seat the right side of the air outlet to the housing retaining pin by lifting upward.




4. Seat the left side of the air outlet to the housing retaining pin.
5. Rotate the air outlet upward past the detent position.
6. Adjust the air outlet to the original position.
