HVAC System - Automatic



FRONT AUXILIARY BLOWER MOTOR SWITCH REPLACEMENT

REMOVAL PROCEDURE

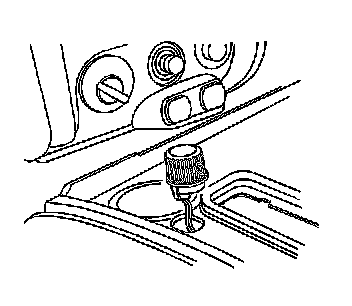

1. Press downward and to the right on the front auxiliary blower motor switch.
2. Remove the front auxiliary blower motor switch from the console.
3. Disconnect the electrical connector from the front auxiliary blower motor switch.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the front auxiliary blower motor switch.
2. Install the front auxiliary blower motor switch to console.
3. Press the front auxiliary blower motor switch into the console.
