Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE

1. Remove the protective cover from the underhood fuse block.

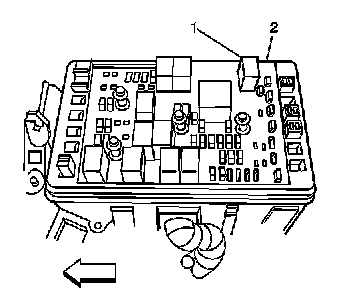

2. Remove the compressor relay (1) from the underhood fuse block (2).

INSTALLATION PROCEDURE

1. Install the compressor relay (1) to the underhood fuse block (2).
2. Install the protective hood to the underhood fuse block.
