Blower Motor Processor - Auxiliary



BLOWER MOTOR PROCESSOR REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE
1. Remove the right rear quarter trim panel.
2. Remove the HVAC module-auxiliary.
3. Disconnect the electrical connector from the blower motor processor.

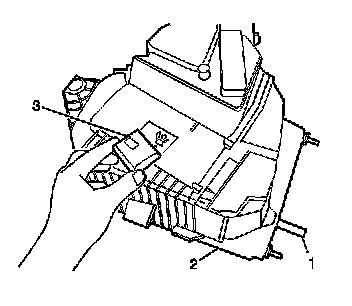

4. Remove the retaining screws from the blower motor processor (1).




5. Remove the blower motor processor (3) from the HVAC module (2).

INSTALLATION PROCEDURE




1. Install the blower motor processor (3) to the HVAC module (2).
2. Install the retaining screws to the blower motor processor (3).

Tighten the screws to 1.9 N.m (17 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the HVAC module-auxiliary.
4. Connect the electrical connector to the blower motor processor (1).
5. Install the right rear quarter trim panel.
