Air Temperature Sensor - Lower Right

AIR TEMPERATURE SENSOR REPLACEMENT - LOWER RIGHT

REMOVAL PROCEDURE
1. Remove the passenger side closeout panel.
2. Remove the I/P lower closeout panel.

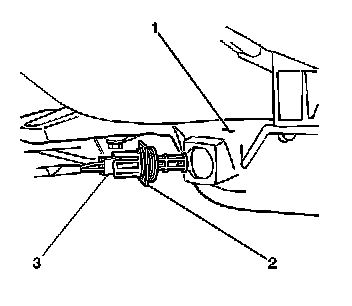

3. Disconnect the electrical connector (3) from the air temperature sensor-lower right (2).
4. Remove the air temperature sensor-lower right (2).

INSTALLATION PROCEDURE




1. Install the air temperature sensor-lower right (2).
2. Connect the electrical connector (3) to the air temperature sensor-lower right (2).
3. Install the I/P lower closeout panel.
4. Install the passenger side closeout panel.
