Scan Tool Data List



SCAN TOOL DATA LIST

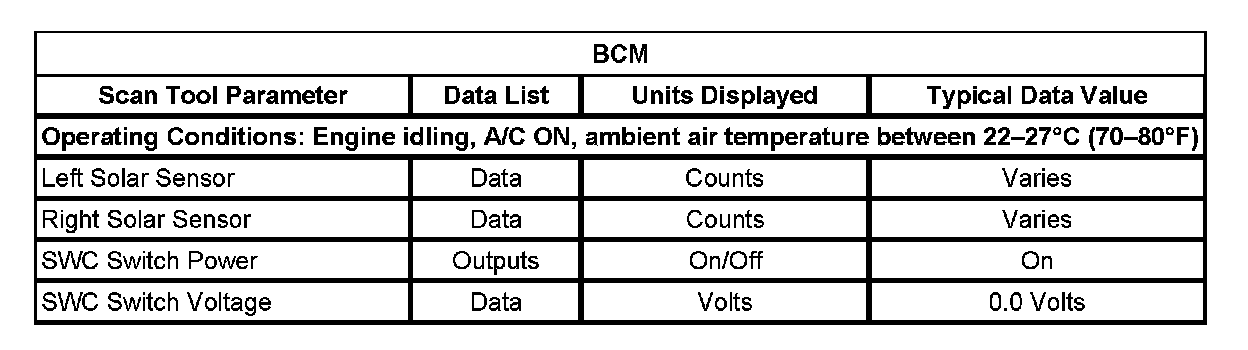

BCM:

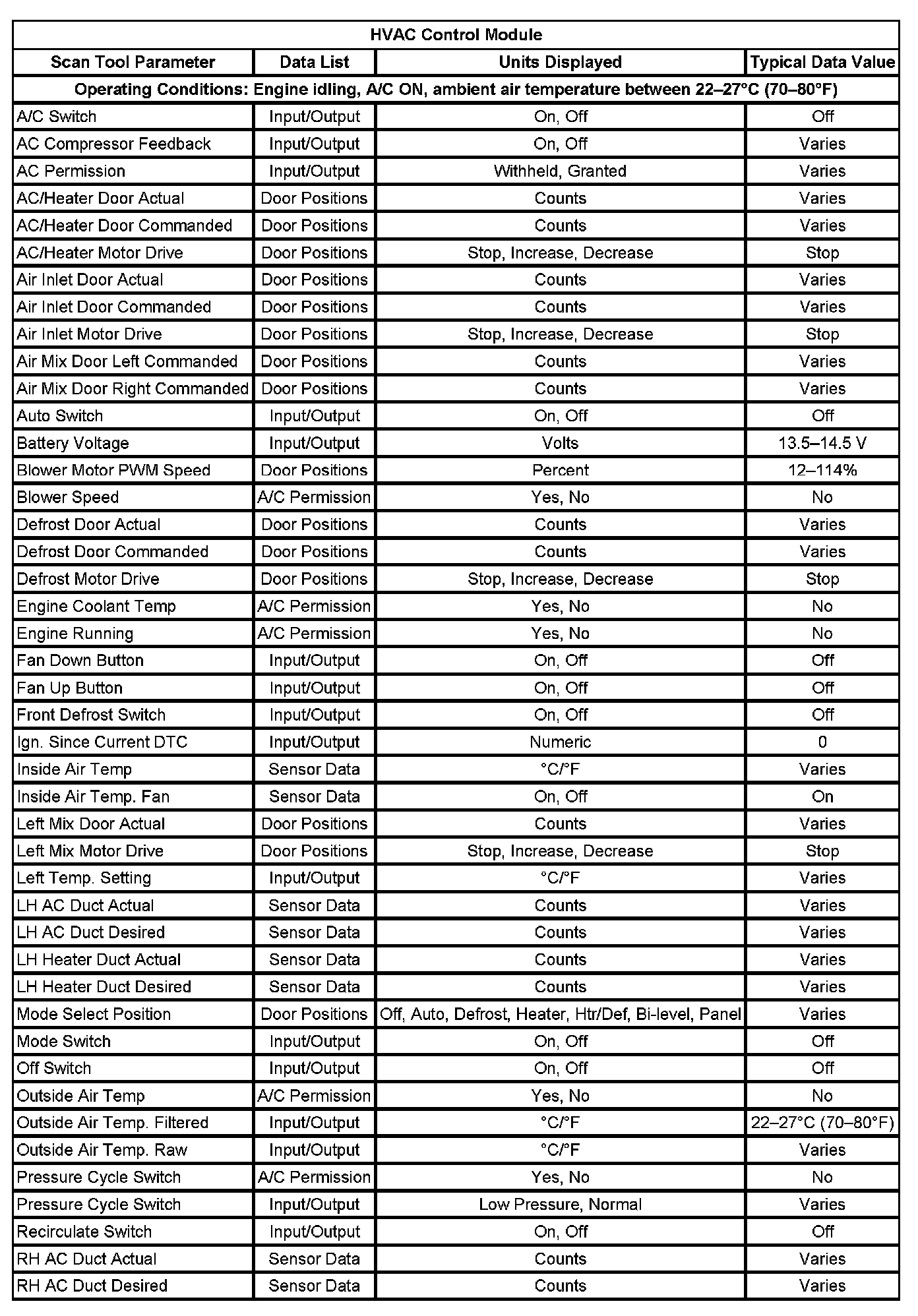

HVAC Control Module (Part 1):

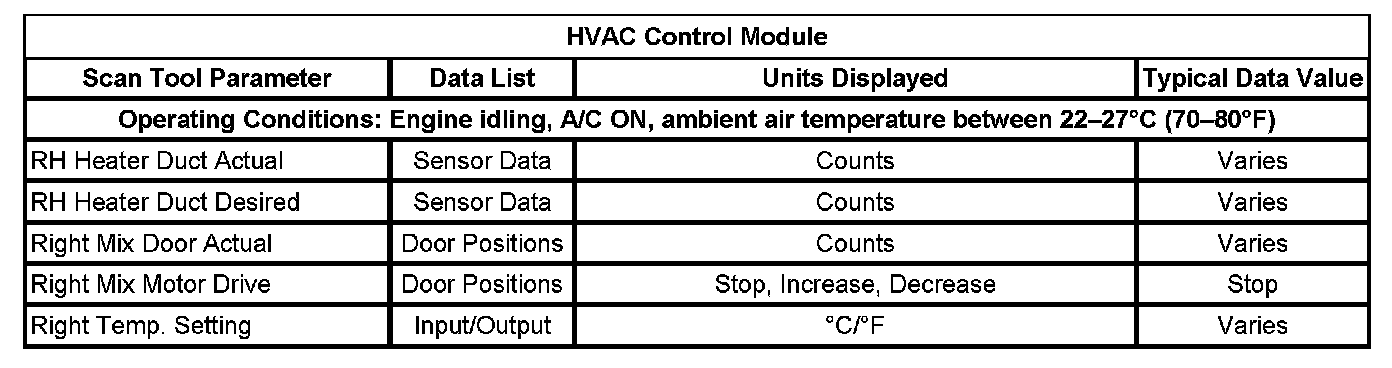

HVAC Control Module (Part 2):

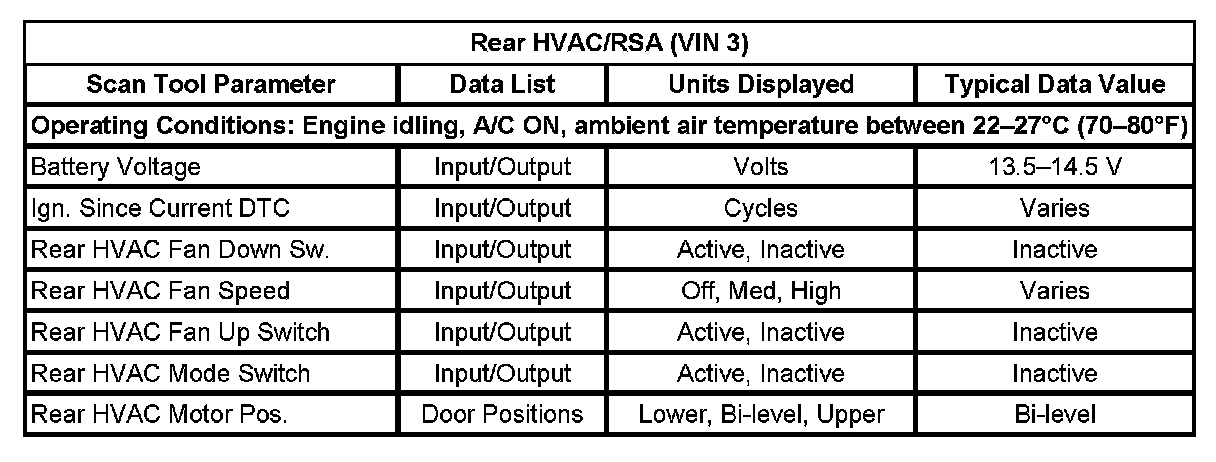

Rear HVAC/RSA (VIN 3):

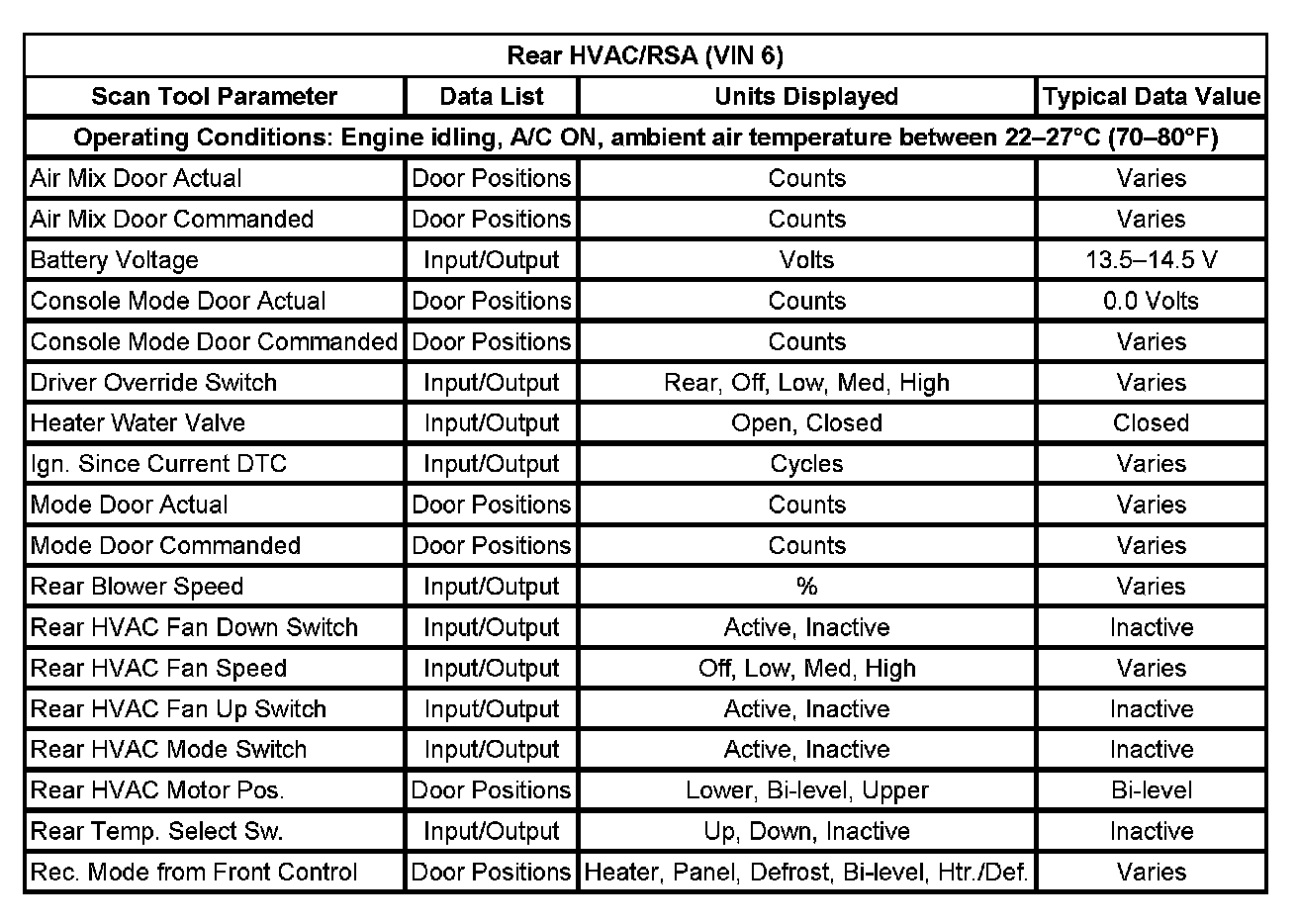

Rear HVAC/RSA (VIN 6):

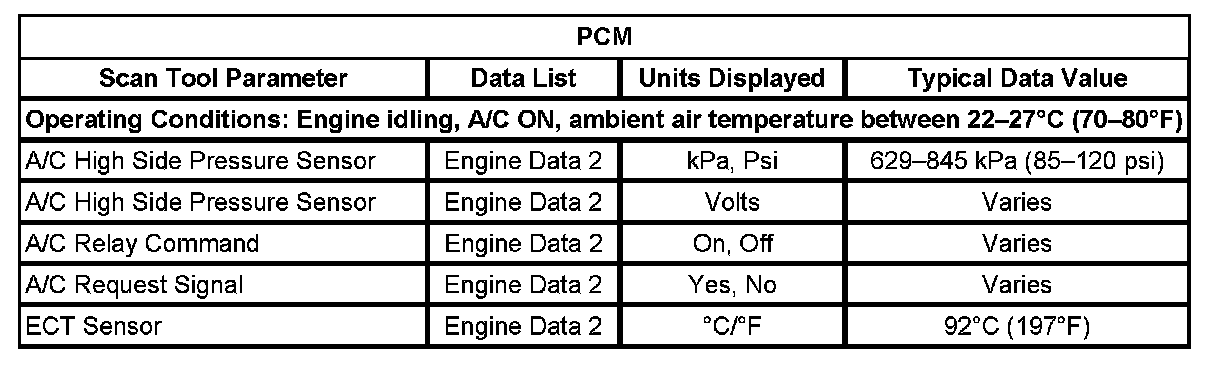

PCM:
