Scan Tool Output Controls

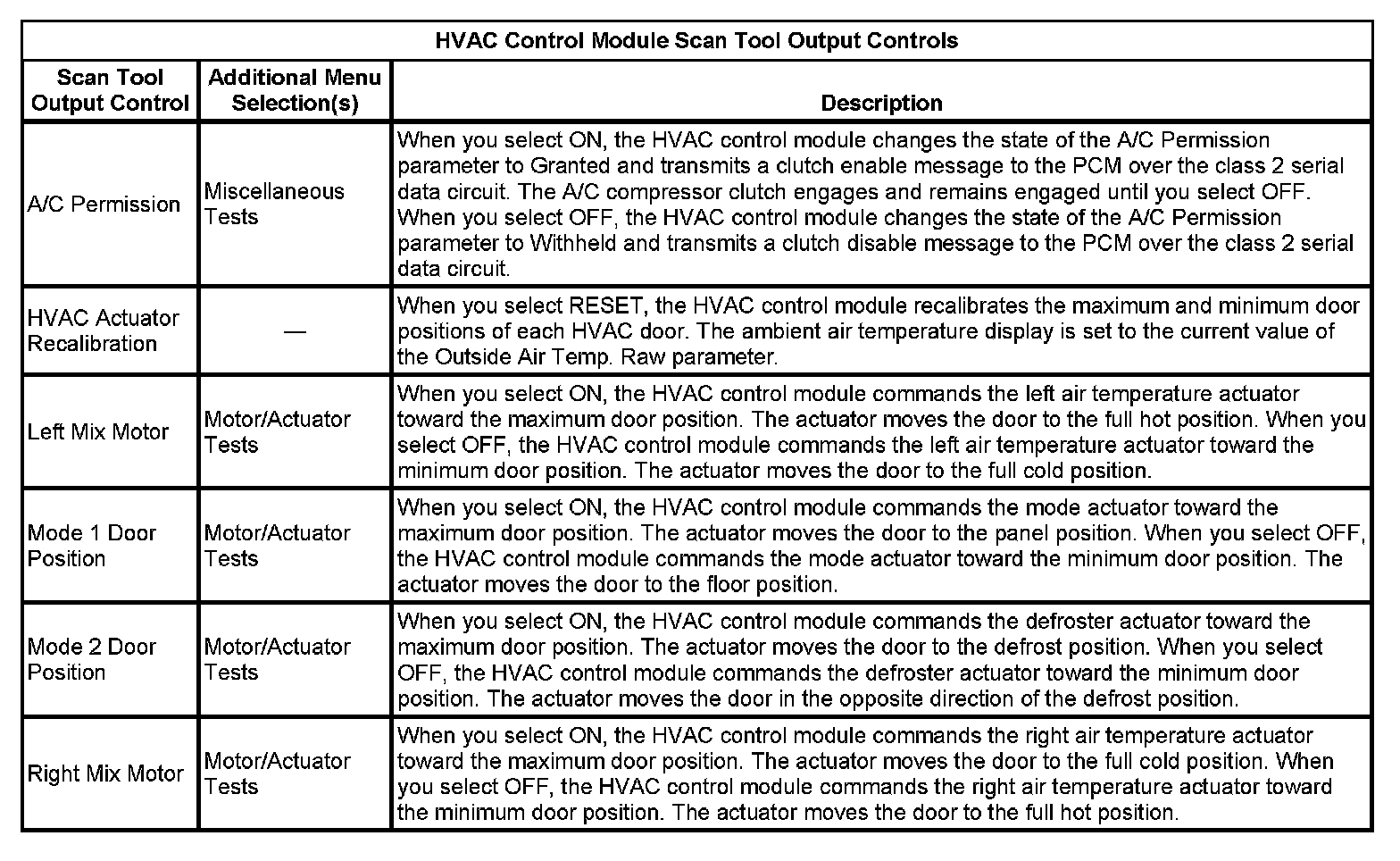

HVAC Control Module Scan Tool Output Controls:

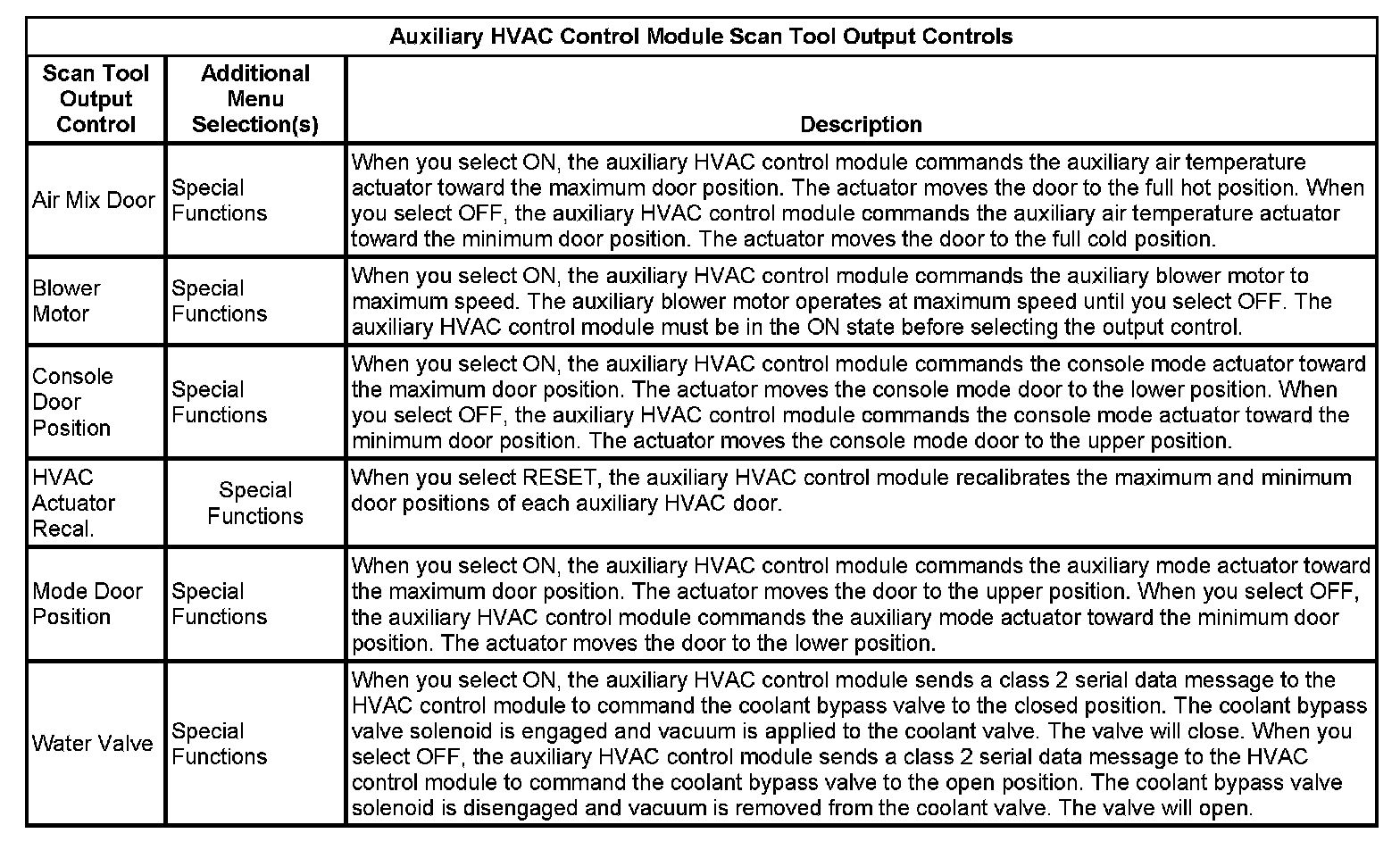

Auxiliary HVAC Control Module Scan Tool Output Controls:

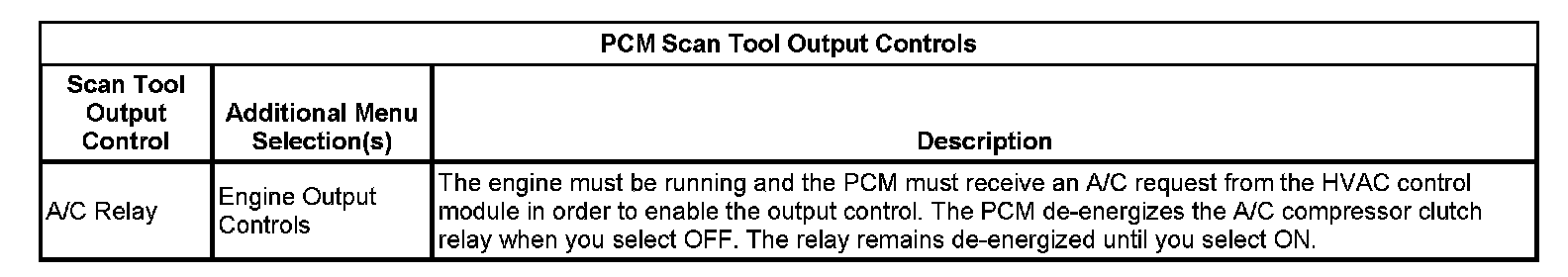

PCM Scan Tool Output Controls:
